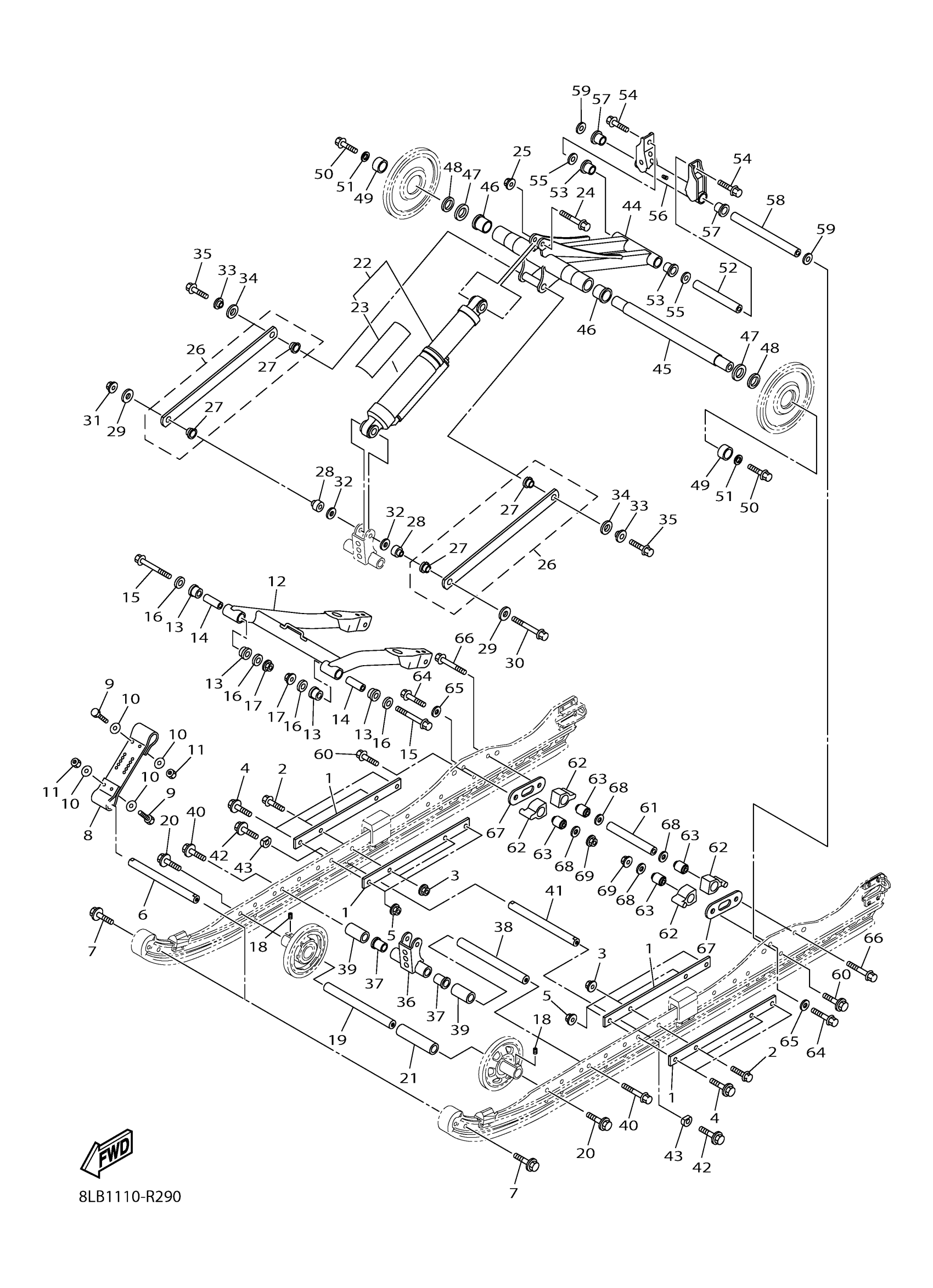

Yamaha RX10XT75HL (APEX XTX 1.75) 8LA2 2017 TRACK SUSPENSION 2 Diagram

#

Description
Price

1

FRAME, SLIDING C

8KL-4741C-00-00

$43.99

2

BOLT, FLANGE

95812-08030-00

$3.81

3

NUT, SELF-LOCKING

95602-08200-00

$3.20

4

BOLT, FLANGE

95817-10030-00

$8.49

5

NUT, S/L FLANGE

95602-10200-00

$4.82

6

SHAFT 4

8GL-47486-00-00

Unavailable

7

BOLT, FLANGE

95817-10030-00

$8.49

8

STOPPER 1

8KM-47495-00-00

Unavailable

9

BOLT, HEXAGON

97017-06025-00

$4.24

10

WASHER, PLATE

90201-06081-00

Unavailable

11

NUT, NYLON

95707-06300-00

$3.50

12

ARM, PIVOT 1

8KM-47331-00-00

$253.99

13

BUSH, SOLID(2WR)

90381-18068-00

$39.99

14

SHAFT 1

8GL-47465-00-00

Unavailable

15

BOLT, FLANGE

90105-10202-00

$7.49

16

WASHER, PLATE

90201-10046-00

Unavailable

17

NUT, S/L FLANGE

95602-10200-00

$4.82

18

BOLT, SET (8K2)

90113-06039-00

Unavailable

19

SHAFT 3

8KL-47485-00-00

Unavailable

20

BOLT, FLANGE

95817-10030-00

$8.49

21

COLLAR

90387-20038-00

Unavailable

22

SHOCK ABSORBER

8KM-47480-00-00

Unavailable

23

LABEL, WARNING

8KM-22259-00-00

Unavailable

24

BOLT, FLANGE

90105-10283-00

Unavailable

25

NUT, S/L FLANGE

95602-10200-00

$4.82

26

RELAY ROD ASSY

8KM-47490-00-00

Unavailable

27

BUSH, SOLID

90381-16002-00

Unavailable

28

COLLAR 2

8HR-47366-00-00

Unavailable

29

WASHER, PLATE

90201-16027-00

Unavailable

30

BOLT, FLANGE

90105-10375-00

Unavailable

31

NUT, S/L FLANGE

95602-10200-00

$4.82

32

WASHER, PLATE

90201-10052-00

Unavailable

33

COLLAR 2

8HR-47366-10-00

Unavailable

34

WASHER, PLATE

90201-16027-00

Unavailable

35

BOLT, FLANGE

95817-10030-00

$8.49

36

BRACKET, ARM PIVOT

8HR-47349-00-00

Unavailable

37

BUSH

90386-20001-00

Unavailable

38

SHAFT 5

8KL-47487-00-00

Unavailable

39

COLLAR

90387-20037-00

Unavailable

40

BOLT, FLANGE

90105-10209-00

Unavailable

41

SHAFT 4

8GL-47486-00-00

Unavailable

42

BOLT, FLANGE

95817-10030-00

$8.49

43

SPACER

8GL-47341-00-00

Unavailable

44

ARM, PIVOT 2

8KM-47332-00-00

Unavailable

45

SHAFT 2

8FU-47475-00-00

Unavailable

46

BUSH, SOLID(8CJ)

90381-28108-00

Unavailable

47

WASHER, PLATE (8V2)

90201-251G8-00

Unavailable

48

WASHER, PLATE(8CJ)

90201-250T6-00

Unavailable

49

COLLAR

90387-25005-00

Unavailable

50

BOLT

90109-10032-00

Unavailable

51

WASHER, PLATE

90201-10039-00

Unavailable

52

SHAFT 6

8KM-47488-20-00

Unavailable

53

BUSH(JA1)

90386-19160-00

Unavailable

54

BOLT, FLANGE

90105-10189-00

Unavailable

55

WASHER, PLATE

90201-10043-00

Unavailable

56

BRACKET 3

8KM-47417-00-00

Unavailable

57

BUSH(JA1)

90386-19160-00

Unavailable

58

SHAFT 3

8FU-47485-00-00

Unavailable

59

WASHER, PLATE

90201-10076-00

Unavailable

60

BOLT, FLANGE

95817-10030-00

$8.49

61

SHAFT 6

8KM-47488-00-00

Unavailable

62

STOPPER 2

8KM-47496-00-00

Unavailable

63

BUSH, REAR SHOCK ABSORBER

4GY-22216-30-00

Unavailable

64

BOLT, FLANGE

90105-10210-00

Unavailable

65

WASHER, PLATE

90201-10043-00

Unavailable

66

BOLT, FLANGE

90105-10029-00

Unavailable

67

PLATE, GUIDE

8KL-47467-00-00

Unavailable

68

WASHER, PLATE

90201-10076-00

Unavailable

69

NUT, S/L FLANGE

95602-10200-00

$4.82
