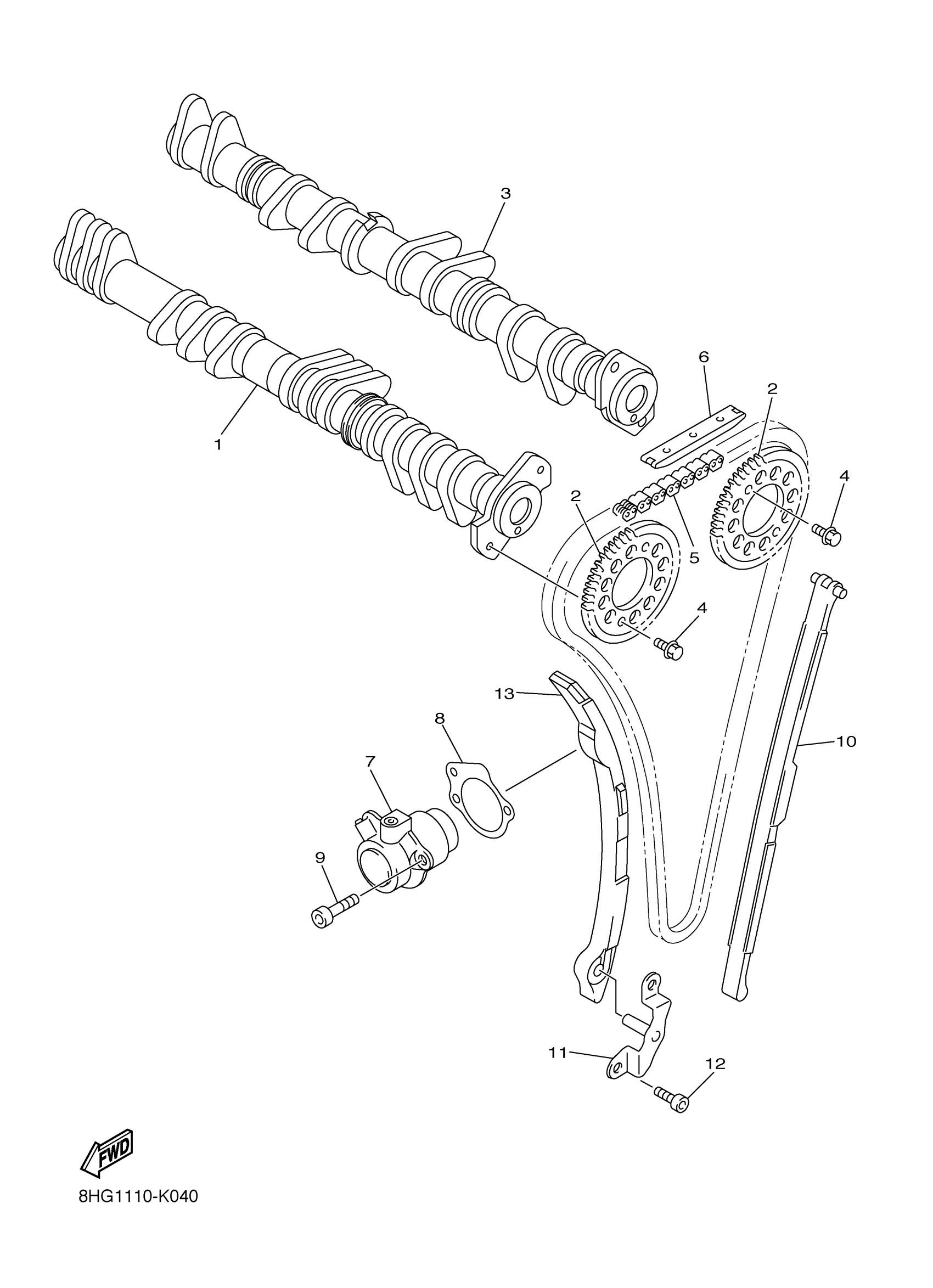

Yamaha RX10XT75HL (APEX XTX 1.75) 8LA2 2017 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT 1

8HG-12171-00-00

Unavailable

2

SPROCKET, CAM CHAIN

8FP-12176-00-00

$83.99

3

CAMSHAFT 2

8FP-12181-00-00

$278.99

4

BOLT, FLANGE

90105-07004-00

$5.60

5

CHAIN

94591-61130-00

$40.99

6

GUIDE, STOPPER 2

5BE-12241-01-00

$29.99

7

TENSIONER ASSY, CAM CHAIN

8HG-12210-01-00

Unavailable

8

GASKET, TENSIONER CASE

14B-12213-00-00

$7.99

9

BOLT,SOCKET

91317-06025-00

$5.60

10

DAMPER, CHAIN 1

4XV-12251-01-00

$60.99

11

PLATE, GUIDE STOPPER 1

8FA-12233-00-00

Unavailable

12

BOLT,SOCKET

91317-06012-00

$8.49

13

DAMPER, CHAIN 2

8FA-12252-00-00

Unavailable
