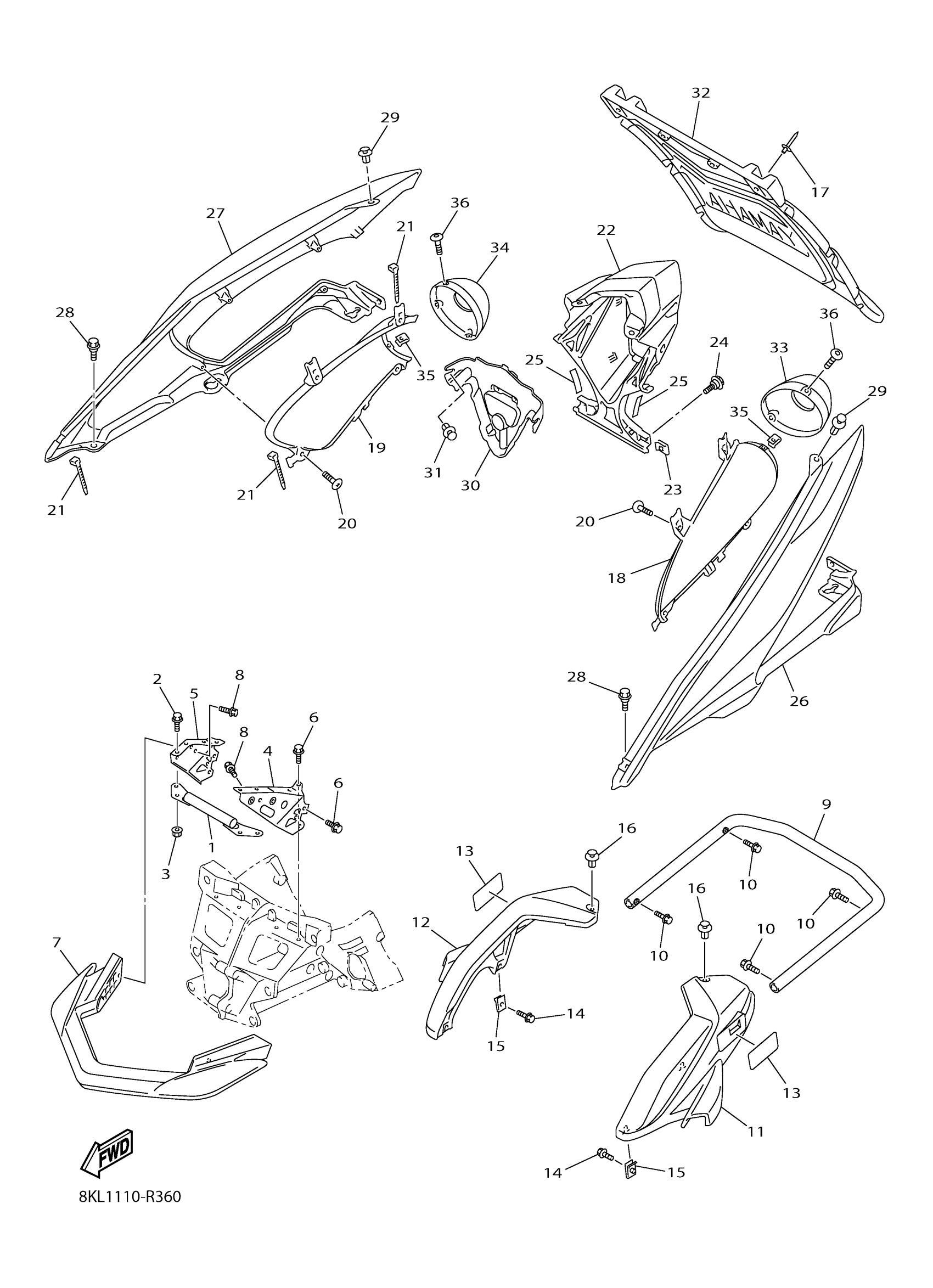

Yamaha RX10XT75HL (APEX XTX 1.75) 8LA2 2017 BUMPER Diagram

#

Description
Price

1

BRKT. ,FR. FOOD

8FP-21979-00-00

$95.99

2

BOLT, FLANGE

95817-06014-00

Unavailable

3

NUT, FLANGE

95702-06500-00

$2.39

4

BRACKET, FRONT

8FA-21949-00-00

$63.99

5

BRACKET, FRONT BUMPER

8FA-21959-00-00

$59.99

6

BOLT, FLANGE

95814-08016-00

$9.49

7

BUMPER, FRONT 1

8FA-77511-01-00

$250.99

8

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

9

BUMPER, REAR 1

8KL-77541-00-00

Unavailable

10

BOLT, FLANGE(8AB)

95817-08020-00

$9.49

11

BUMPER, REAR 2

8HG-77542-00-00

Unavailable

12

BUMPER, REAR 3

8HG-77543-00-00

Unavailable

13

SEAL, BODY SIDE 1

8FT-7814E-00-00

Unavailable

14

BOLT, FLANGE

95817-06016-00

$2.75

15

NUT, SPRING(4ES)

90183-06069-00

Unavailable

16

RIVET

90269-08006-00

Unavailable

17

RIVET, BLIND

90267-47200-00

Unavailable

18

PROTECTOR 1

8HG-77551-00-P0

Unavailable

19

PROTECTOR 2

8HG-77552-00-P0

Unavailable

20

SCREW, TRUSS TAP.

97707-50014-00

Unavailable

21

CLAMP (6E5)

90465-13M11-00

Unavailable

22

COVER, TAILLIGHT

8HG-84516-00-00

Unavailable

23

NUT, SPRING

90183-06100-00

Unavailable

24

BOLT

90109-06220-00

Unavailable

25

DAMPER

8HG-77588-00-00

Unavailable

26

COVER, TAIL 1

8HG-2471K-00-00

Unavailable

27

COVER, TAIL 2

8HG-2472K-00-00

Unavailable

28

BOLT

90109-06220-00

Unavailable

29

RIVET

90269-08006-00

Unavailable

30

BRACKET, TAILLIGHT

8HG-2117E-00-00

Unavailable

31

RIVET

90269-08006-00

Unavailable

32

FLAP

8GT-K7595-00-00

Unavailable

33

CAP

8HG-77517-00-00

Unavailable

34

CAP

8HG-77517-10-00

Unavailable

35

NUT, SPRING

90183-050A6-00

Unavailable

36

BOLT

90111-05003-00

Unavailable
