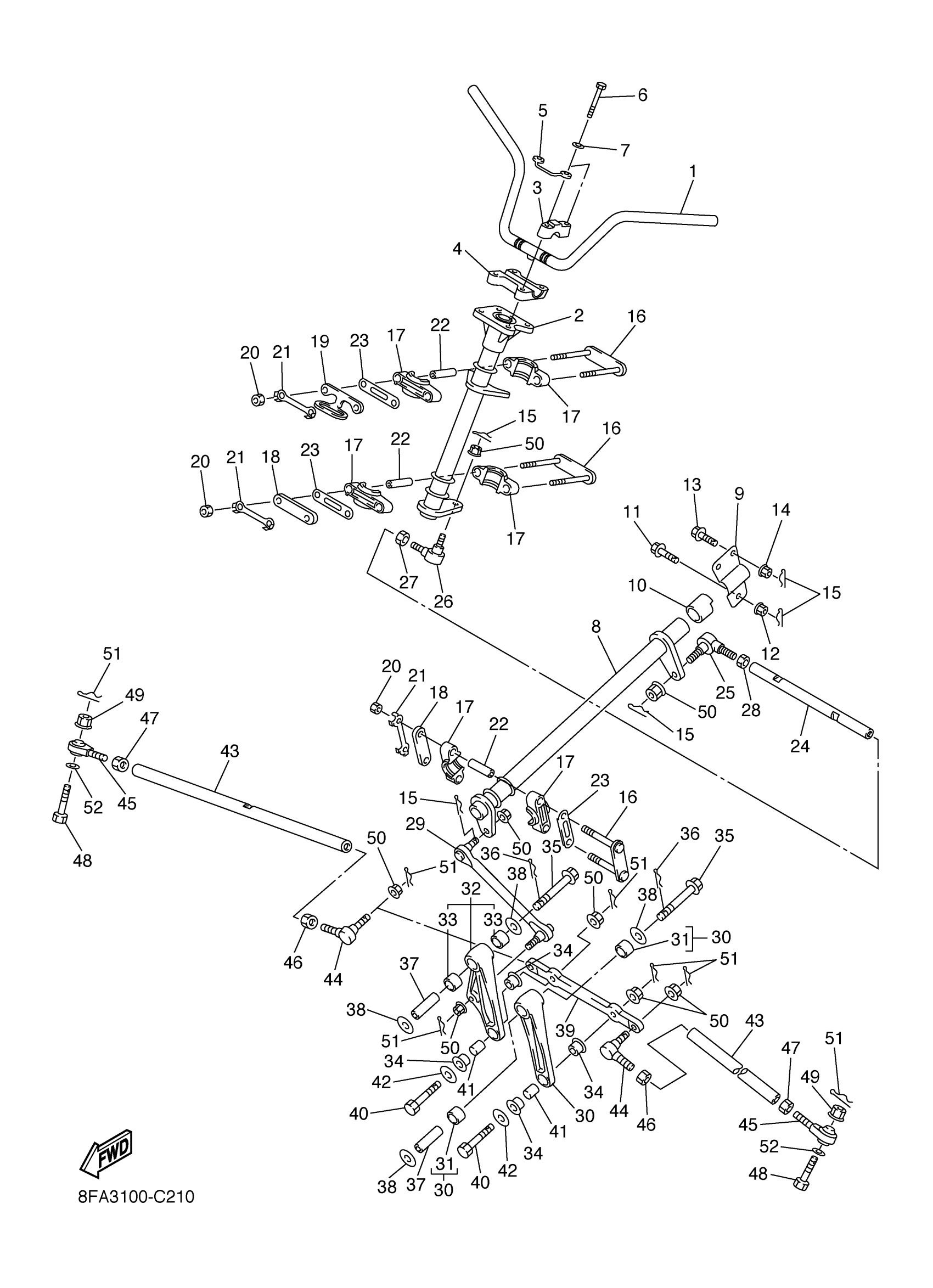

Yamaha RX10SJ (RX-1 LIMITED EDITION) 8EU3 2004 STEERING Diagram
#
1
HANDLE COMP.
8EK-26110-11-00
$64.99
2
COLUMN, STEERING 2
8FA-23813-01-00
Unavailable
3
HOLDER, HANDLE UPPER
1E6-23441-00-00
$27.99
4
HOLDER, HANDLE LOWER
8ED-23442-00-00
Unavailable
5
HOLDER
8DF-23857-00-00
$63.99
6
BOLT, HEXAGON
97017-08055-00
$9.49
7
WASHER(6TA)
92907-08600-00
$3.03
8
COLUMN, STEERING
8FA-23811-00-00
Unavailable
9
COVER, STEERING
8FA-23818-02-00
$8.99
10
BEARING, STEERING UPPER
8FA-23873-01-00
$6.99
11
BOLT, WASHER BASED(4KD)
90105-10728-00
$30.99
12
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
13
BOLT, WASHER BASED(JA1)
90105-08552-00
$2.97
14
NUT, SELF-LOCKING
90185-08169-00
$8.49
15
CLIP 136253750000
90468-12006-00
$8.49
16
HOLDER, BEARING
8FA-23872-00-00
Unavailable
17
PLANE BEARING, STEERING
8FA-23812-00-00
Unavailable
18
HOLDER 2
8FA-23867-00-00
Unavailable
19
HOLDER, BEARING
8CJ-23872-00-00
Unavailable
20
NUT(6TA)
95337-08600-00
Unavailable
21
WASHER, LOCK 1
1UY-23894-01-00
Unavailable
22
COLLAR
90387-09006-00
Unavailable
23
WASHER, PLAIN
8FA-23843-00-00
Unavailable
24
ROD, STEERING
8FA-23828-00-00
Unavailable
25
JOINT, UNIVERSAL 3
8CR-23847-00-00
Unavailable
26
JOINT, UNIVERSAL 2
8CR-23845-10-00
Unavailable
27
NUT (3WP1)
95317-10700-00
Unavailable
28
NUT, HEXAGON (8A5)
90170-10186-00
Unavailable
29
ROD, STEERING RELAY
8FA-23821-00-00
Unavailable
30
ARM PIVOT ASSY
8FG-2389K-00-00
Unavailable
31
BUSH, FORMED
90383-17001-00
Unavailable
32
ARM PIVOT ASSY. , 2
8FA-2389M-00-00
Unavailable
33
BEARING
93317-41785-00
Unavailable
34
BUSH, SOLID
90381-14001-00
Unavailable
35
BOLT, FLANGE
90105-12017-00
Unavailable
36
CLIP, RING
8FA-2384N-00-00
Unavailable
37
COLLAR
8FA-2412G-00-00
Unavailable
38
WASHER, PLATE
90201-121U3-00
Unavailable
39
ARM, IDLER
8FA-23826-00-00
Unavailable
40
BOLT, PIN HOLE (8M6)
90102-10044-00
Unavailable
41
COLLAR
90387-10070-00
Unavailable
42
WASHER PLATE (3L6)
90201-10742-00
Unavailable
43
ROD, TIE
8FA-23831-00-00
Unavailable
44
JOINT, UNIVERSAL 2
8CR-23845-10-00
Unavailable
45
JOINT, UNIVERSAL 3
8FA-23847-00-00
Unavailable
46
NUT (3WP1)
95317-10700-00
Unavailable
47
NUT, HEXAGON (8A5)
90170-10186-00
Unavailable
48
BOLT, PIN HOLE (8M6)
90102-10044-00
Unavailable
49
NUT, NYLON
95707-10300-00
Unavailable
50
NUT, FLANGE(8AB)
95707-10500-00
Unavailable
51
PIN, COTTER
91490-20025-00
Unavailable
52
WASHER PLATE (3L6)
90201-08759-00
Unavailable
