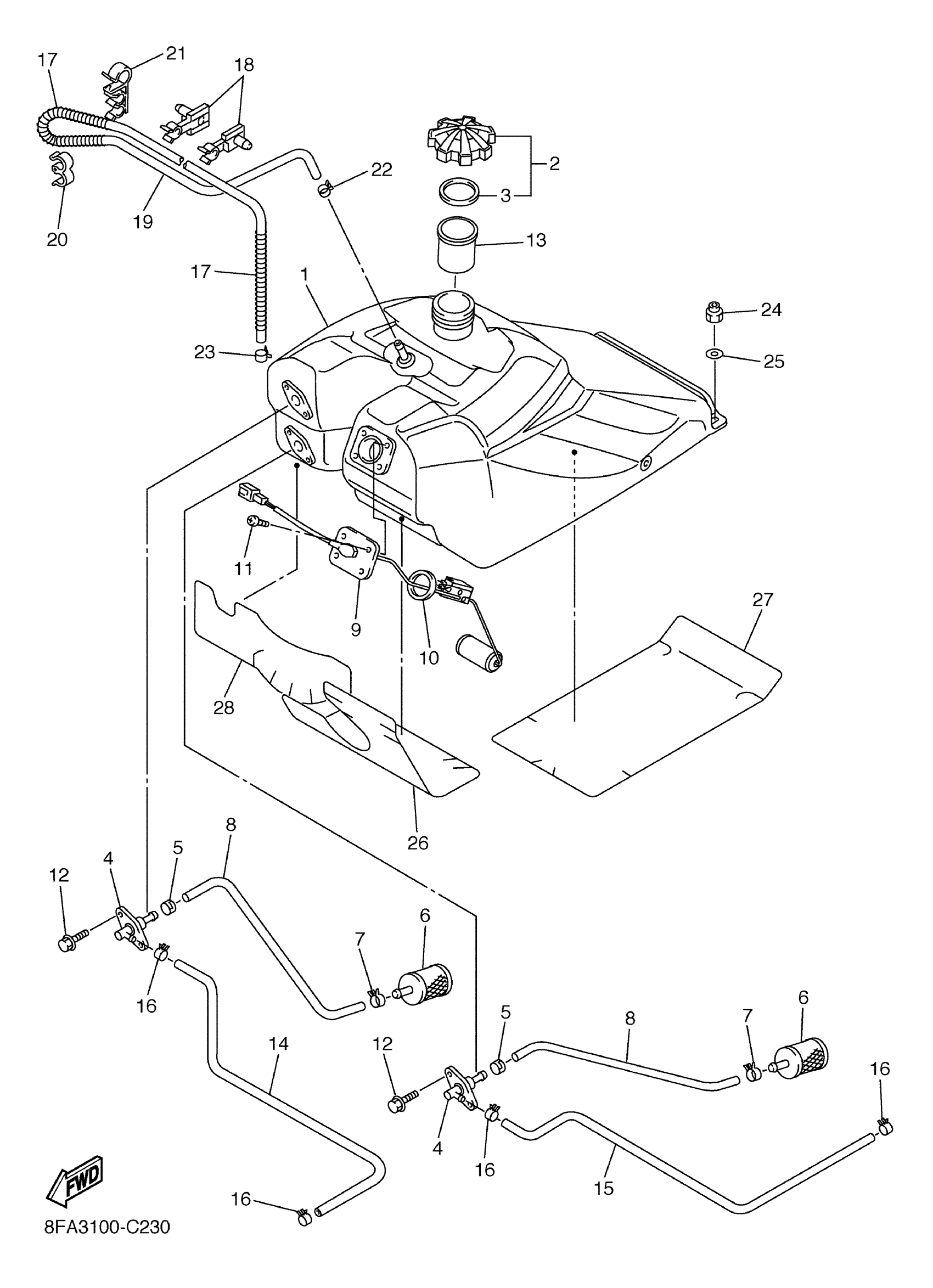

Yamaha RX10SJ (RX-1 LIMITED EDITION) 8EU3 2004 FUEL TANK Diagram

#

Description
Price

1

TANK, FUEL

8FJ-24111-00-00

Unavailable

2

CAP ASSY

8FG-24610-01-00

$34.42

3

GASKET, CAP 1

8HV-24641-00-00

Unavailable

4

SUCTION PIPE COMP. 1

8CR-24301-01-00

Unavailable

5

CLIP

90468-04092-00

$2.36

6

FILTER ASSY

8H5-24560-00-00

$10.74

7

CLIP (7K7)

90467-11044-00

$4.89

8

PIPE, SUCTION 1

8FA-24335-01-00

Unavailable

9

SENDER UNIT ASSY, FUEL METER

8FG-85752-02-00

Unavailable

10

O-RING (102)

93210-41041-00

$5.47

11

SCREW, BINDING

98907-05008-00

$1.48

12

BOLT, FLANGE

95817-06016-00

$1.40

13

TUBE, FILLER

8FG-24114-00-00

Unavailable

14

PIPE, FUEL 1

8ET-24311-00-00

Unavailable

15

PIPE, FUEL 1

8ET-24311-10-00

Unavailable

16

CLIP (7K7)

90467-11044-00

$4.89

17

SPRING, COMPRESSION (10L)

90501-08668-00

Unavailable

18

CLAMP

90464-09015-00

Unavailable

19

TUBE, FLEXIBLE VINYL(8AT)

91A20-05145-00

Unavailable

20

CLAMP(4HM)

90464-13194-00

Unavailable

21

CLAMP

90464-16010-00

Unavailable

22

CLIP (2A6)

90468-02078-00

Unavailable

23

CLIP (8A1)

90467-09026-00

Unavailable

24

NUT, NYLON

95717-08300-00

Unavailable

25

WASHER, PLATE (3L7)

90201-08784-00

Unavailable

26

PROTECTOR, FUEL TANK

8FA-24141-00-00

Unavailable

27

PROTECTOR, FUEL TANK

8FA-24141-10-00

Unavailable

28

INSULATOR, FUEL TANK 1

8FA-2416F-00-00

Unavailable
