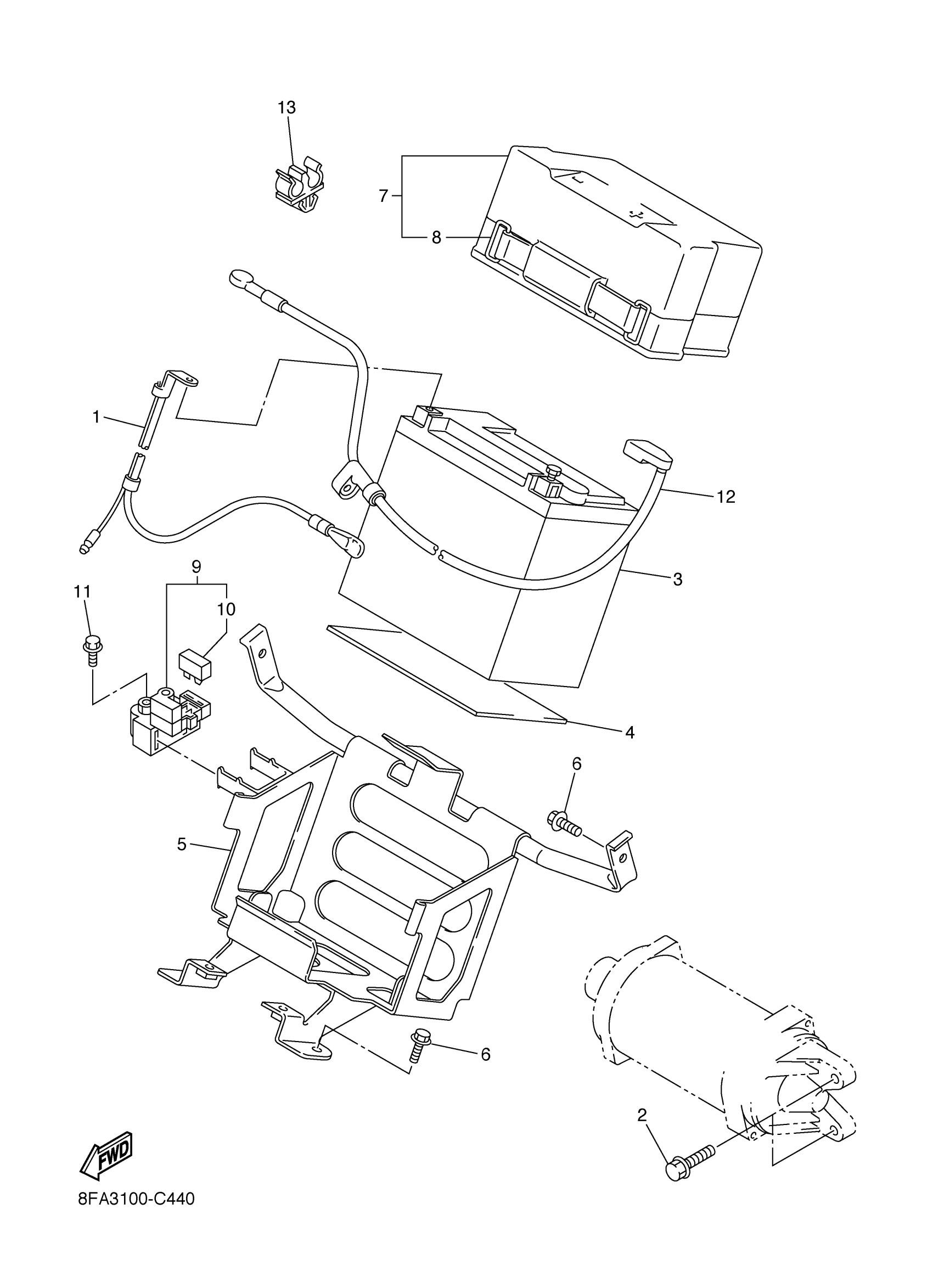

Yamaha RX10SJ (RX-1 LIMITED EDITION) 8EU3 2004 ELECTRICAL 2 Diagram

WIRE, MINUS LEAD

8FG-82116-00-00

$55.99

BOLT, FLANGE(6TA)

95817-08030-00

$8.49

BATTERY ASSY (YUASA YTX20L-BS)

YTX-20LBS-00-00

Unavailable

SEAT, BATTERY

8FA-82122-00-00

Unavailable

BRACKET, BATTERY

8FA-2199G-00-00

Unavailable

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

COVER, BATTERY

8FA-82129-00-00

$41.99

BAND, BATTERY

8DM-82131-10-00

$16.49

STARTER RELAY ASSY (RC19-003)

4DN-81940-12-00

$149.99

FUSE (12V 30A)

1AE-82151-00-00

$7.99

BOLT, SMALL FLANGE

95027-06008-00

$7.99

WIRE, PLUS LEAD

8FA-82115-01-00

Unavailable

CLAMP(87A)

90464-08126-00

$1.54
