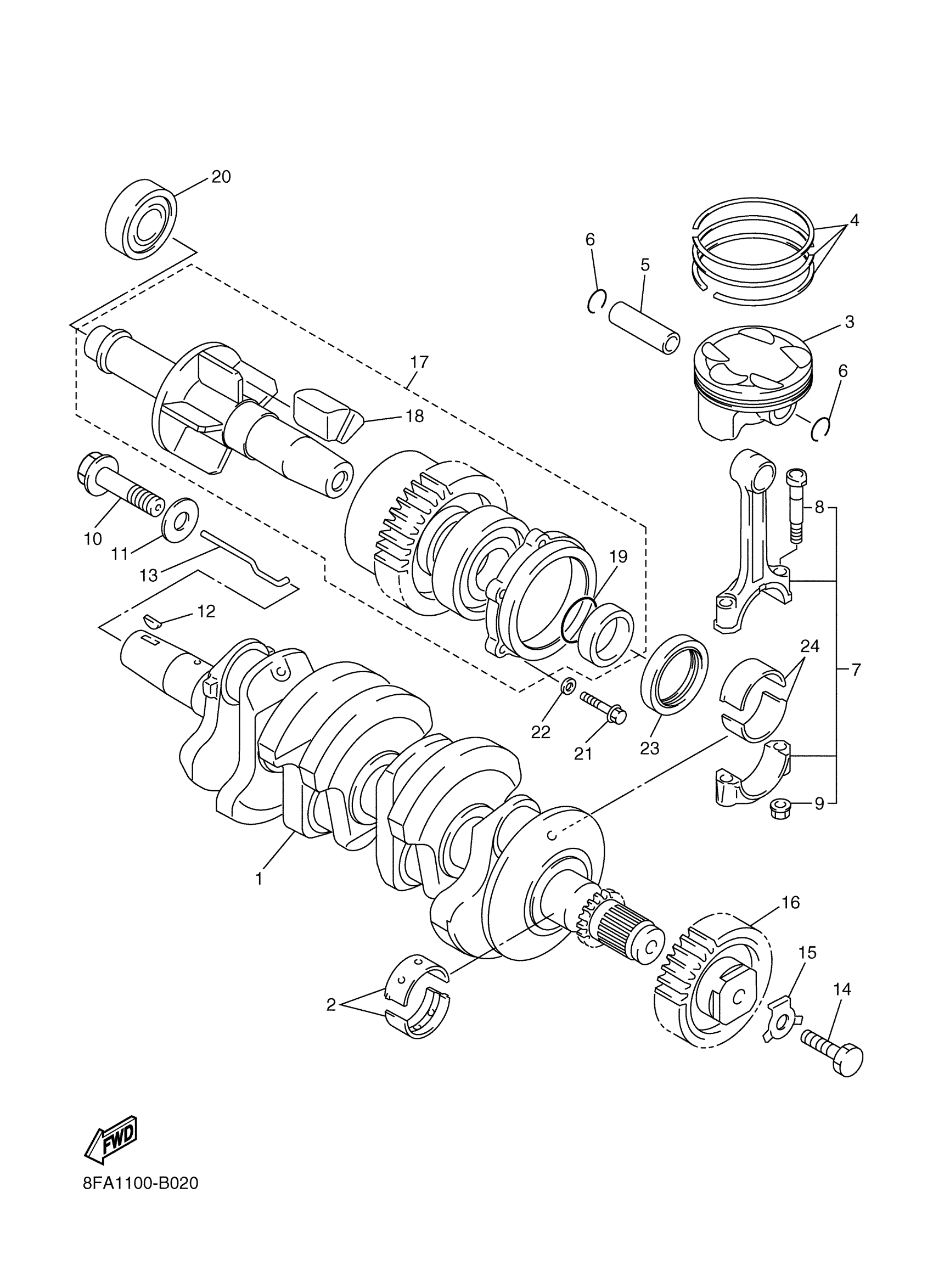

Yamaha RX10SJ (RX-1 LIMITED EDITION) 8EU3 2004 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT

8FA-11411-00-00

Unavailable

2

PLANE BEARING, CRANKSHAFT 1

8FA-11416-00-00

$19.49

2

PLANE BEARING, CRANKSHAFT 1

8FA-11416-10-00

$20.99

2

PLANE BEARING, CRANKSHAFT 1

8FA-11416-20-00

$19.99

2

PLANE BEARING, CRANKSHAFT 1

8FA-11416-A0-00

$22.99

2

PLANE BEARING, CRANKSHAFT 1

8FA-11416-B0-00

$22.99

3

PISTON (STD)

4XV-11631-10-00

$133.99

4

PISTON RING SET (STD)

5LV-11603-00-00

$76.99

5

PIN, PISTON

4XV-11633-00-00

$28.99

6

CLIP (1J7)

90468-12069-00

$9.49

7

CONNECTING ROD ASSY

5PW-11650-00-00

Unavailable

8

BOLT, CONNECTING ROD

5JW-11654-00-00

$5.49

9

NUT (11H)

90179-08327-00

$9.49

10

BOLT, WASHER BASED

90105-12005-00

$29.99

11

WASHER (838)

90201-12191-00

$7.49

12

KEY, WOODRUFF (26H)

90280-05029-00

Unavailable

13

SHAFT 1

5JW-11455-00-00

Unavailable

14

BOLT

90101-10009-00

Unavailable

15

WASHER, LOCK

90215-10001-00

Unavailable

16

GEAR, PRIMARY DRIVE

8FA-16111-01-00

Unavailable

17

SHAFT ASSY

8FA-11406-00-00

Unavailable

18

ABSORBER 1

8FP-16155-00-00

Unavailable

19

O-RING(36Y)

93210-30660-00

Unavailable

20

BEARING

93306-27209-00

Unavailable

21

BOLT, FLANGE

95817-06025-00

Unavailable

22

GASKET (4V2)

90430-06166-00

Unavailable

23

OIL SEAL

93102-40009-00

Unavailable

24

PLANE BEARING, CONNECTING ROD

3GM-11656-00-00

Unavailable

24

PLANE BEARING, CONNECTING ROD

3GM-11656-10-00

Unavailable

24

PLANE BEARING, CONNECTING ROD

3GM-11656-A0-00

Unavailable

24

PLANE BEARING, CONNECTING ROD

3GM-11656-B0-00

Unavailable
