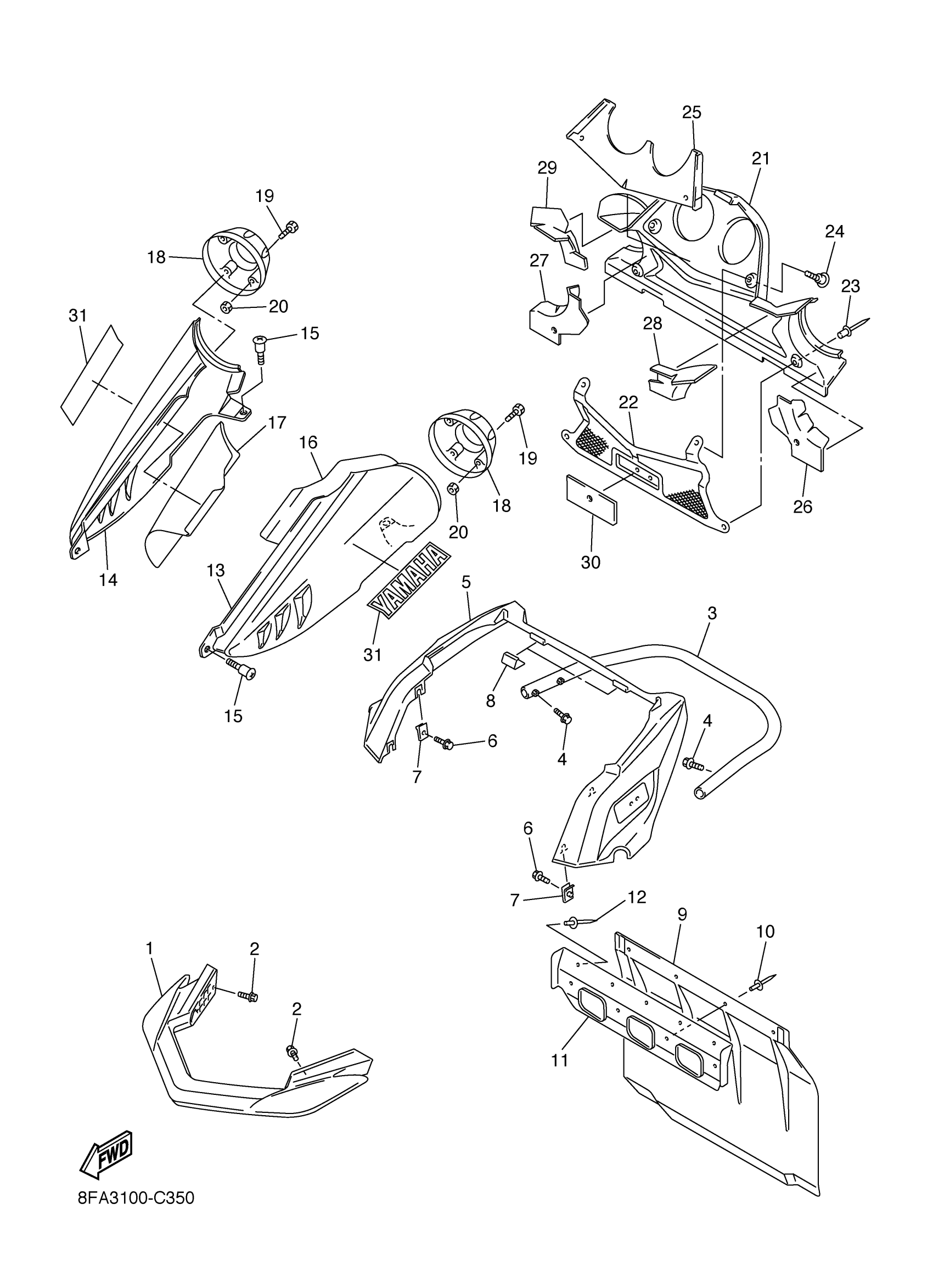

Yamaha RX10SJ (RX-1 LIMITED EDITION) 8EU3 2004 BUMPER Diagram
#
1
BUMPER, FRONT 1
8FA-77511-01-00
$250.99
2
BOLT, FLANGE(JN5)
95817-08016-00
$5.49
3
BUMPER, REAR 1
8FA-77541-01-00
Unavailable
4
BOLT, FLANGE(8AB)
95817-08020-00
$9.49
5
BUMPER, REAR 2
8FA-77542-00-00
Unavailable
6
BOLT, FLANGE
95817-06016-00
$2.75
7
NUT, SPRING(4ES)
90183-06069-00
Unavailable
8
TAPE 4
8FA-7717H-00-00
$1.25
9
FLAP
8GT-K7595-00-00
Unavailable
10
RIVET, BLIND(8CH)
90267-47187-00
$2.34
11
STOPPER, FLAP
8FA-77596-00-00
Unavailable
12
RIVET, BLIND(3JB)
90267-48095-00
$9.49
13
PROTECTOR 1
8FA-77551-A0-33
$217.99
13
PROTECTOR 1
8FA-77551-A0-33
$217.99
13
PROTECTOR 1
8FA-77551-A0-P0
Unavailable
14
PROTECTOR 2
8FA-77552-A0-33
Unavailable
14
PROTECTOR 2
8FA-77552-A0-33
Unavailable
14
PROTECTOR 2
8FA-77552-A0-P0
Unavailable
15
SCREW, BINDING
90154-06009-00
Unavailable
16
LINING, SHROUD 1
8FA-77261-00-00
Unavailable
17
LINING, SHROUD 2
8FA-77262-00-00
Unavailable
18
CAP
8FA-77517-10-00
Unavailable
19
BOLT,SOCKET HEAD
91314-06014-00
Unavailable
20
NUT(6TA)
95317-06600-00
Unavailable
21
COVER, TAILLIGHT
8FA-84516-00-00
Unavailable
22
PROTECTOR 3
8FA-77553-00-00
Unavailable
23
RIVET, BLIND(8CH)
90267-47187-00
$2.34
24
SCREW, BINDING
90154-06009-00
Unavailable
25
LINING, SHROUD 3
8FA-77263-00-00
Unavailable
26
LINING, SHROUD 4
8FA-77264-00-00
Unavailable
27
LINING, SHROUD 5
8FA-77265-00-00
Unavailable
28
LINING, SHROUD 6
8FA-77266-00-00
Unavailable
29
LINING, SHROUD 7
8FA-77267-00-00
Unavailable
30
LINING, SHROUD 8
8FA-77268-00-00
Unavailable
31
EMBLEM, YAMAHA
99244-00160-00
Unavailable
31
EMBLEM, YAMAHA
99246-00160-00
Unavailable
31
EMBLEM, YAMAHA
99246-00160-00
Unavailable
