- RX10SJ (RX-1 LIMITED EDITION) 8EU3 2004
ALTERNATE REVERSE GEAR KIT

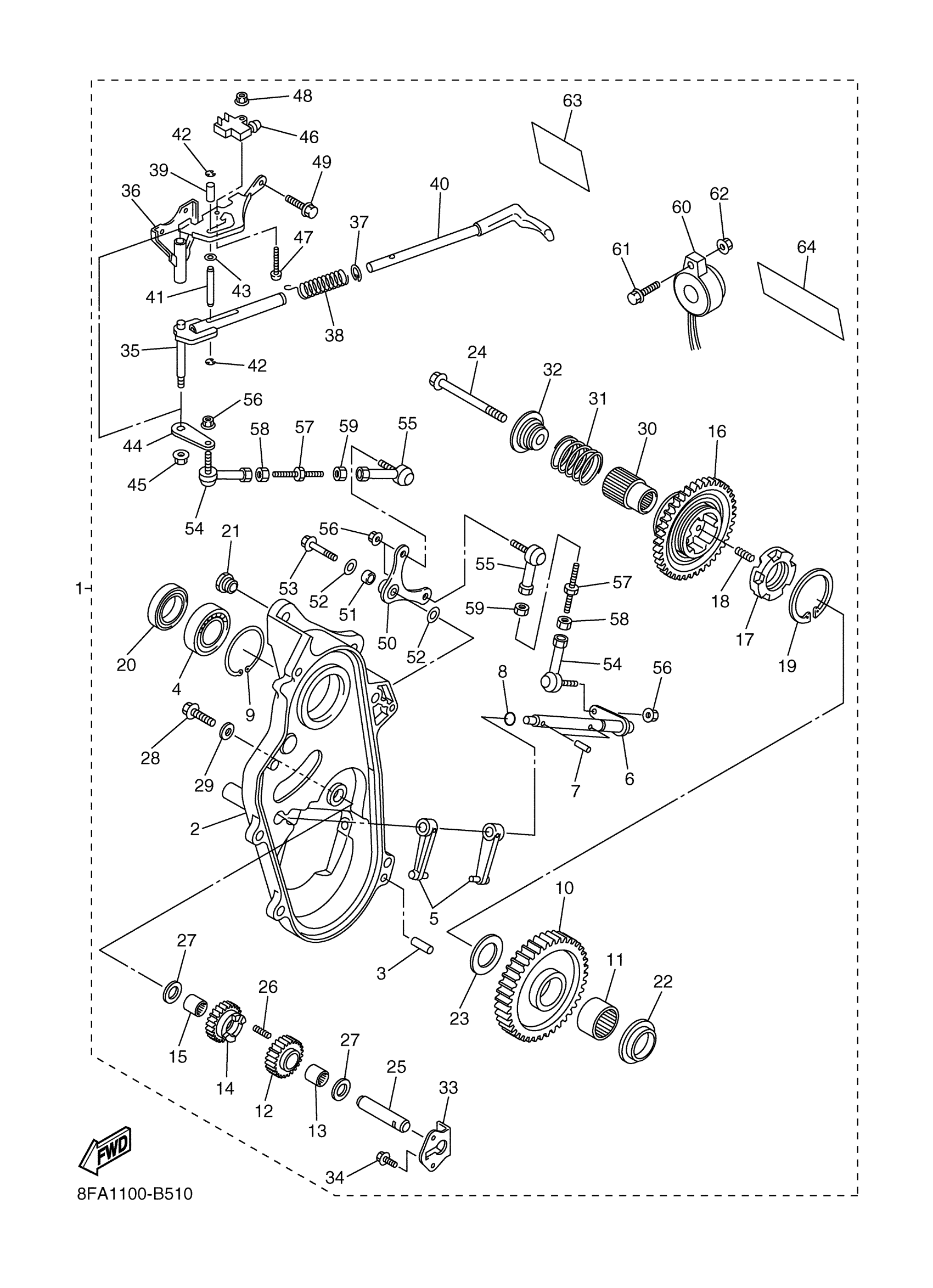

Yamaha RX10SJ (RX-1 LIMITED EDITION) 8EU3 2004 ALTERNATE REVERSE GEAR KIT Diagram
#
1
REVERSE GEAR KIT
8FA-W4759-10-00
Unavailable
2
CAP, HOUSING
8ER-47543-01-00
Unavailable
3
PIN, DOWEL (168)
93606-20044-00
$3.55
4
BEARING
93306-20532-00
$66.99
5
FORK, SHIFT 1
8GL-18511-01-00
$45.99
6
SHAFT
8ER-18197-10-00
Unavailable
7
PIN, SPRING(8DA)
91609-50022-00
$8.49
8
O-RING (328)
93210-12131-00
$8.49
9
CIRCLIP(26H)
99009-52500-00
$12.49
10
SPROCKET, CHAIN DRIVEN
8FB-47587-80-00
$181.99
11
BEARING, CYLINDRICAL(8DA)
93317-33179-00
$48.99
12
SPROCKET, DRIVE
8FB-17692-00-00
$90.99
13
BEARING, CYLINDRICAL(8DA)
93317-21578-00
$45.99
14
REVERSE GEAR SUB-ASSY 1 (RGEAR
8CW-W1714-00-00
$252.99
15
BEARING, CYLINDRICAL(8DA)
93317-21578-00
$45.99
16
GEAR, REVERSE WHEEL 1
8CW-17243-00-00
Unavailable
17
DOG, TRANSMISSION SHIFT
8CW-17492-00-00
Unavailable
18
SPRING, COMPRESSION(8DA)
90501-066J5-00
Unavailable
19
CIRCLIP(8DA)
93440-39175-00
Unavailable
20
OIL SEAL
93102-35010-00
Unavailable
21
NUT(8CJ)
90179-10679-00
Unavailable
22
COLLAR(8DA)
90387-2008G-00
Unavailable
23
WASHER, PLATE(8DA)
90201-320S3-00
Unavailable
24
BOLT, FLANGE(7LU)
95817-10070-00
Unavailable
25
SHAFT, 1
8CW-1761A-00-00
Unavailable
26
SPRING COMPRESSION278185450000
90501-06022-00
Unavailable
27
WASHER PLATE (3L6)
90201-16245-00
Unavailable
28
BOLT, FLANGE
95817-06016-00
Unavailable
29
WASHER, SEAL (7G5)
90210-06006-00
Unavailable
30
JOURNAL 1
8CW-47571-00-00
Unavailable
31
SPRING, COMPRESSION(8FA1)
90501-260A0-00
Unavailable
32
COLLAR
8CW-47564-01-00
Unavailable
33
PLATE
8CW-47591-00-00
Unavailable
34
BOLT, FLANGE
95817-06016-00
Unavailable
35
ARM, SHIFT
8ER-18112-01-00
Unavailable
36
GUIDE, PLATE STOPPER
8ER-18161-00-00
Unavailable
37
CIRCLIP(13H)
99009-18400-00
Unavailable
38
SPRING, COMPRESSION (8FA1)
90501-130A0-00
Unavailable
39
COLLAR (8FA1)
90387-06059-00
Unavailable
40
KNOB, LEVER
8ER-18174-00-00
Unavailable
41
PIN (8FA1)
90249-06002-00
Unavailable
42
CIRCLIP (J10)
93410-06053-00
Unavailable
43
WASHER, PLATE (8U7)
90201-067F9-00
Unavailable
44
PLATE, SHIFT ARM
8ER-1811A-01-00
Unavailable
45
NUT,SELF-LOCKING
95607-06200-00
Unavailable
46
SWITCH
J51-82817-00-00
Unavailable
47
SCREW, BINDING
98907-04020-00
Unavailable
48
NUT, U (7LY)
95617-04100-00
Unavailable
49
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
50
LEVER
8ER-18198-00-00
Unavailable
51
COLLAR
90387-06197-00
Unavailable
52
WASHER, PLATE(36Y)
90201-063J2-00
Unavailable
53
BOLT, FLANGE
95817-06030-00
Unavailable
54
JOINT, UNIVERSAL 2
J45-23845-00-00
Unavailable
55
JOINT 2
88T-18157-00-00
Unavailable
56
NUT,SELF-LOCKING
95607-06200-00
Unavailable
57
ROD, SHIFT
26H-18115-00-00
Unavailable
58
NUT, HEXAGON
95314-06600-00
Unavailable
59
NUT (2H9)
90170-06228-00
Unavailable
60
BUZZER
8CW-83383-00-00
Unavailable
61
BOLT(3JK)
97027-05020-00
Unavailable
62
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
63
LABEL, WARNING 3
8ER-77763-E0-00
Unavailable
64
LABEL, WARNING 1
8FB-77761-E0-00
Unavailable
