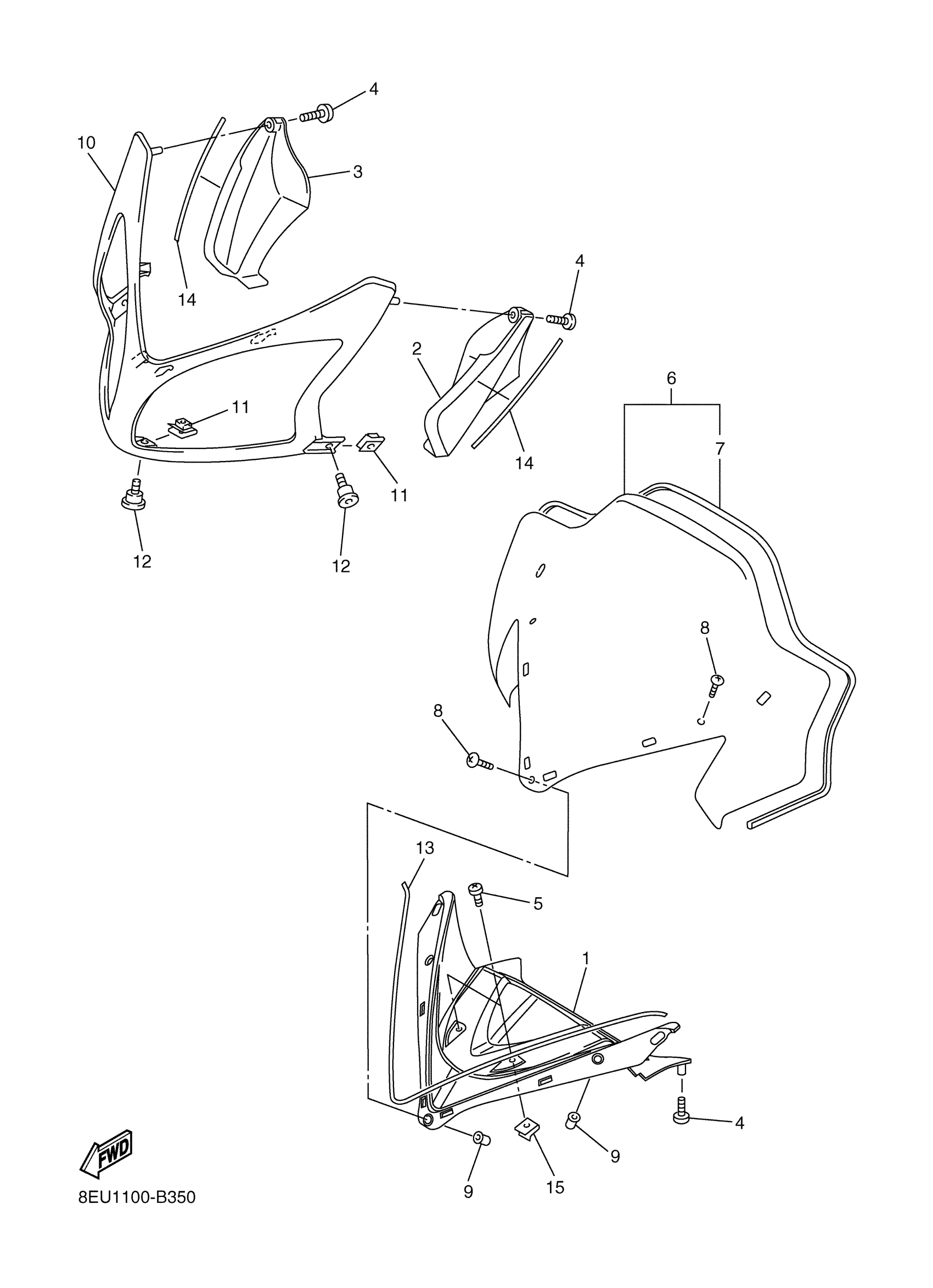

Find the part on the Windshield diagram for your 2003 Yamaha RX-1 LE (RX10SH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2003 Yamaha RX-1 LE (RX10SH) Windshield Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, HEADLIGHT

8FA-77251-01-00

1

$230.71

In stock

2

PLATE 1

8FA-77185-00-00

1

$46.40

In stock

3

PLATE 2

8FA-77186-00-00

1

$46.37

In stock

4

SCREW, TAPPING(4MV)

97707-50016-00

1

$1.16

In stock

5

SCREW, BINDING

98907-06014-00

1

$5.60

In stock

6

WINDSHIELD

8FA-K7210-10-00

1
Out of stock

7

. TRIM, UPPER

8FA-K7213-00-00

1
Out of stock

8

SCREW, ROUND HEAD(1UX)

90150-05024-00

1

$2.85

In stock

9

NUT(1KT)

90179-05523-00

1

$4.33

In stock

10

FAIRING

8FA-77231-A0-P1

1
Out of stock

11

NUT, SPRING(4ES)

90183-06069-00

1

$5.93

In stock

12

SCREW(2XF)

90149-06263-00

1
Out of stock

13

TRIM, LOWER

8FA-77214-00-00

1

$2.92

In stock

14

TRIM 3

8FA-77215-00-00

1

$1.54

In stock

15

NUT, SPRING(4ES)

90183-06069-00

1

$5.93

In stock
