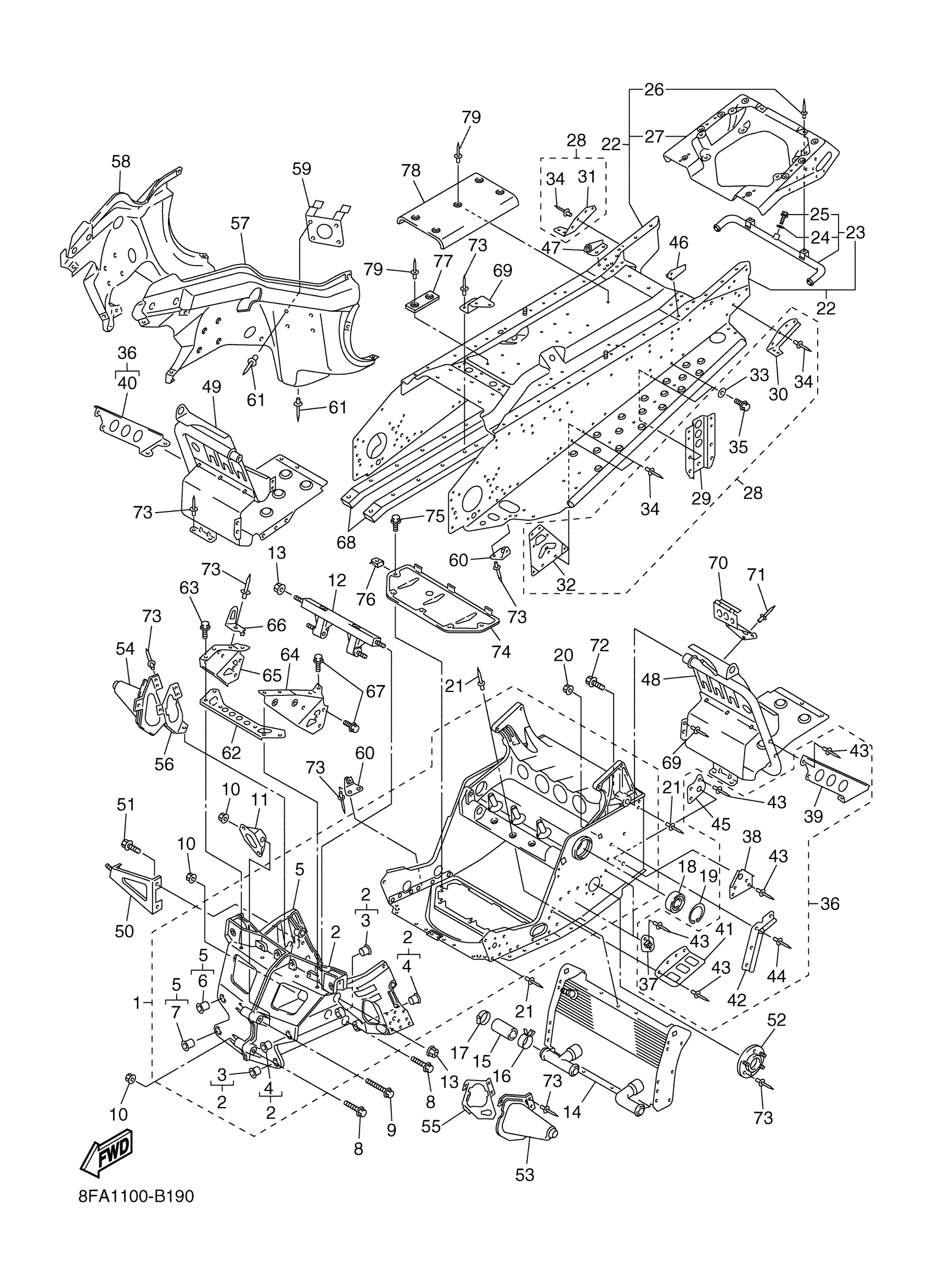

2003 Yamaha RX-1 LE (RX10SH) Frame Diagram
Find the part on the Frame diagram for your 2003 Yamaha RX-1 LE (RX10SH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
FRONT FRAME COMP.
99999-03543-00
14
HEAT EXCHANGER ASSY
8FA-12440-00-00
17
HOSE CLAMP ASSY
90450-35001-00
28
PANEL, SUB-FRAME KIT
8FA-W2196-00-00
32
. PATCH 5
8FA-21965-00-00
36
FRAME CONNECTION KIT
8FA-W2195-00-00
41
. COVER 2
8FA-2198G-00-00
48
FOOTREST COMP. 1
8FG-21960-00-00
49
FOOTREST COMP. 2
8FG-21970-00-00
53
COVER 1
8FA-2198F-00-00
56
PLATE, STRG BRACKET 2
8FA-2195F-00-00
68
PROTECTOR, FRAME
8FA-21978-00-00
74
PROTECTOR, FRAME
8FA-2197E-01-00
