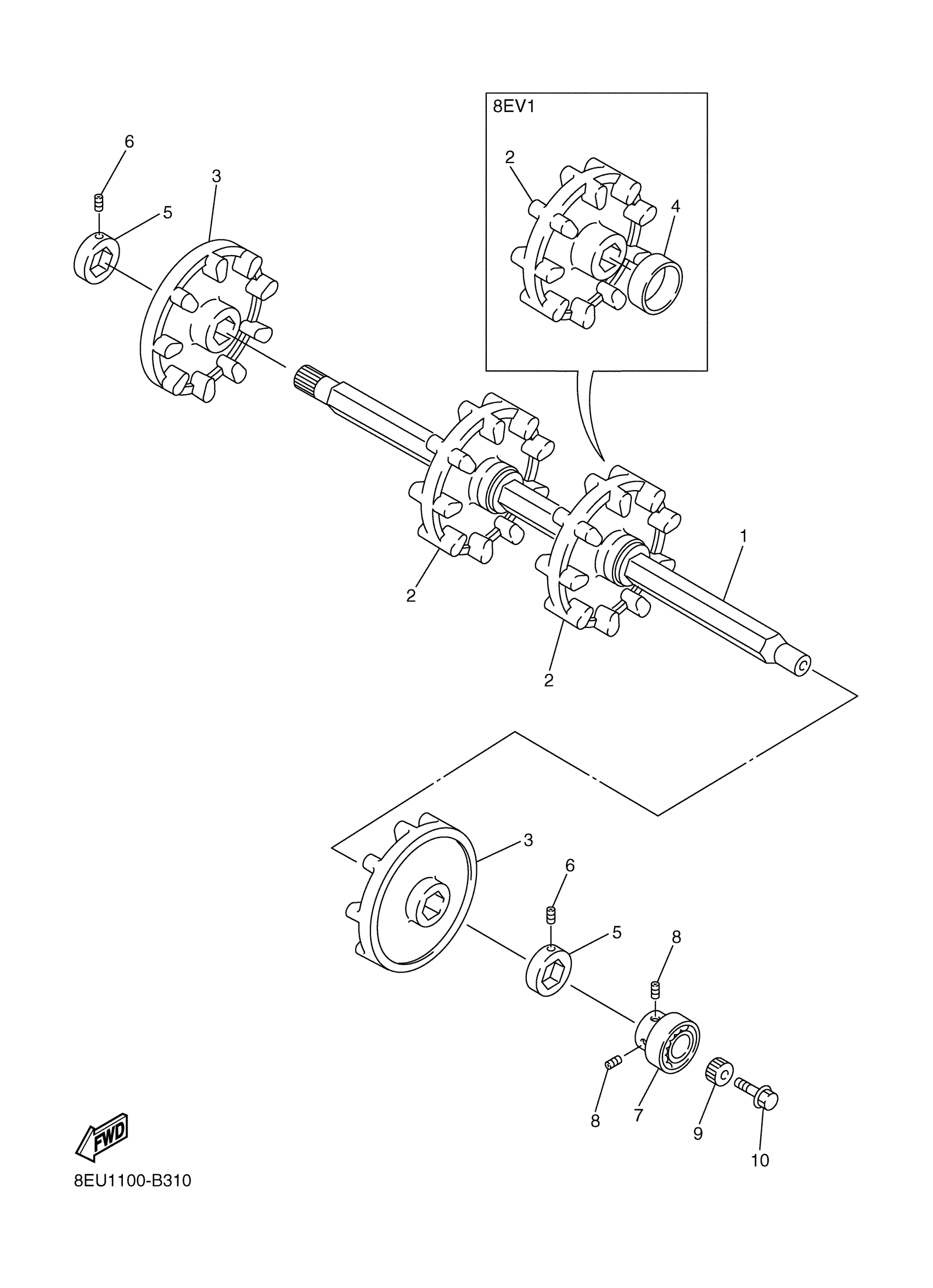

Yamaha RX10SH (RX-1 LE) 8EU1 2003 TRACK DRIVE 1 Diagram

#

Description
Price

1

AXLE, FRONT

8FA-47511-00-00

$276.99

2

WHEEL, SPROCKET 1

8BF-47531-00-00

Unavailable

2

WHEEL, SPROCKET 1

8CM-47531-10-00

$145.99

3

WHEEL, SPROCKET 2

8BW-47532-10-00

$122.99

3

WHEEL, SPROCKET 2

8DP-47532-00-00

Unavailable

4

COLLAR(83R)

90387-514Y2-00

$20.99

5

COLLAR

8BW-47526-00-00

$59.99

6

BOLT, SET (8K2)

90113-06039-00

$9.49

7

BEARING(8CJ)

93306-20589-00

$59.99

8

BOLT, SET

90113-06006-00

$4.29

9

JOINT

8EK-47715-00-00

$35.99

10

BOLT, FLANGE(3GD)

95817-10025-00

$8.49
