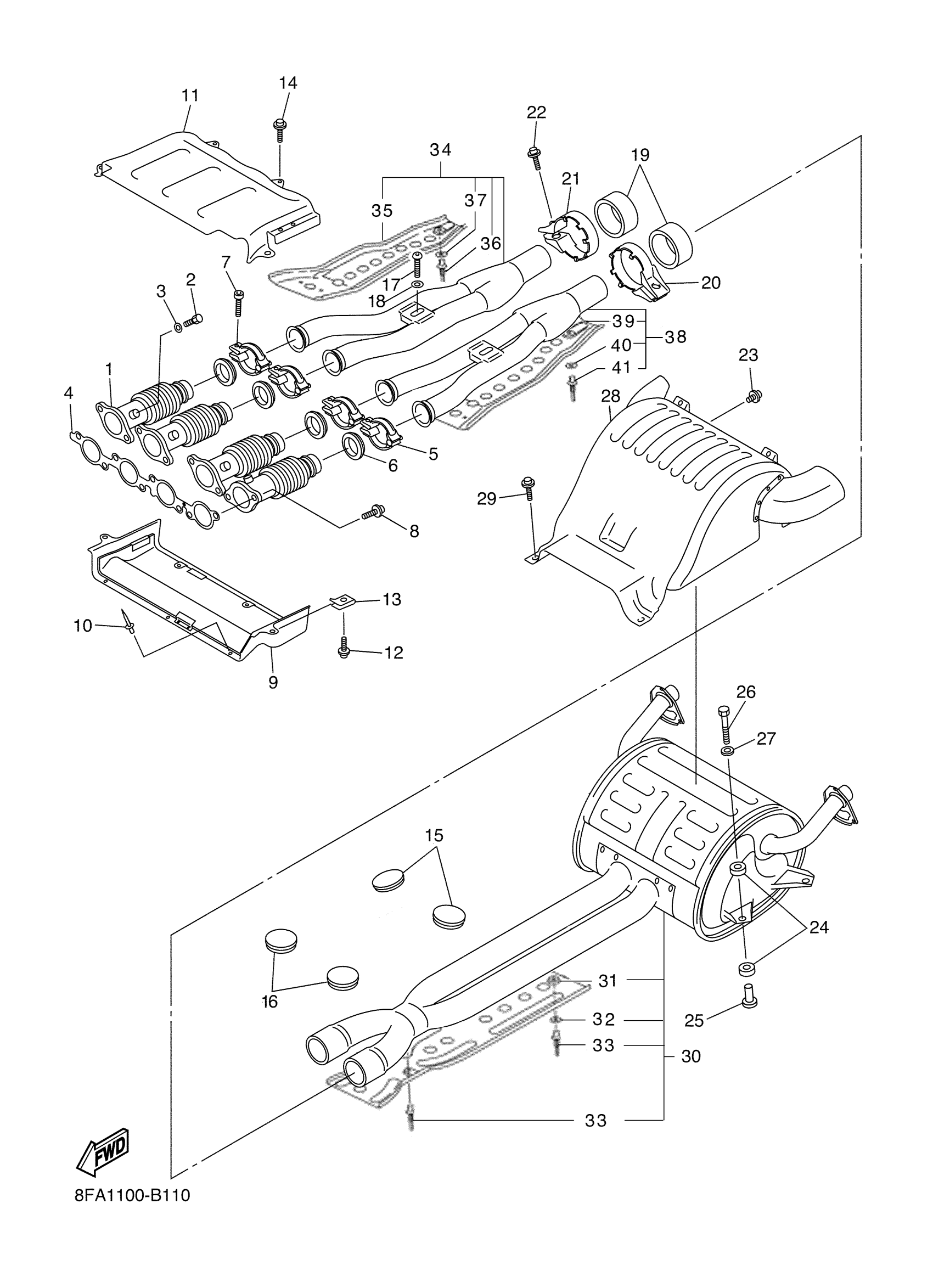

Yamaha RX10SH (RX-1 LE) 8EU1 2003 EXHAUST Diagram
#
1
JOINT, EXHAUST 1
8FU-14615-01-00
$182.99
2
BOLT (FJ1)
97080-06008-00
$2.34
3
WASHER, PLAIN (646)
92990-06600-00
$2.80
4
GASKET, EXHAUST PIPE
8FA-14613-00-00
$27.99
5
BAND, MUFFLER
8FA-14715-00-00
$37.99
6
GASKET, EXHAUST PIPE
99999-03989-00
$31.99
7
BOLT, HEXAGON SOCKET HEAD(1VJ)
90110-06138-00
$5.60
8
BOLT, SMALL FLANGE
95027-08020-00
$8.49
9
COVER, EXHAUST
8FU-14627-10-00
Unavailable
10
RIVET, BLIND
90267-47195-00
$3.88
11
EXHAUST COVER ASS'Y
8FP-14637-00-00
Unavailable
12
BOLT, FLANGE
95817-06008-00
$8.49
13
NUT, SPRING
90183-060A0-00
Unavailable
14
BOLT, FLANGE
95817-06016-00
$2.75
15
PLUG
90338-20004-00
$7.49
16
PLUG
90338-20007-00
Unavailable
17
BOLT, BUTTON
92017-08025-00
Unavailable
18
WASHER, PLAIN
92990-08200-00
Unavailable
19
GASKET, MUFFLER
8FA-14714-10-00
Unavailable
20
BAND, SILENCER
8FA-14788-00-00
Unavailable
21
BAND, SILENCER
8FA-14789-00-00
Unavailable
22
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
23
BOLT, FLANGE
95817-06008-00
$8.49
24
DAMPER, MUFFLER
8FA-14737-00-00
Unavailable
25
COLLAR
90387-08071-00
Unavailable
26
BOLT (8K4)
90101-08499-00
Unavailable
27
WASHER(6TA)
92907-08600-00
Unavailable
28
PROTECTOR ASSY
8FA-14708-02-00
Unavailable
29
BOLT, FLANGE
95817-06016-00
$2.75
30
SILENCER ASSY
8FA-14750-01-00
Unavailable
31
COVER, 3
8FA-1479K-00-00
Unavailable
32
RIVET, BLIND
90267-48179-00
Unavailable
33
WASHER, PLATE(75J)
90201-05N15-00
Unavailable
34
EXHAUST PIPE ASSY 1
8FA-14610-02-00
Unavailable
35
COVER, 1
8FA-1479H-00-00
Unavailable
36
RIVET, BLIND
90267-48179-00
Unavailable
37
WASHER, PLATE(75J)
90201-05N15-00
Unavailable
38
EXHAUST PIPE ASSY 2
8FA-14620-02-00
Unavailable
39
COVER 2
8FA-1479J-00-00
Unavailable
40
RIVET, BLIND
90267-48179-00
Unavailable
41
WASHER, PLATE(75J)
90201-05N15-00
Unavailable
