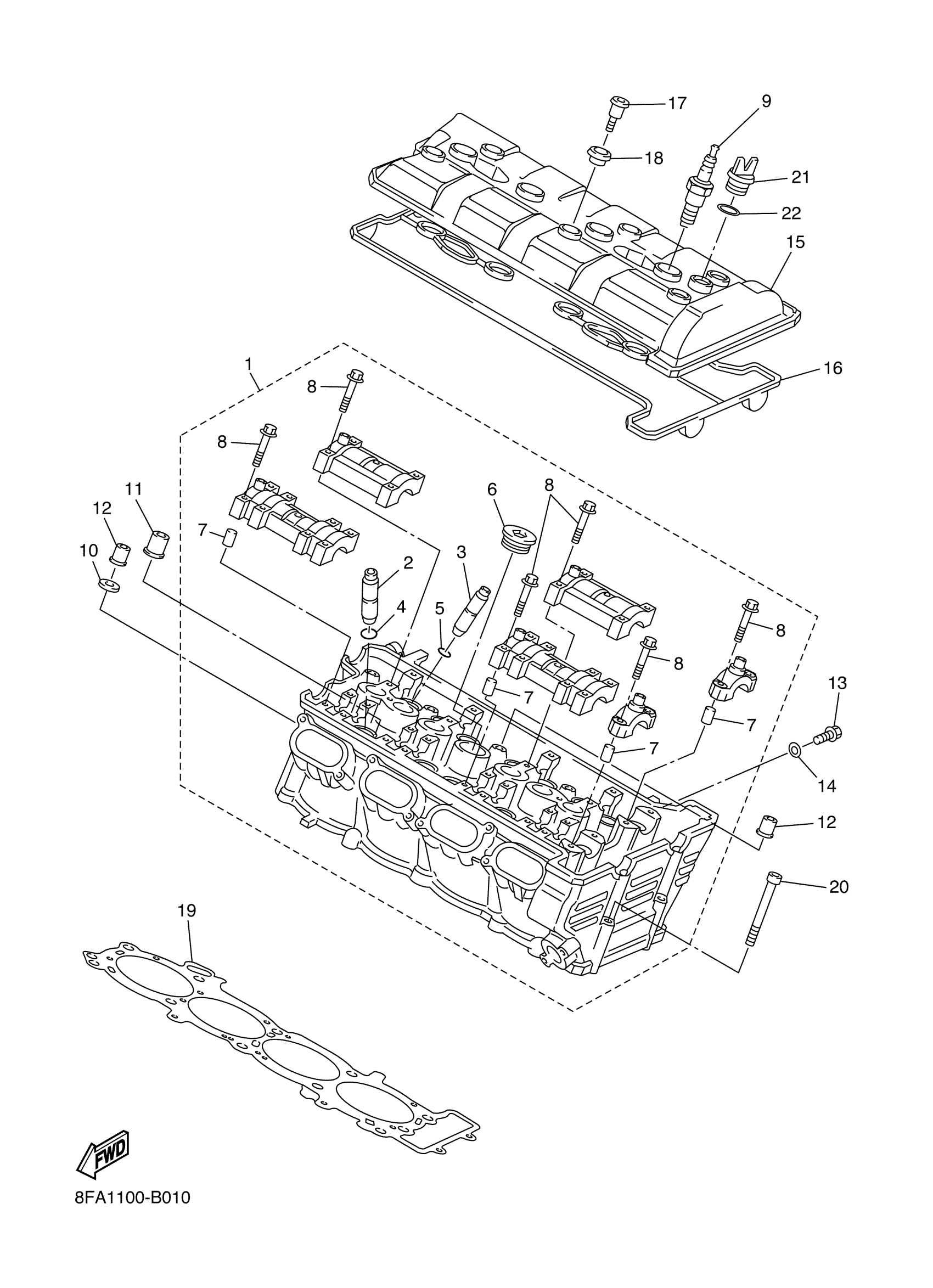

Yamaha RX10SH (RX-1 LE) 8EU1 2003 CYLINDER Diagram

CYLINDER HEAD ASSY

8FA-11102-04-00

Unavailable

GUIDE, INTAKE VALVE

3TJ-11133-10-00

$67.99

GUIDE, INTAKE VALVE

1WG-11133-11-00

$77.99

CIRCLIP(1HX)

93440-07149-00

$8.49

CIRCLIP(1WG)

93440-10153-00

$2.39

PLUG, STRAIGHT SCREW

90340-27129-00

$5.60

PIN, DOWEL(3XW)

91808-16023-00

$8.49

. BOLT, FLANGE

90105-06026-00

Unavailable

CR9E NGK SPLUG 4PK

CR9-E0000-00-00

Unavailable

WASHER, PLATE

90201-10033-00

$8.49

NUT

90179-10006-00

$9.49

NUT (26H)

90179-10414-00

$11.49

BOLT, FLANGE(4MY)

95027-06012-00

$3.88

GASKET 256113960000

90430-06014-00

Unavailable

COVER, CYLINDER HEAD 1

8FA-11191-00-00

Unavailable

GASKET, HEAD COVER 1

8FA-11193-00-00

Unavailable

BOLT(4BP)

90109-066F0-00

Unavailable

RUBBER, MOUNT 1

5EA-1111G-00-00

Unavailable

GASKET, CYLINDER HEAD 1

8FA-11181-01-00

Unavailable

BOLT,SOCKET

91317-06060-00

Unavailable

PLUG, OIL

3Y1-15363-10-00

Unavailable

O-RING (646)

93210-19123-00

Unavailable
