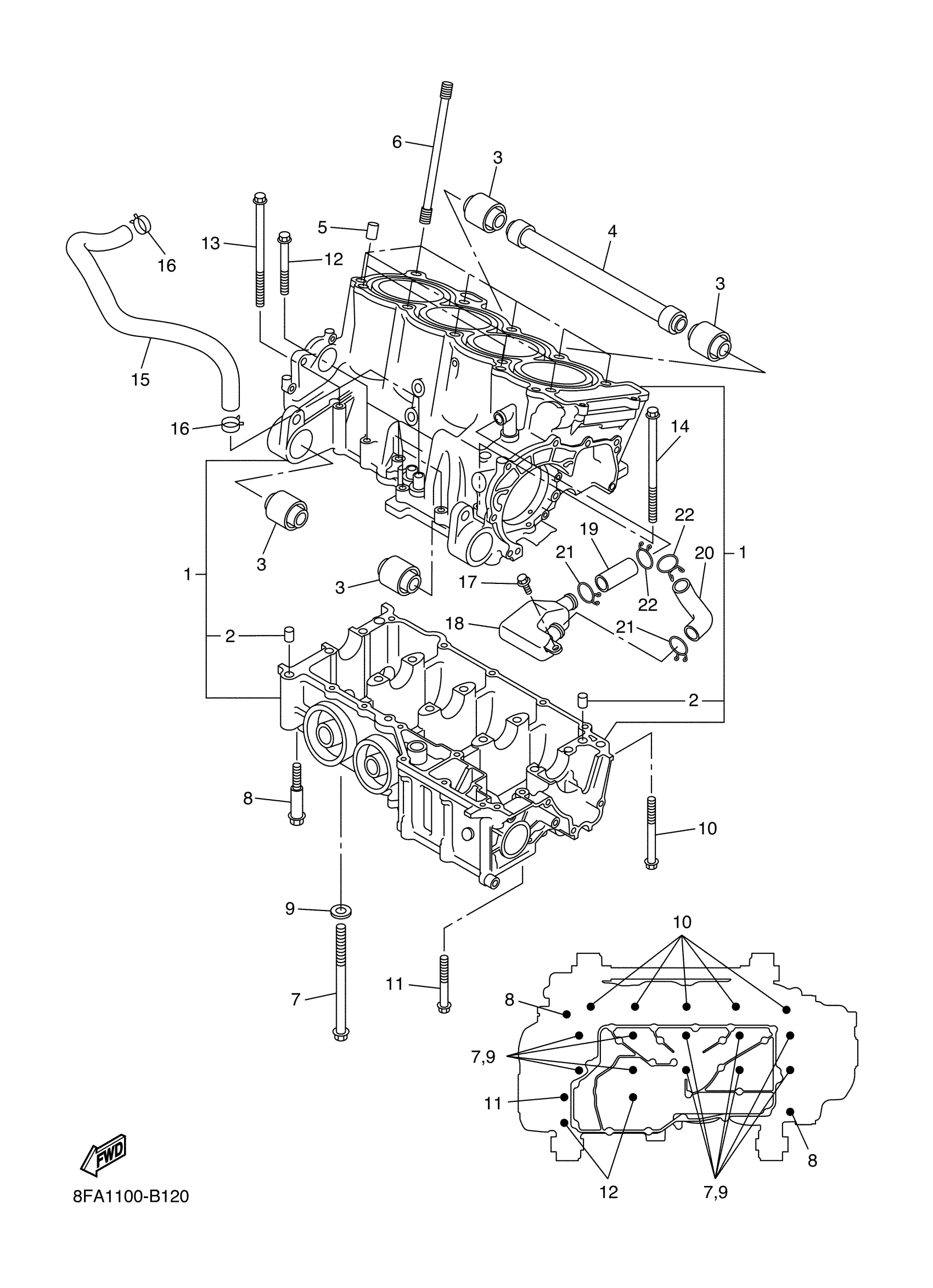

Yamaha RX10SH (RX-1 LE) 8EU1 2003 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

8FA-15100-03-00

Unavailable

2

PIN, DOWEL(3VD)

99530-10114-00

$2.55

3

DAMPER

8FA-2139X-00-00

Unavailable

4

SPACER

8FA-21459-00-00

Unavailable

5

PIN, DOWEL(3VD)

99530-10114-00

$2.55

6

BOLT, STUD

90116-10619-00

$11.49

7

BOLT, WASHER BASED

90105-093A5-00

$11.49

8

BOLT

90109-065G3-00

$9.49

9

WASHER, PLATE(1AA)

90201-096J9-00

$4.41

10

BOLT, FLANGE

95817-06055-00

$7.49

11

BOLT, FLANGE

95817-06025-00

Unavailable

12

BOLT, FLANGE

95817-06045-00

$8.49

13

BOLT, FLANGE

95817-06080-00

$4.72

14

BOLT, FLANGE

95817-06090-00

$3.55

15

PIPE, BREATHER 1

8FA-11166-00-00

Unavailable

16

CLIP (4V3)

90467-20050-00

Unavailable

17

BOLT(3KJ)

90109-063F1-00

Unavailable

18

BREATHER

8FA-15371-00-00

Unavailable

19

PIPE, BREATHER 2

8FA-11167-00-00

Unavailable

20

PIPE, BREATHER 4

8FA-11125-00-00

Unavailable

21

CLIP (21V)

90467-22080-00

Unavailable

22

CLIP (21V)

90467-22080-00

Unavailable
