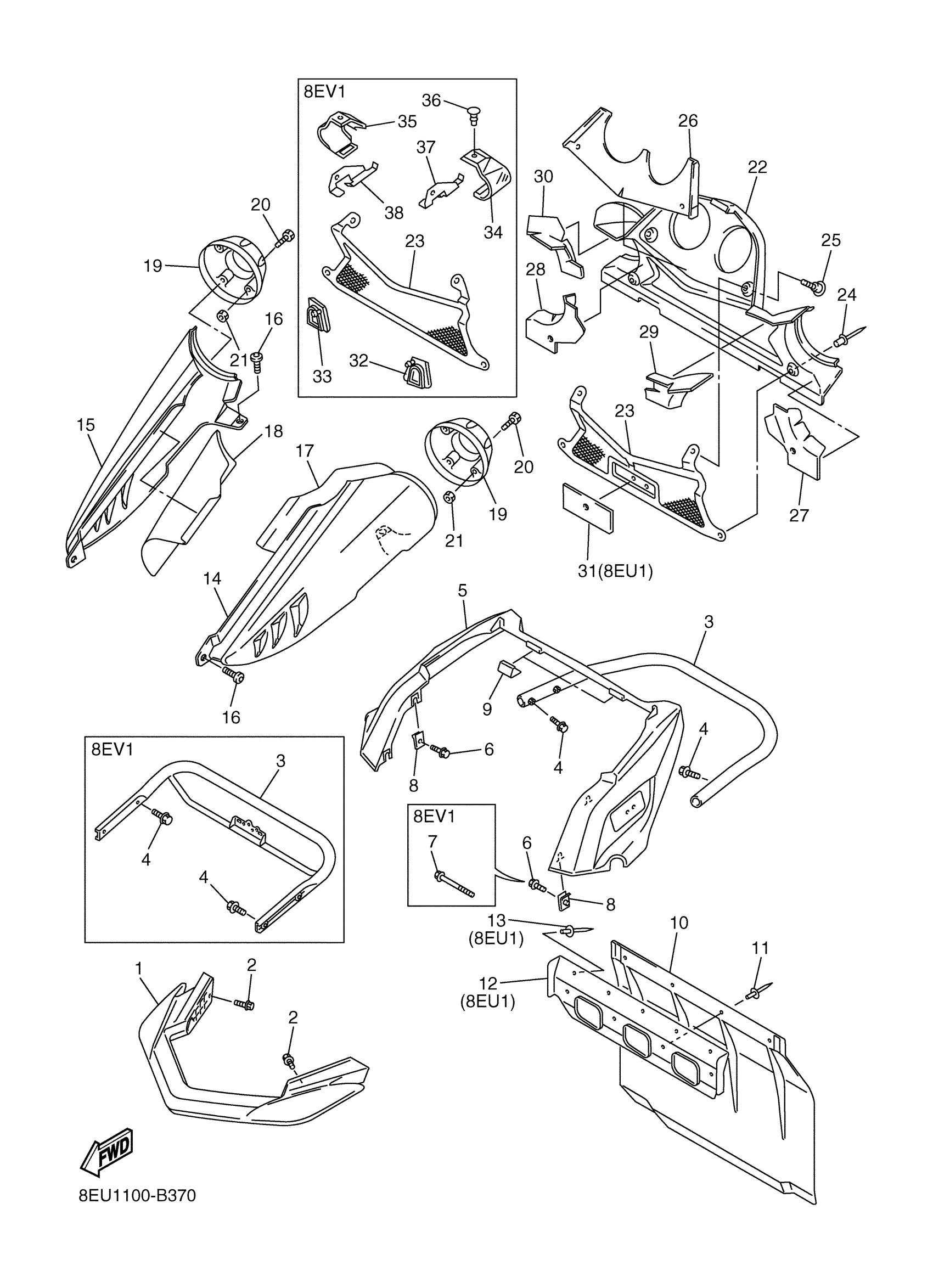

Yamaha RX10SH (RX-1 LE) 8EU1 2003 BUMPER Diagram
#
1
BUMPER, FRONT 1
8FA-77511-01-00
$250.99
2
BOLT, FLANGE(JN5)
95817-08016-00
$5.49
3
BUMPER, REAR 1
8EP-77541-00-00
Unavailable
3
BUMPER, REAR 1
8FA-77541-01-00
Unavailable
4
BOLT, FLANGE(8AB)
95817-08020-00
$9.49
5
BUMPER, REAR 2
8EP-77542-00-00
$73.99
5
BUMPER, REAR 2
8FA-77542-00-00
Unavailable
6
BOLT, FLANGE
95817-06016-00
$2.75
6
BOLT, FLANGE
95817-06016-00
$2.75
7
BOLT, FLANGE
90105-06040-00
$8.49
8
NUT, SPRING(4ES)
90183-06069-00
Unavailable
9
TAPE 4
8FA-7717H-00-00
$1.25
10
FLAP
8GT-K7595-00-00
Unavailable
11
RIVET, BLIND(8CH)
90267-47187-00
$2.34
12
STOPPER, FLAP
8FA-77596-00-00
Unavailable
13
RIVET, BLIND(3JB)
90267-48095-00
Unavailable
14
PROTECTOR 1
8FA-77551-10-00
Unavailable
15
PROTECTOR 2
8FA-77552-10-00
Unavailable
16
SCREW(2XF)
90149-06263-00
Unavailable
17
LINING, SHROUD 1
8FA-77261-00-00
Unavailable
18
LINING, SHROUD 2
8FA-77262-00-00
Unavailable
19
CAP
8FA-77517-00-00
Unavailable
20
BOLT,SOCKET HEAD
91314-06014-00
Unavailable
21
NUT(6TA)
95317-06600-00
Unavailable
22
COVER, TAILLIGHT
8FA-84516-00-00
Unavailable
23
PROTECTOR 3
8EU-77553-00-00
Unavailable
23
PROTECTOR 3
8EV-77553-00-00
Unavailable
24
RIVET, BLIND(8CH)
90267-47187-00
$2.34
25
SCREW(2XF)
90149-06263-00
Unavailable
26
LINING, SHROUD 3
8FA-77263-00-00
Unavailable
27
LINING, SHROUD 4
8FA-77264-00-00
Unavailable
28
LINING, SHROUD 5
8FA-77265-00-00
Unavailable
29
LINING, SHROUD 6
8FA-77266-00-00
Unavailable
30
LINING, SHROUD 7
8FA-77267-00-00
Unavailable
31
LINING, SHROUD 8
8FA-77268-00-00
Unavailable
32
GROMMET 1
8EP-77431-00-00
Unavailable
33
GROMMET 2
8EP-77432-00-00
Unavailable
34
COVER, 3
8EP-77563-00-00
Unavailable
35
COVER, 4
8EP-77564-00-00
Unavailable
36
PLUG
90338-08220-00
Unavailable
37
PROTECTOR 4
8EP-77554-00-00
Unavailable
38
PROTECTOR 5
8EP-77555-00-00
Unavailable
