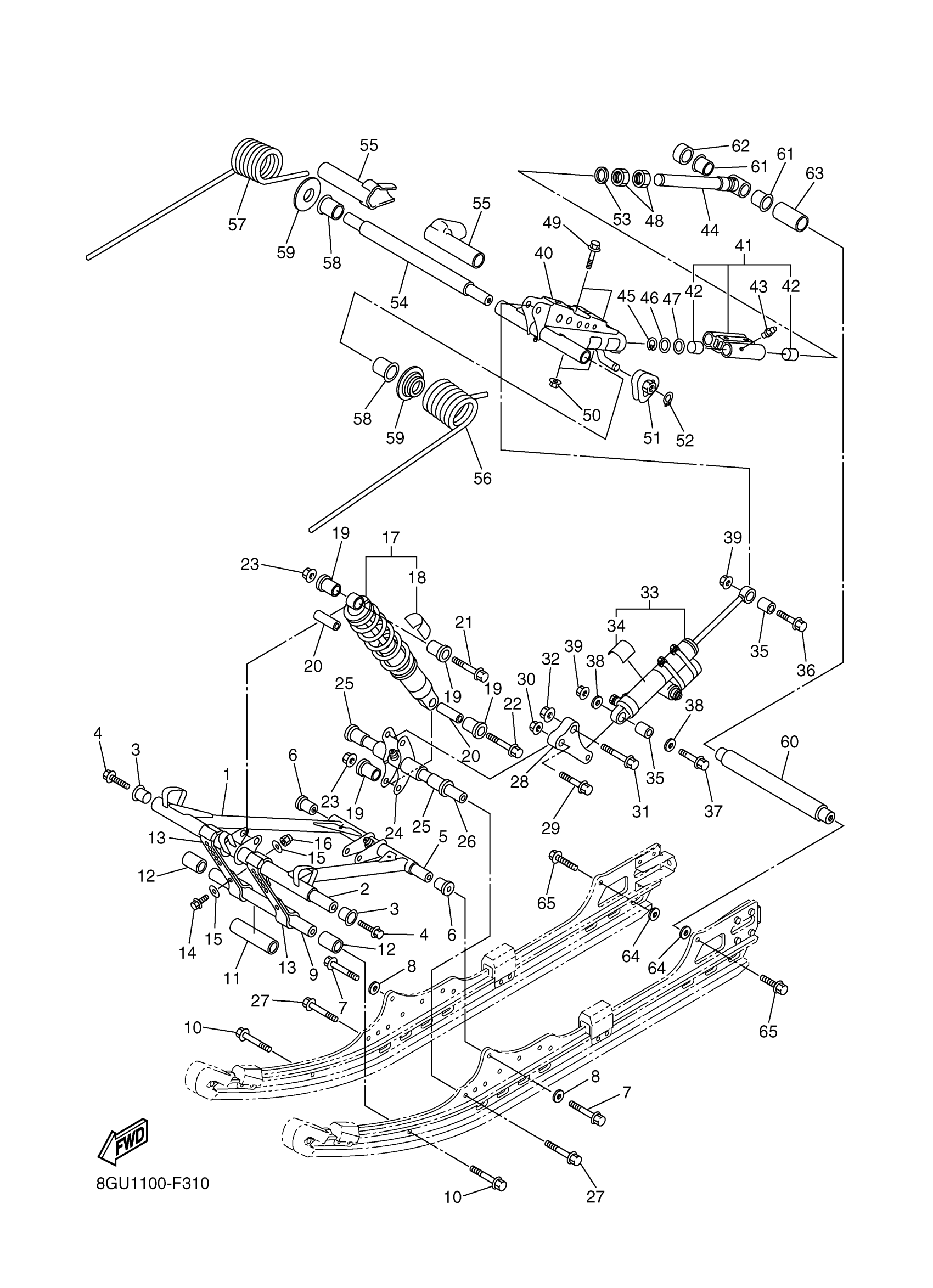

Yamaha RX10RYR (APEX_RTX) 8FR9 2009 TRACK SUSPENSION 4 Diagram

#

Description
Price

1

ARM, PIVOT 1

8GT-47331-02-00

$328.65

2

SHAFT 1

8GT-47465-00-00

Unavailable

3

BUSH

90386-25002-00

$30.52

4

BOLT (8V0)

90109-10771-00

$5.00

5

SHAFT 4

8ES-47486-00-00

$36.48

6

COLLAR

90387-10022-00

$16.62

7

BOLT, FLANGE

90105-10092-00

$4.20

8

WASHER, PLATE(8BV)

90201-100S7-00

$9.75

9

SHAFT 3

8ES-47485-00-00

$50.74

10

BOLT, FLANGE

90105-10092-00

$4.20

11

COLLAR

90387-19002-00

$5.82

12

COLLAR

90387-19001-00

$6.82

13

STOPPER 1

8GT-47495-00-00

$38.42

14

BOLT, HEXAGON

97017-06025-00

$2.98

15

WASHER, PLATE

90201-06081-00

$6.18

16

NUT, NYLON

95707-06300-00

$3.20

17

SHOCK ABSORBER 2

8GT-47481-30-00

$538.99

18

LABEL, WARNING

4AA-22259-60-00

$6.02

19

BUSH, SOLID(8CM)

90381-14101-00

$7.48

20

COLLAR (8U7)

90387-105G5-00

$7.35

21

BOLT, FLANGE(4GB)

95817-10045-00

$4.52

22

BOLT(88R)

90101-10738-00

$6.28

23

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.32

24

BRACKET, ARM PIVOT

8GT-47349-01-00

$70.67

25

BUSH

90386-20001-00

$8.97

26

SHAFT 5

8GN-47487-00-00

$91.60

27

BOLT, FLANGE

90105-10092-00

$4.20

28

BRACKET

8GT-4741B-00-00

$266.31

29

BOLT, FLANGE(87Y)

95817-10055-00

$4.54

30

NUT, S/L FLANGE

95602-10200-00

$2.29

31

BOLT, FLANGE(J50)

95812-12055-00

$4.42

32

NUT, SELF-LOCKING

95602-12200-00

$3.82

33

SHOCK ABSORBER

8GT-47480-20-00

$1,196.99

34

LABEL, WARNING

4AA-22259-60-00

$6.02

35

COLLAR

90387-10023-00

$17.41

36

BOLT, FLANGE

95817-10040-00

$3.32

37

BOLT, FLANGE

90105-10122-00

$9.00

38

WASHER, PLATE(3BM)

90201-105R9-00

$6.58

39

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.32

40

ARM, PIVOT 2

8ES-47332-01-00

Unavailable

41

STOPPER, CONT. 1

8ES-4745D-00-00

$128.48

42

BUSH, SOLID

90380-24001-00

$8.38

43

NIPPLE, GREASE

93700-06M03-00

$7.15

44

ROD, CONTROL 1

8ES-4745A-00-00

$96.95

45

CIRCLIP

99009-24400-00

$7.49

46

WASHER, PLATE

90201-24015-00

$5.74

47

WASHER, PLATE

90202-25001-00

$0.91

48

STOPPER, ADJUSTING NUT

8ES-48142-00-00

$27.05

49

BOLT, FLANGE(87Y)

95817-10055-00

$4.54

50

NUT, S/L FLANGE

95602-10200-00

$2.29

51

HOOK 2

8ES-47447-00-00

$17.94

52

CIRCLIP(13H)

99009-14400-00

$2.48

53

WASHER, PLATE

90202-25002-00

$9.71

54

SHAFT 2

8ES-47475-01-00

$113.82

55

PROTECTOR

8ES-47445-00-00

$20.12

56

SPRING, REAR 1 (K=2200NMM/DEG)

8GF-47473-10-00

Unavailable

57

SPRING, REAR 2

8GF-47474-10-00

$209.25

58

BUSH, SOLID(8CJ)

90381-28108-00

$12.18

59

PLATE, GUIDE

8ES-47467-00-00

$16.89

60

SHAFT, PIVOT

8ES-47337-00-00

$51.05

61

BUSH

90386-25001-00

$5.60

62

COLLAR

90387-26002-00

$29.63

63

COLLAR

90387-26003-00

$5.78

64

WASHER, PLATE

90201-10028-00

$5.72

65

BOLT, FLANGE

95817-10030-00

$6.17
