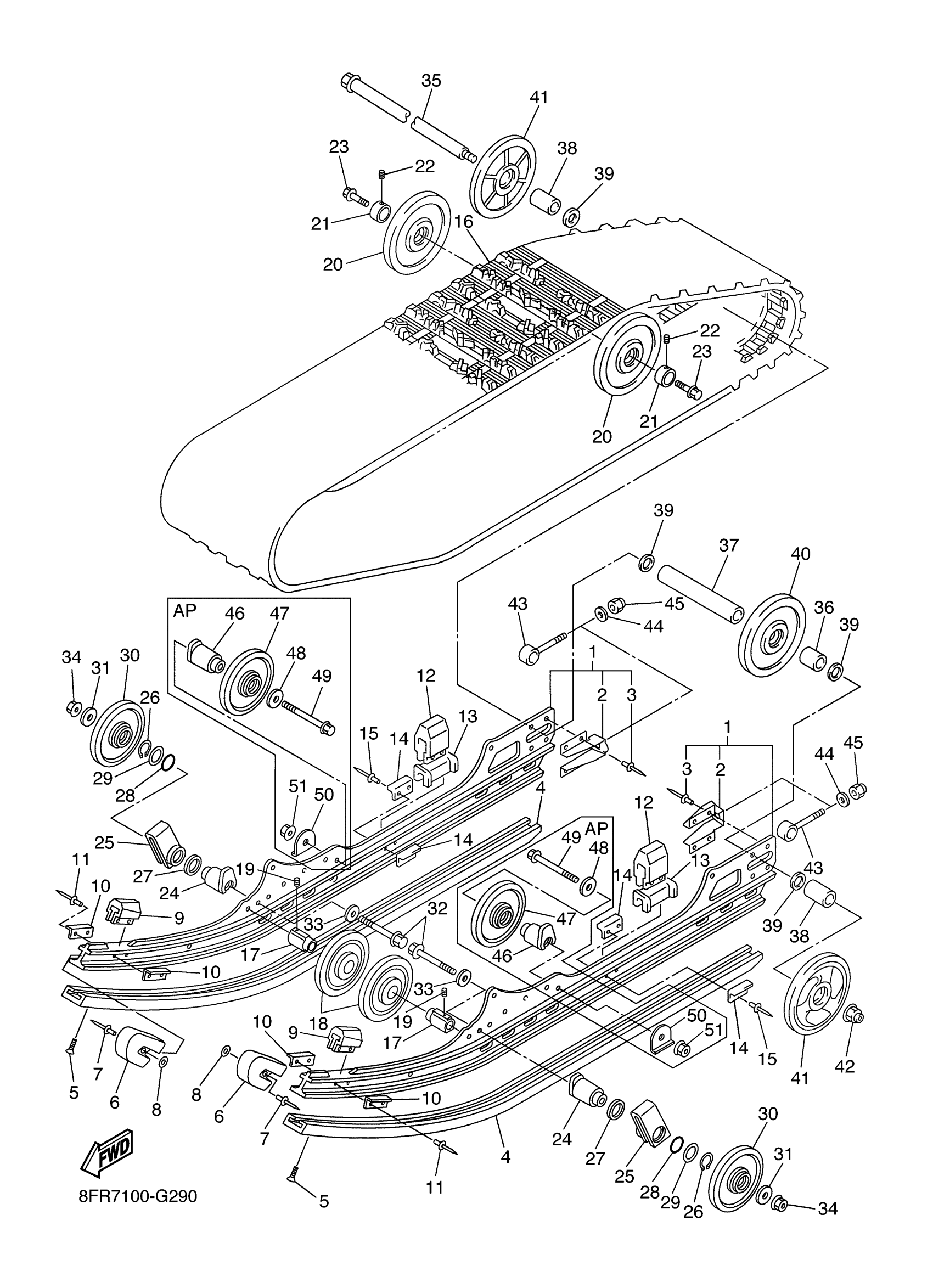

Yamaha RX10RYR (APEX_RTX) 8FR9 2009 TRACK SUSPENSION 2 Diagram

#

Description
Price

1

FRAME, SLIDING

8ES-W4741-00-00

$266.77

2

BRACKET

8DM-4741B-00-00

$39.86

3

RIVET

8V0-47468-00-00

$7.54

4

RUNNER, SLIDING 1

8ES-47421-00-00

$41.97

5

SCREW, CROSSRECESS (8G6)

90151-06005-00

$7.18

6

RUNNER, SLIDING 2

8ED-47422-00-00

$42.54

7

RIVET BLIND

90267-48194-00

$2.20

8

WASHER, PLATE(8CM)

90201-047R8-00

$2.31

9

DAMPER 1

8ES-47456-00-00

$6.28

10

PLATE, DAMPER

8K2-47458-01-00

$2.45

11

RIVET, BLIND

90267-48199-00

$2.62

12

DAMPER 2

8CM-47457-00-00

$8.78

13

SPACER

8CM-47341-00-00

$7.37

14

PLATE, DAMPER

8AX-47458-00-00

$8.08

15

RIVET, BLIND

90267-48199-00

$2.62

16

TRACK ASSY

8FA-47110-10-00

Unavailable

17

COLLAR

8ES-47319-01-00

$26.20

18

SUSPENSION WHEEL ASSY

8ET-47310-00-00

$76.81

19

BOLT, SET (8K2)

90113-06039-00

$6.97

20

GUIDE WHEEL ASSY

8CR-47550-00-00

$22.15

21

COLLAR 1

8ES-47365-00-00

$17.40

22

BOLT, SET (8K2)

90113-06039-00

$6.97

23

BOLT (8V0)

90109-10771-00

$5.00

24

BRACKET 7

8ES-47419-10-00

$21.03

25

HOOK 1

8ES-47446-00-00

$16.85

26

CIRCLIP(6U2)

93410-35M10-00

$4.54

27

O-RING (16G)

93210-35537-00

$11.32

28

O-RING (21A)

93210-34633-00

$8.31

29

WASHER, PLATE

90201-35013-00

$3.49

30

SUSPENSION WHEEL ASSY

8ET-47310-00-00

$76.81

31

WASHER, PLATE(42X)

90201-105H3-00

$5.68

32

BOLT, FLANGE

95817-10080-00

$5.00

33

WASHER, PLATE (17K)

90201-106F2-00

$7.66

34

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.32

35

REAR AXLE COMP.

8L8-47520-10-00

$67.31

36

COLLAR

90387-20015-00

$23.32

37

COLLAR

90387-20016-00

$20.42

38

COLLAR

90387-20019-00

$22.38

39

WASHER, PLATE(89W)

90201-205R6-00

$10.68

40

GUIDE WHEEL ASSY

8CR-47550-10-00

Unavailable

41

GUIDE WHEEL ASSY

8EK-47550-20-00

$190.74

42

NUT, SELF-LOCKING (8BF)

95607-14200-00

$10.17

43

COLLAR 3

8DM-47479-00-00

$15.04

44

WASHER, PLATE

92990-10600-00

$2.61

45

NUT, NYLON

95707-10300-00

$6.68

46

BRACKET 7

8ES-47419-00-00

$21.03

47

SUSPENSION WHEEL ASSY

8ET-47310-00-00

$76.81

48

WASHER, PLATE(42X)

90201-105H3-00

$5.68

49

BOLT, FLANGE

95817-10080-00

$5.00

50

WASHER, CLAW

90214-10003-00

$19.45

51

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.32
