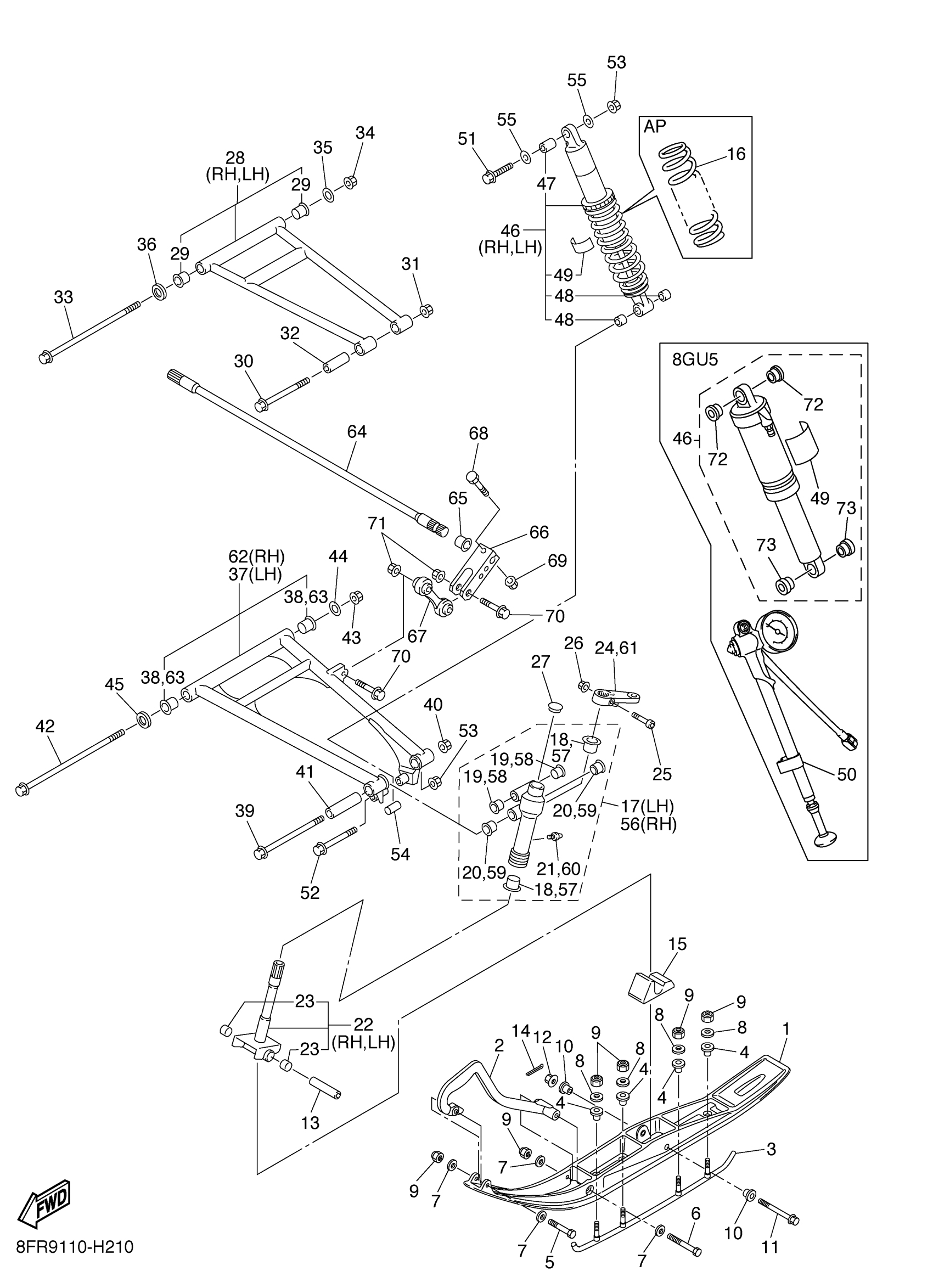

Yamaha RX10RYR (APEX_RTX) 8FR9 2009 SKI Diagram

#

Description
Price

1

SKI 1

8ES-23711-00-BK

Unavailable

2

RED 8DM HANDLE PLASTIC

8DM-23712-00-RD

Unavailable

3

SKI RUNNER KIT

SMA-F3731-EK-00

Unavailable

4

BUSH, SKI 1

8EK-F3751-00-00

$5.66

5

BOLT, HEXAGON

97017-08055-00

$6.88

6

BOLT, HEXAGON

97027-08100-00

$4.55

7

WASHER, PLATE (3L7)

90201-08784-00

$2.54

8

WASHER, PLATE(3XP)

90201-086P8-00

$4.35

9

NUT, NYLON

95717-08300-00

$2.57

10

. COLLAR 1

8EX-F3754-00-00

Unavailable

11

BOLT, FLANGE

90105-10070-00

$9.46

12

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.32

13

COLLAR

90387-1012H-00

$20.68

14

PIN, COTTER

91490-20025-00

$1.31

15

STOPPER 1

8CR-23743-10-00

$22.97

16

SPRING ASSY 1 (K=2.3)

8FR-23760-00-00

Unavailable

16

SPRING ASSY 1 (K=3.0)

8FR-23760-10-00

Unavailable

17

STEERING KNUCKLE ASSY (LEFT)

8ES-23501-10-00

$275.85

18

BUSH, SOLID

90381-25115-00

$8.09

19

BUSH, SOLID

90381-15N50-00

$5.22

20

BUSH, SOLID

90381-18N51-00

$9.77

21

NIPPLE, GREASE

93700-06M03-00

$7.15

22

COLUMN, SKI ASSY

8ES-23803-00-00

$193.57

23

BUSH, BIMETAL FORMED

90384-16N51-00

$4.35

24

ARM, OUTSIDE 1

8FA-23851-00-00

$112.58

25

BOLT, HEXAGON SOCKET HEAD

90110-08N53-00

$3.45

26

NUT, SELF-LOCKING

90185-08169-00

$7.09

27

CAP, CASE

3YK-22472-40-00

$4.63

28

FRONT UPPER ARM COMP.

8GD-23540-60-00

$418.14

29

BUSH, SOLID

90381-15N50-00

$5.22

30

BOLT, FLANGE

90105-10N56-00

$10.88

31

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.32

32

COLLAR

90387-10099-00

$17.69

33

BOLT, FLANGE

90105-10N54-00

$39.60

34

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.32

35

WASHER, PLATE (17K)

90201-106F2-00

$7.66

36

WASHER

90209-15N50-00

$1.58

37

FRONT LOWER ARM COMP. (LEFT)

8JA-23570-60-00

Unavailable

38

BUSH, SOLID

90381-16N51-00

$7.52

39

BOLT, FLANGE

90105-12N54-00

$14.18

40

NUT, U FLANGE

95607-12200-00

$5.43

41

COLLAR

90387-12N54-00

$16.71

42

BOLT, FLANGE

90105-10N55-00

$51.09

43

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.32

44

WASHER, PLATE (17K)

90201-106F2-00

$7.66

45

WASHER

90209-15N50-00

$1.58

46

ABSORBER ASSY 1

8FR-2376A-00-00

$602.99

46

ABSORBER ASSY 1

8GH-F376A-00-00

Unavailable

47

DAMPER, BUSH B

8FA-2331R-00-00

$10.38

48

BUSH, BIMETAL FORMED

90384-15N51-00

$6.37

49

LABEL, WARNING

4AA-22259-60-00

$6.02

49

LABEL,WARNING

8GT-F2259-00-00

Unavailable

50

FOX AIR PUMP

8FP-23703-FS-00

Unavailable

51

BOLT, WASHER BASED (4K0)

90105-10169-00

$9.98

52

BOLT, WASHER BASED(59V)

90105-10392-00

$8.40

53

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.32

54

COLLAR

90387-10N59-00

$12.34

55

WASHER, PLATE (17K)

90201-106F2-00

$7.66

56

STEERING KNUCKLE ASSY (RIGHT)

8ES-23502-10-00

$392.12

57

BUSH, SOLID

90381-25115-00

$8.09

58

BUSH, SOLID

90381-15N50-00

$5.22

59

BUSH, SOLID

90381-18N51-00

$9.77

60

NIPPLE, GREASE

93700-06M03-00

$7.15

61

ARM, OUTSIDE 2

8FA-23852-00-00

$110.66

62

FRONT LOWER ARM COMP. (RIGHT) (YAMAHA BLACK)

8ES-23580-60-00

Unavailable

63

BUSH, SOLID

90381-16N51-00

$7.52

64

BAR, STABILIZER FRONT

8FG-2386E-00-00

$128.69

65

BUSH, STABILIZER FRONT

8FG-2386G-00-00

$2.91

66

ARM, STABILIZER

8FG-2386L-00-00

$65.52

67

JOINT, STABILIZER 1

8ES-2385L-00-00

$103.15

68

BOLT, HEXAGON (538)

90101-06278-00

$1.82

69

NUT, U FLANGE

95604-06200-00

$2.35

70

BOLT, FLANGE(4FM)

95814-08030-00

$6.28

71

NUT, U FLANGE(4KG)

95604-08200-00

$2.17

72

BUSH

8HR-2376B-09-00

$33.20

73

BUSH

8HR-2376B-19-00

$31.67
