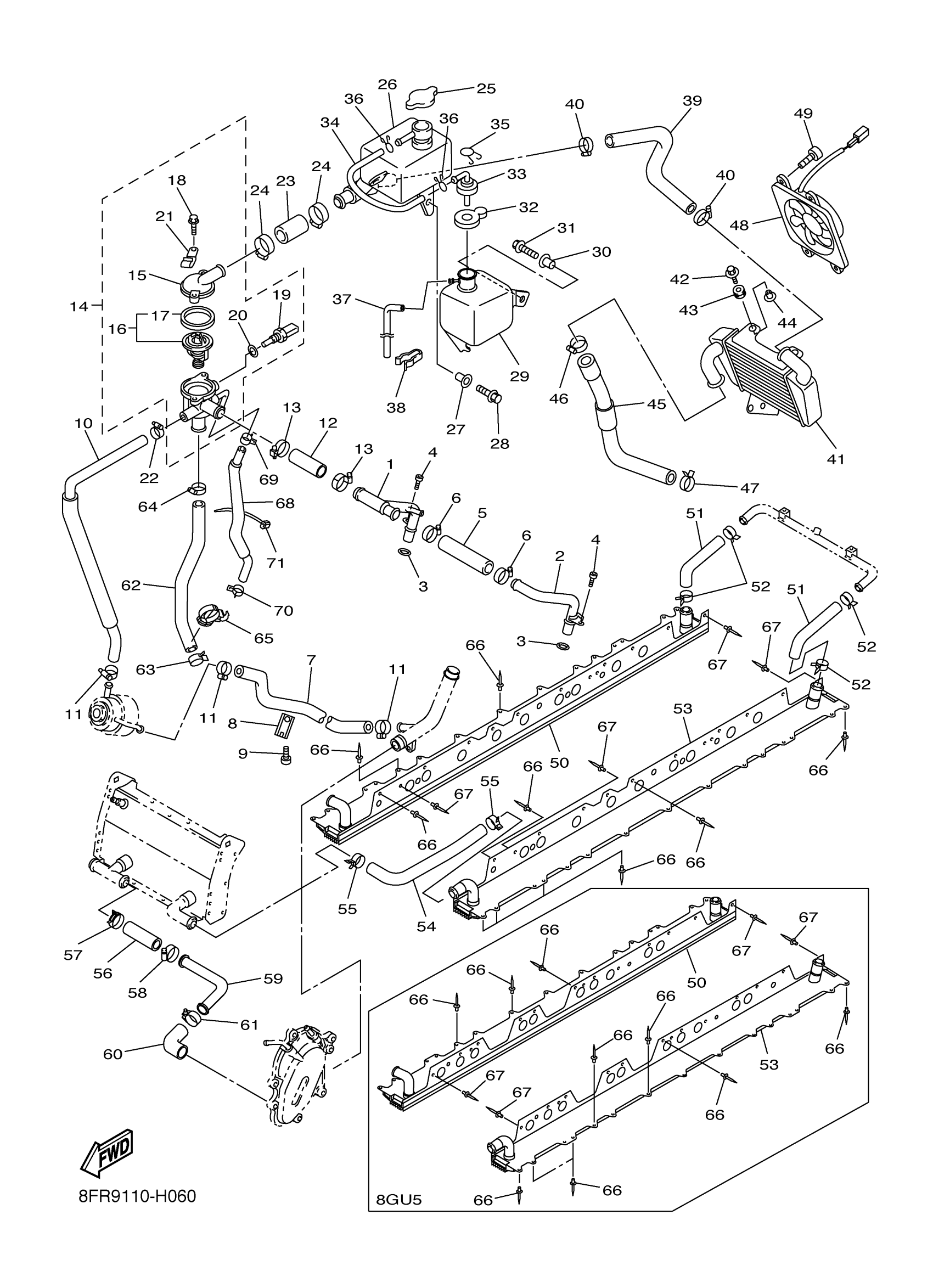

Yamaha RX10RYR (APEX_RTX) 8FR9 2009 RADIATOR HOSE Diagram

#

Description
Price

1

PIPE 2

8FP-12482-01-00

Unavailable

2

PIPE 3

8FP-12483-01-00

Unavailable

3

O-RING (716)

93210-18417-00

$5.56

4

BOLT(3MA)

91312-06016-00

$4.89

5

HOSE 1

8FA-1243A-00-00

$5.92

6

HOSE CLAMP ASSY

90450-28001-00

$12.54

7

HOSE 5

8FA-12588-00-00

$14.02

8

CLAMP 1

8FA-12491-00-00

$3.37

9

BOLT,SOCKET

91317-06012-00

$6.17

10

HOSE 6

8FA-12589-01-00

$30.12

11

HOSE CLAMP ASSY

90450-18M09-00

$11.49

12

HOSE 2

8FP-1243E-00-00

$10.31

13

HOSE CLAMP ASSY

90450-35001-00

$5.25

14

JOINT ASSY

8FP-12580-00-00

$173.05

15

COVER, THERMOSTAT

8FP-12413-00-00

$11.60

16

THERMOSTAT ASSY

8FP-12410-00-00

$95.82

17

SEAL, THERMOSTAT

8FP-12412-00-00

$4.80

18

BOLT, FLANGE

95022-06020-00

$3.32

19

THERMOSENSOR ASSY

8CC-85790-01-00

$86.91

20

WASHER, PLATE

90201-12790-00

$6.85

21

. CLAMP

90465-06M28-00

$4.90

22

HOSE CLAMP ASSY

90450-18M09-00

$11.49

23

HOSE,3

8FP-1243F-00-00

$15.25

24

HOSE CLAMP ASSY

90450-35001-00

$5.25

25

CAP, RADIATOR

4FL-12462-00-00

$55.82

26

TANK, RESERVE

8FP-1249B-01-00

$52.54

27

COLLAR (838-84757-00)

90387-06024-00

$9.09

28

BOLT, FLANGE

95817-06020-00

$2.69

29

TANK, RECOVERY

8FP-21871-01-00

$42.89

30

COLLAR (8G8)

90387-06648-00

$7.09

31

BOLT, FLANGE

95817-06016-00

$1.49

32

CAP

8FP-21875-00-00

$10.94

33

ELBOW

26H-21828-00-00

$21.94

34

HOSE (L180)

90445-094K7-00

$3.45

35

CLIP(72X)

90467-11M08-00

$2.36

36

CLIP 101235600

90467-08003-00

$6.13

37

HOSE (L600)

90445-083J5-00

$5.69

38

CLAMP(53Y)

90464-15065-00

$5.72

39

HOSE, 4

8FP-1244G-00-00

$42.95

40

HOSE CLAMP ASSY

90450-35001-00

$5.25

41

RADIATOR ASSY

8FR-12461-00-00

$277.46

42

BOLT, WITH WASHER

90119-06181-00

$6.17

43

GROMMET (4N0)

90480-10289-00

$4.70

44

COLLAR (6G1)

90387-06M52-00

$6.31

45

HOSE 5

8FP-1244H-02-00

$37.83

46

HOSE CLAMP ASSY

90450-35001-00

$5.25

47

CLIP (8M6)

90467-28046-00

$12.43

48

BLOWER ASSY

8FP-12405-01-00

$229.48

49

SCREW, BINDING

98907-05016-00

$6.18

50

HEAT EXCHANGER

8ES-1240F-01-00

Unavailable

51

PIPE 6

8FA-12476-00-00

$21.62

52

CLIP (8M6)

90467-28046-00

$12.43

53

HEAT EXCHANGER

8ES-1240E-01-00

$248.80

54

PIPE 7

8FA-12477-00-00

$37.35

55

CLIP (8M6)

90467-28046-00

$12.43

56

PIPE 8

8FP-1248A-00-00

$11.72

57

CLIP (8M6)

90467-28046-00

$12.43

58

HOSE CLAMP ASSY

90450-35001-00

$5.25

59

PIPE, WATER

8FP-12564-01-00

$23.55

60

JOINT

8FA-12479-02-00

$26.91

61

HOSE CLAMP ASSY

90450-32002-00

$8.52

62

PIPE 9

8ET-1248E-00-00

$29.85

63

CLIP (8M6)

90467-28046-00

$12.43

64

HOSE CLAMP ASSY

90450-35001-00

$5.25

65

CLAMP

90464-36001-00

$3.91

66

RIVET, BLIND

90267-47195-00

$3.33

66

RIVET, BLIND

90267-47195-00

$3.33

67

RIVET, BLIND

90267-47197-00

$1.56

68

HOSE 4

8FA-12579-00-00

$16.82

69

CLIP(3BM)

90467-10135-00

$6.91

70

CLIP (7K7)

90467-11044-00

$5.10

71

CLAMP(4FM)

90464-15195-00

$2.77
