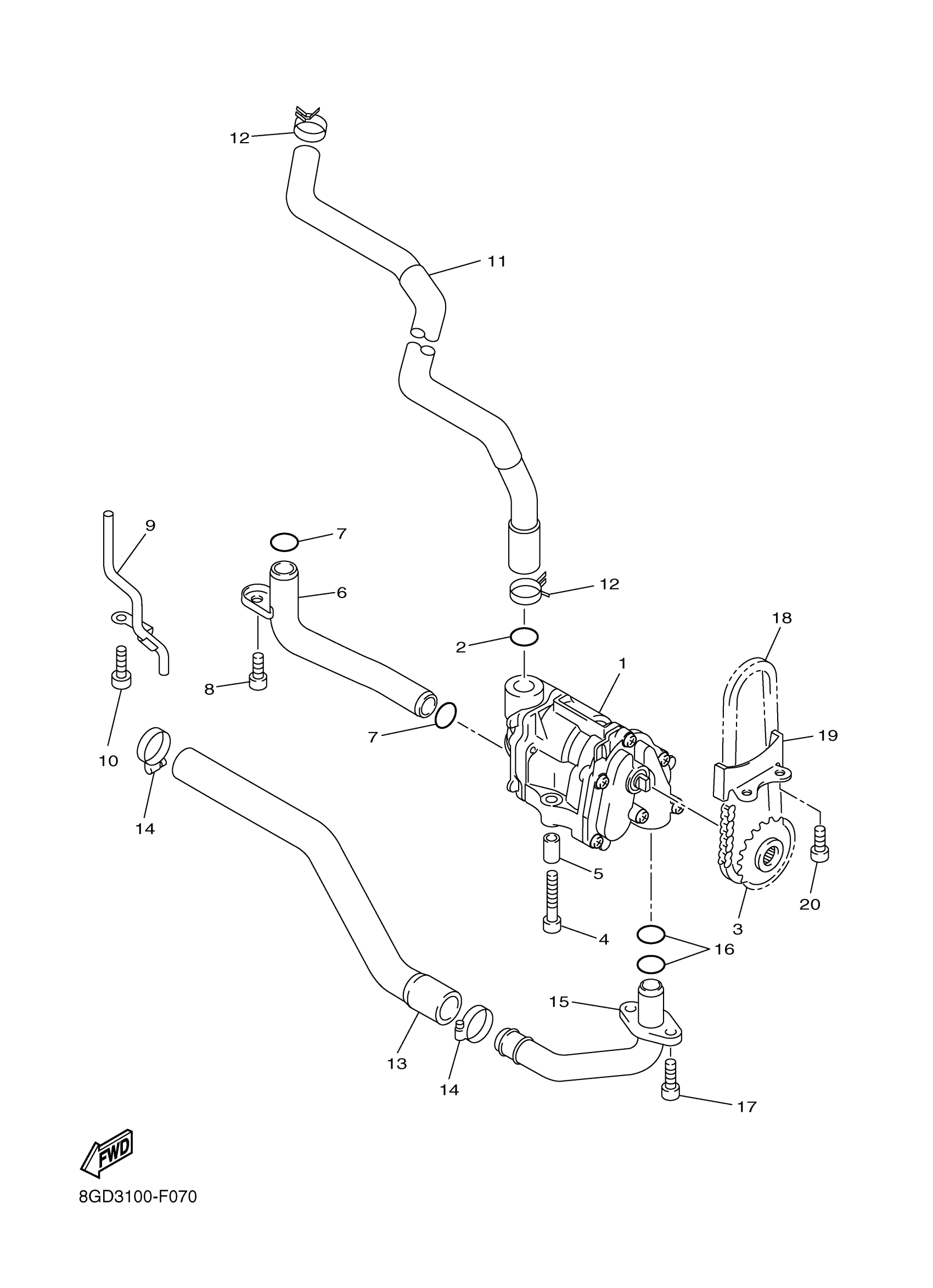

Yamaha RX10RYR (APEX_RTX) 8FR9 2009 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

8FA-13300-10-00

$365.08

2

O-RING (1L9)

93210-18322-00

$4.77

3

SPROCKET, DRIVEN

8FA-13355-00-00

$28.25

4

BOLT(J17)

91312-06035-00

$2.38

5

PIN, DOWEL

99530-08012-00

$6.62

6

PIPE, OIL 1

8FA-13416-00-00

$25.22

7

O-RING (26H)

93210-16629-00

$5.86

8

BOLT,SOCKET

91317-06012-00

$6.17

9

PIPE, DELIVERY 1

8FP-13161-00-00

$22.52

10

BOLT,SOCKET

91317-06012-00

$6.17

11

HOSE, OIL 1

8FP-13464-00-00

$49.78

12

CLIP(34X)

90467-22097-00

$7.14

13

HOSE, OIL 2

8FA-13465-00-00

$85.69

14

HOSE CLAMP ASSY

90450-28001-00

$12.54

15

CONNECTOR, SUCTION PIPE 2

8FA-1311A-00-00

$31.35

16

O-RING (26H)

93210-16629-00

$5.86

17

BOLT (33M)

91312-06014-00

$4.74

18

CHAIN

94580-31058-00

$17.86

19

HOLDER

8FA-13898-00-00

$14.71

20

BOLT,SOCKET

91317-06012-00

$6.17
