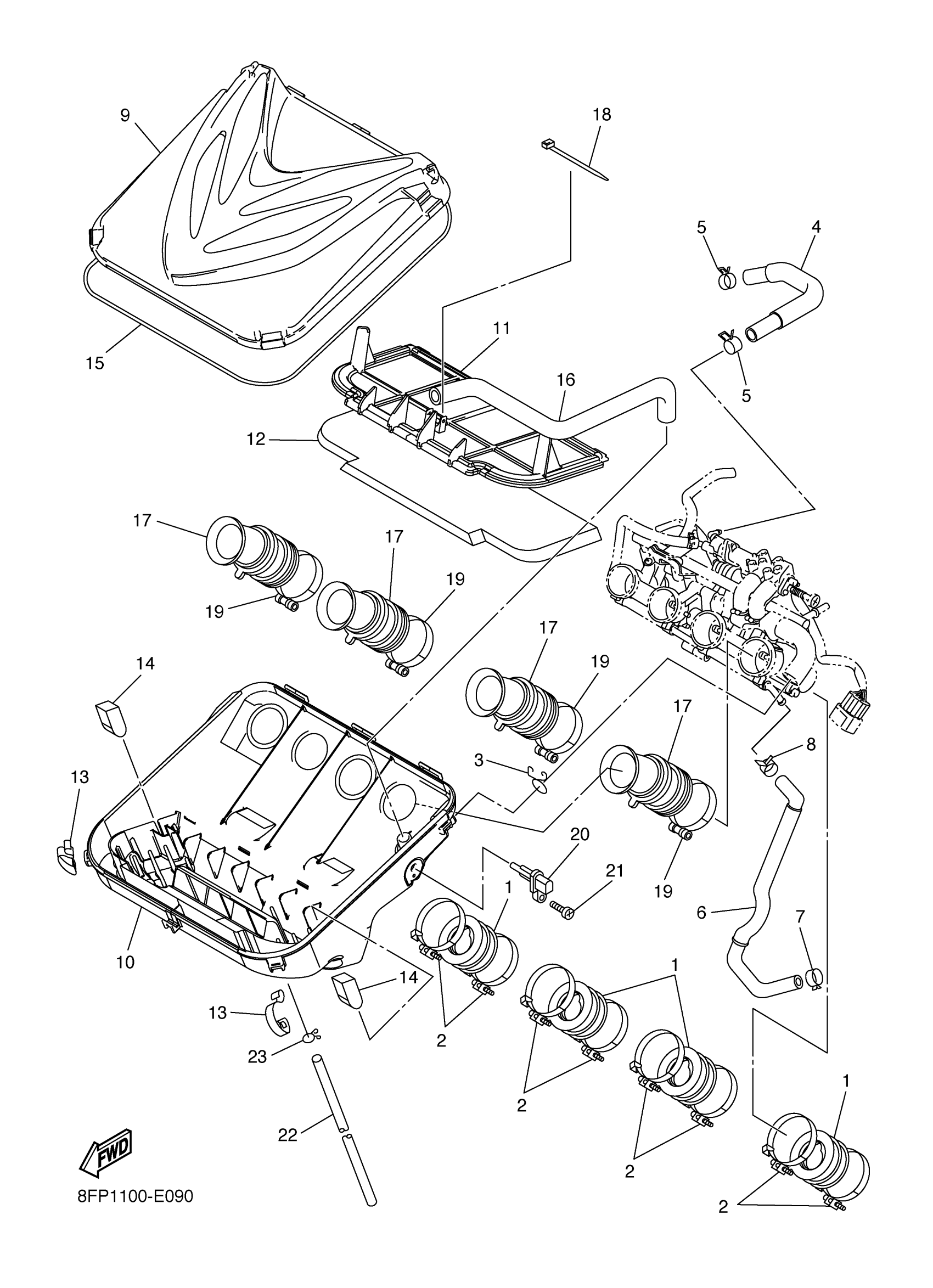

Yamaha RX10RYR (APEX_RTX) 8FR9 2009 INTAKE Diagram

#

Description
Price

1

JOINT, CARBURETOR 1

8FP-13586-00-00

$23.62

2

HOSE CLAMP ASSY

90450-62004-00

$13.79

3

CLIP

90467-220A1-00

$5.14

4

HOSE 1

8FP-1243A-00-00

$7.74

5

CLIP(3BM)

90467-10135-00

$6.91

6

HOSE 3

8FP-12578-00-00

$28.49

7

CLIP(3BM)

90467-10135-00

$6.91

8

CLIP(3YX)

90467-13133-00

$5.13

9

SILENCER, INTAKE 1

8FP-14431-00-00

$108.49

10

SILENCER, INTAKE 2

8FP-14441-00-00

$127.58

11

PLATE, ELEMENT

8FP-14472-00-00

$59.11

12

ELEMENT, AIR CLEANER

8FP-14451-00-00

$24.54

13

HOOK

8FA-14436-00-00

$5.08

14

DAMPER 1

8FP-14425-00-00

$6.80

15

SEAL

8FP-14452-00-00

$11.42

16

PIPE

8FP-14419-00-00

$70.77

17

JOINT, AIR CLEANER 1

8FP-14453-01-00

Unavailable

18

BAND

1UA-82591-00-00

$4.12

19

HOSE CLAMP ASSY

90450-53007-00

$7.03

20

SENSOR, AIR TEMPERATURE

8FP-85886-00-00

$49.83

21

SCREW, PAN TAP.2 SLIT

97707-50620-00

$6.45

22

PIPE, DRAIN

8FA-1443E-00-00

$9.09

23

CLIP

90467-100A1-00

$6.38
