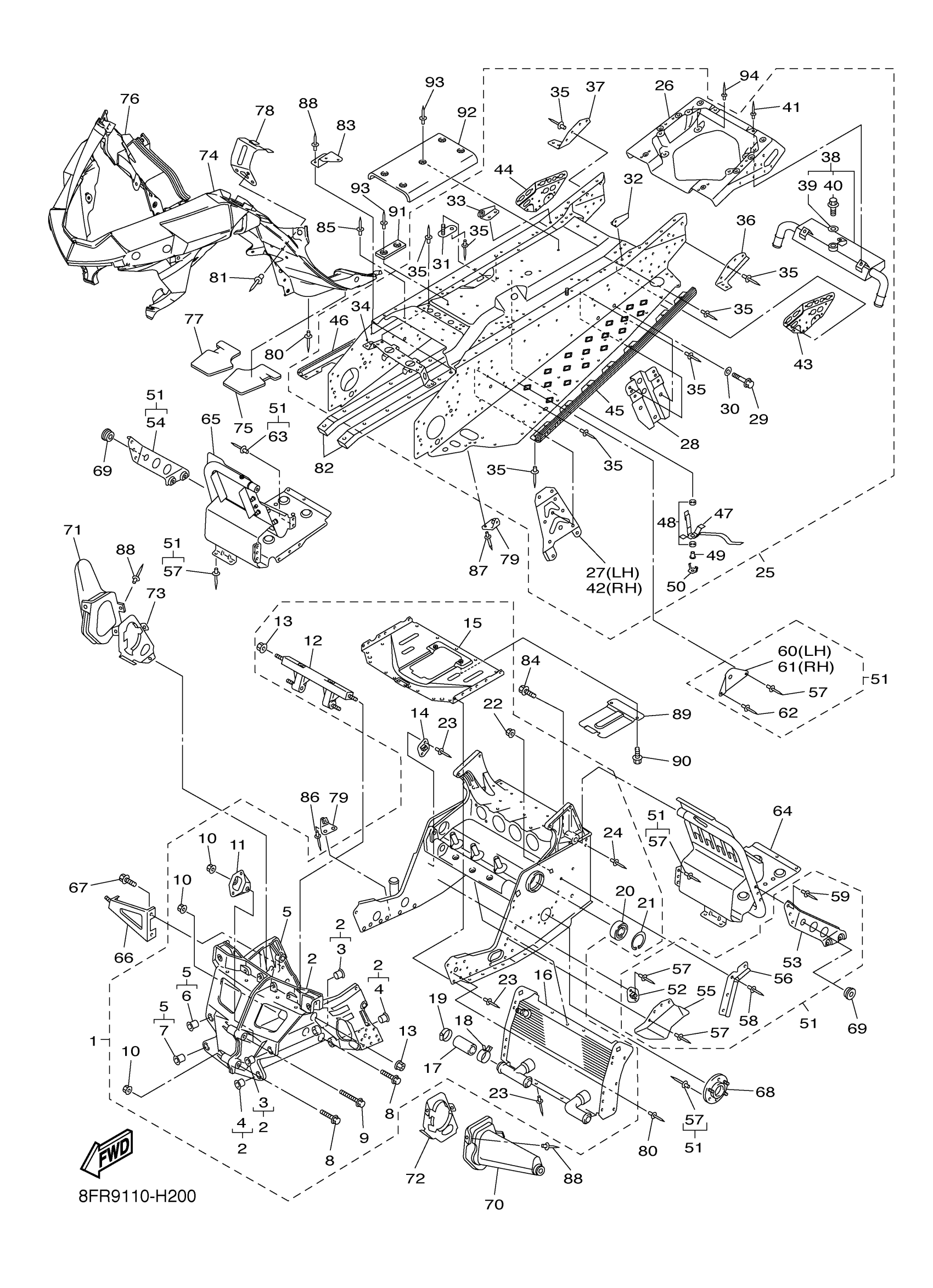

Yamaha RX10RYR (APEX_RTX) 8FR9 2009 FRAME 2 Diagram

#

Description
Price

1

FRONT FRAME COMP.

8FR-21940-00-00

$2,379.99

2

BULKHEAD

8FA-W2197-13-00

$475.74

3

BUSH, SOLID

90381-15001-00

$4.11

4

BUSH, SOLID

90381-16004-00

$12.91

5

BULKHEAD 2

8FA-W2198-20-00

Unavailable

6

BUSH, SOLID

90381-15001-00

$4.11

7

BUSH, SOLID

90381-16004-00

$12.91

8

BOLT, FLANGE

95817-08060-00

$3.28

9

BOLT, WASHER BASED

90105-084A1-00

$9.38

10

NUT, SELF-LOCKING

90185-08169-00

$7.09

11

BRACKET, REGULATOR

8FA-2128A-01-00

$8.25

12

BRACKET, STEERING 1

8FG-21947-00-00

$173.95

13

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.32

14

BRACKET, CHAIN HOUSING

8CR-21939-01-00

$5.35

15

PROTECTOR

8FR-2193A-01-00

$93.12

16

HEAT EXCHANGER ASSY

8FA-12440-00-00

Unavailable

17

HOSE 7

8FA-12551-00-00

$7.51

18

CLIP (8M6)

90467-28046-00

$12.43

19

HOSE CLAMP ASSY

90450-35001-00

$5.25

20

BEARING

93306-20650-00

$61.77

21

CIRCLIP(MF1)

99009-62500-00

$6.23

22

NUT, SELF-LOCKING

90185-08169-00

$7.09

23

RIVET, BLIND

90267-47195-00

$3.33

24

RIVET, BLIND

90267-48016-00

$7.85

25

REAR FRAME COMP.

8GU-21950-00-00

Unavailable

26

REINEFORCEMENT, FRAME REAR 1

8FA-W2199-10-00

$2,123.99

27

. BRACKET, MAIN TRACK 1

8GT-21943-00-00

Unavailable

28

. BRACKET, RR TRACK SUSPENSION

8ES-21944-00-00

Unavailable

29

. BOLT, FLANGE

95814-10022-00

Unavailable

30

WASHER, PLATE

90201-10064-00

$3.60

31

BRACKET, FUEL TANK 1

8CR-2194N-00-00

$3.14

32

BRACKET 1

8FA-2194X-00-00

$3.54

33

BRACKET 2

8FA-2195X-00-00

$3.54

34

PROTECTOR, MUFFLER

8FA-2194H-01-00

$67.91

35

RIVET, BLIND

90267-47195-00

$3.33

36

PATCH 3

8FA-21963-00-00

$7.83

37

PATCH 4

8FA-21964-00-00

$7.83

38

HEAT EXCHANGER ASSY 4

8ET-1241A-02-00

$274.97

39

WASHER, SEAL (7G5)

90210-06006-00

$5.72

40

BOLT, FLANGE

95817-06016-00

$1.49

41

RIVET, BLIND(3JB)

90267-48095-00

$2.00

42

. BRACKET, MAIN TRACK 2

8GT-21953-00-00

Unavailable

43

REINF., SUB FRAME 1

8FP-21928-00-00

$28.58

44

REINFORCEMENT, SUB FRAME 2

8FP-21938-00-00

Unavailable

45

REINFORCEMENT, FOOTREST 1

8FU-21926-00-00

$206.40

46

REINFORCEMENT, FOOTREST 2

8FU-21936-00-00

$206.40

47

STAY, MUFFER

8FR-2194L-00-00

$41.26

48

DAMPER, MUFFLER

8FA-14737-00-00

$3.89

49

COLLAR

90387-08084-00

Unavailable

50

. STAY, MUFFLER

8FR-2194J-00-00

Unavailable

51

FRAME CONNECTION KIT

8GU-W2195-00-00

$211.48

52

BRACKET, CHAIN HOUSING

8CR-21939-01-00

$5.35

53

BRACKET, 5

8FP-2196M-01-00

$25.69

54

BRACKET, 6

8FP-2197M-01-00

$25.69

55

COVER 2

8FP-2198G-01-00

$20.57

56

CLAMP, WIREHARNESS

8FA-21999-00-00

$7.25

57

RIVET, BLIND

90267-47195-00

$3.33

58

RIVET, BLIND

90267-48018-00

$7.35

59

RIVET, BLIND

90267-48177-00

$1.71

60

PATCH 6

8GT-21966-10-00

$12.38

61

PATCH 7

8GT-21967-10-00

$12.38

62

RIVET, BLIND

90267-47197-00

$1.56

63

RIVET, BLIND(8CR)

90267-47186-00

$2.31

64

FOOTREST COMP. 1

8FP-21960-01-00

$215.92

65

FOOTREST COMP. 2

8FP-21970-00-00

Unavailable

66

BRACKET, OIL TANK 1

8ES-2193E-00-00

$19.74

67

BOLT, FLANGE

95822-08014-00

$6.68

68

HOUSING, REINF SUB-ASSY(L.H)

8EK-21920-01-00

$17.68

69

GROMMET(4FU)

90480-13567-00

$3.88

70

COVER 1

8FU-2198F-01-00

$27.20

71

COVER 3

8FU-2198J-01-00

$27.20

72

PLATE, STRG BRACKET 1

8FU-2195E-01-00

$11.54

73

PLATE, STRG BRACKET 2

8FU-2195F-01-00

$11.54

74

FRAME UNDER 1

8FP-2196A-02-00

$60.31

75

DAMPER 2

8FP-77374-00-00

$4.39

76

FRAME, UNDER 2

8FP-2196E-02-00

$60.02

77

DAMPER 3

8FP-77375-00-00

$6.55

78

BRACKET, GUARD FITTING

8FP-21972-00-00

$31.89

79

BRACKET 3

8FA-2196F-00-00

$5.58

80

RIVET, BLIND

90267-48018-00

$7.35

81

RIVET, BLIND

90267-47200-00

$2.28

82

PROTECTOR, FRAME

8FA-21978-01-00

$61.58

83

BRACKET 7

8FA-2197N-01-00

$3.38

84

BOLT, FLANGE(8AB)

95817-08020-00

$7.00

85

RIVET, BLIND(8CR)

90267-47186-00

$2.31

86

RIVET, BLIND (22W)

90267-48083-00

$2.78

87

RIVET, BLIND(3JB)

90267-48095-00

$2.00

88

RIVET, BLIND

90267-47195-00

$3.33

89

PROTECTOR, FRAME FR

8FR-2197E-00-00

$42.43

90

BOLT, BUTTON HEAD

92012-06012-00

$2.49

91

SPACER

8FA-21998-00-00

$3.60

92

SHIELD, HEAT

8FG-23892-00-00

$43.78

93

RIVET, BLIND (8L0)

90267-48059-00

$2.46

94

RIVET, BLIND

90267-48177-00

$1.71
