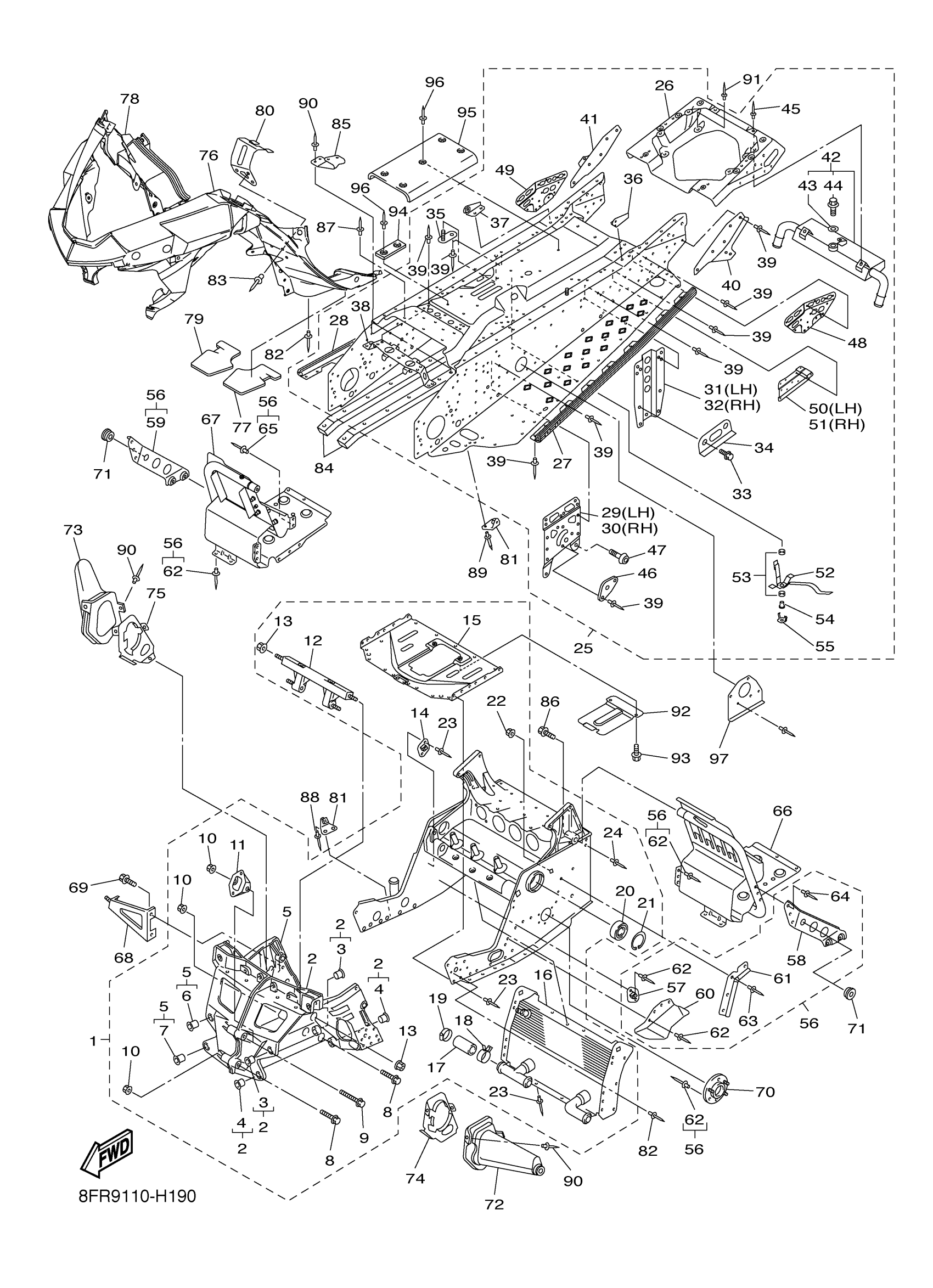

Yamaha RX10RYR (APEX_RTX) 8FR9 2009 FRAME 1 Diagram

#

Description
Price

1

FRONT FRAME COMP.

8FR-21940-00-00

$2,379.99

2

BULKHEAD

8FA-W2197-13-00

$475.74

3

BUSH, SOLID

90381-15001-00

$4.11

4

BUSH, SOLID

90381-16004-00

$12.91

5

BULKHEAD 2

8FA-W2198-20-00

Unavailable

6

BUSH, SOLID

90381-15001-00

$4.11

7

BUSH, SOLID

90381-16004-00

$12.91

8

BOLT, FLANGE

95817-08060-00

$3.28

9

BOLT, WASHER BASED

90105-084A1-00

$9.38

10

NUT, SELF-LOCKING

90185-08169-00

$7.09

11

BRACKET, REGULATOR

8FA-2128A-01-00

$8.25

12

BRACKET, STEERING 1

8FG-21947-00-00

$173.95

13

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.32

14

BRACKET, CHAIN HOUSING

8CR-21939-01-00

$5.35

15

PROTECTOR

8FR-2193A-01-00

$93.12

16

HEAT EXCHANGER ASSY

8FA-12440-00-00

Unavailable

17

HOSE 7

8FA-12551-00-00

$7.51

18

CLIP (8M6)

90467-28046-00

$12.43

19

HOSE CLAMP ASSY

90450-35001-00

$5.25

20

BEARING

93306-20650-00

$61.77

21

CIRCLIP(MF1)

99009-62500-00

$6.23

22

NUT, SELF-LOCKING

90185-08169-00

$7.09

23

RIVET, BLIND

90267-47195-00

$3.33

24

RIVET, BLIND

90267-48016-00

$7.85

25

REAR FRAME COMP.

8FR-21950-10-00

Unavailable

26

REINEFORCEMENT, FRAME REAR 1

8FA-W2199-10-00

$2,123.99

27

REINFORCEMENT, FOOTREST 1

8FG-21926-00-00

$130.40

28

REINFORCEMENT, FOOTREST 2

8FG-21936-00-00

$130.40

29

. BRACKET, MAIN TRACK 1

8FU-21943-00-00

Unavailable

30

BRACKET, MAIN TRACK 2

8FU-21953-00-00

Unavailable

31

BRACKET, RR.TRACK SUSPENTION 1

8FP-21944-00-00

Unavailable

32

BRACKET, RR.TRACK SUSPENTION 2

8FP-21954-00-00

$30.85

33

BOLT, FLANGE

95814-10020-00

$3.78

34

PATCH 8

8FU-21988-01-00

$8.00

35

BRACKET, FUEL TANK 1

8CR-2194N-00-00

$3.14

36

BRACKET 1

8FA-2194X-00-00

$3.54

37

BRACKET 2

8FA-2195X-00-00

$3.54

38

PROTECTOR, MUFFLER

8FA-2194H-01-00

$67.91

39

RIVET, BLIND

90267-47195-00

$3.33

40

PATCH 3

8FU-21963-00-00

$17.97

41

PATCH 4

8FU-21964-00-00

Unavailable

42

HEAT EXCHANGER ASSY 4

8ET-1241A-02-00

$274.97

43

WASHER, SEAL (7G5)

90210-06006-00

$5.72

44

BOLT, FLANGE

95817-06016-00

$1.49

45

RIVET, BLIND(3JB)

90267-48095-00

$2.00

46

BRACKET, MAIN TRACK 3

8FU-21919-00-00

$4.65

47

BOLT, BUTTON

92014-10020-00

$3.55

48

REINF., SUB FRAME 1

8FP-21928-00-00

$28.58

49

REINFORCEMENT, SUB FRAME 2

8FP-21938-00-00

Unavailable

50

REINFORCEMENT, FRAME REAR 3

8FJ-21924-00-00

Unavailable

51

REINFORCEMENT, FRAME REAR 4

8FJ-21934-00-00

$15.32

52

STAY, MUFFER

8FR-2194L-00-00

$41.26

53

DAMPER, MUFFLER

8FA-14737-00-00

$3.89

54

COLLAR

90387-08084-00

Unavailable

55

. STAY, MUFFLER

8FR-2194J-00-00

Unavailable

56

FRAME CONNECTION KIT

8FP-W2195-11-00

Unavailable

57

BRACKET, CHAIN HOUSING

8CR-21939-01-00

$5.35

58

BRACKET, 5

8FP-2196M-01-00

$25.69

59

BRACKET, 6

8FP-2197M-01-00

$25.69

60

COVER 2

8FP-2198G-01-00

$20.57

61

CLAMP, WIREHARNESS

8FA-21999-00-00

$7.25

62

RIVET, BLIND

90267-47195-00

$3.33

63

RIVET, BLIND

90267-48018-00

$7.35

64

RIVET, BLIND

90267-48177-00

$1.71

65

RIVET, BLIND(8CR)

90267-47186-00

$2.31

66

FOOTREST COMP. 1

8FP-21960-01-00

$215.92

67

FOOTREST COMP. 2

8FP-21970-00-00

Unavailable

68

BRACKET, OIL TANK 1

8ES-2193E-00-00

$19.74

69

BOLT, FLANGE

95822-08014-00

$6.68

70

HOUSING, REINF SUB-ASSY(L.H)

8EK-21920-01-00

$17.68

71

GROMMET(4FU)

90480-13567-00

$3.88

72

COVER 1

8FU-2198F-01-00

$27.20

73

COVER 3

8FU-2198J-01-00

$27.20

74

PLATE, STRG BRACKET 1

8FU-2195E-01-00

$11.54

75

PLATE, STRG BRACKET 2

8FU-2195F-01-00

$11.54

76

FRAME UNDER 1

8FP-2196A-02-00

$60.31

77

DAMPER 2

8FP-77374-00-00

$4.39

78

FRAME, UNDER 2

8FP-2196E-02-00

$60.02

79

DAMPER 3

8FP-77375-00-00

$6.55

80

BRACKET, GUARD FITTING

8FP-21972-00-00

$31.89

81

BRACKET 3

8FA-2196F-00-00

$5.58

82

RIVET, BLIND

90267-48018-00

$7.35

83

RIVET, BLIND

90267-47200-00

$2.28

84

PROTECTOR, FRAME

8FA-21978-01-00

$61.58

85

BRACKET 7

8FU-2197N-00-00

$18.03

86

BOLT, FLANGE(8AB)

95817-08020-00

$7.00

87

RIVET, BLIND(8CR)

90267-47186-00

$2.31

88

RIVET, BLIND (22W)

90267-48083-00

$2.78

89

RIVET, BLIND(3JB)

90267-48095-00

$2.00

90

RIVET, BLIND

90267-47195-00

$3.33

91

RIVET, BLIND

90267-48177-00

$1.71

92

PROTECTOR, FRAME FR

8FR-2197E-00-00

$42.43

93

BOLT, BUTTON HEAD

92012-06012-00

$2.49

94

SPACER

8FA-21998-00-00

$3.60

95

SHIELD, HEAT

8FG-23892-00-00

$43.78

96

RIVET, BLIND (8L0)

90267-48059-00

$2.46

97

PATCH 2

8FR-21962-00-00

$44.03
