- RX10RYR (APEX_RTX) 8FR9 2009
ELECTRICAL 1

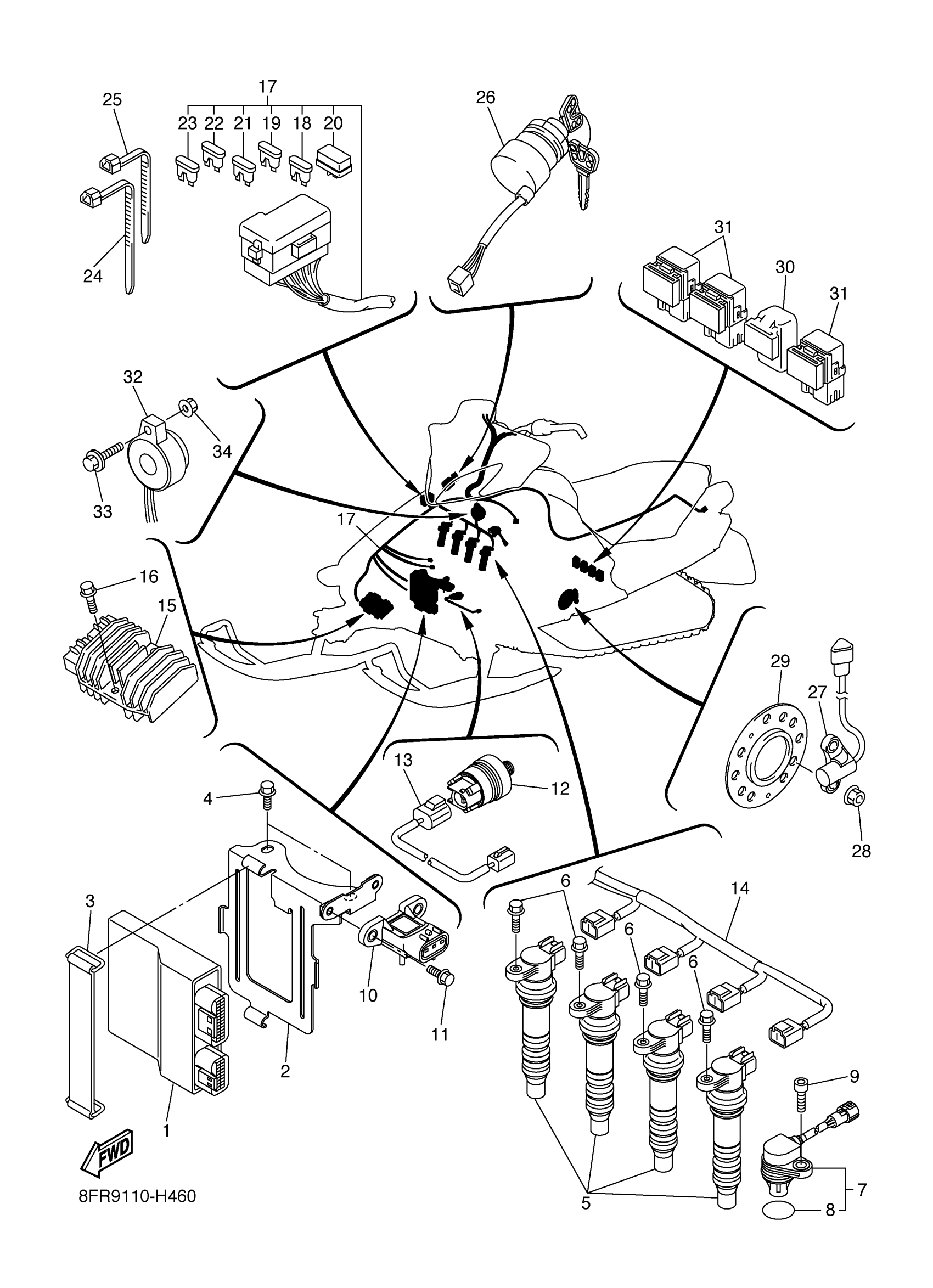

Yamaha RX10RYR (APEX_RTX) 8FR9 2009 ELECTRICAL 1 Diagram
#
1
ENGINE CONTROL UNIT ASSY
8FP-8591A-00-00
Unavailable
2
BRACKET, UNIT
8FP-85991-00-00
Unavailable
3
BAND, BATTERY
2T4-82131-00-00
$8.99
4
BOLT, FLANGE
95817-06016-00
$2.75
5
IGNITION COIL ASSY
8FP-82310-00-00
$220.99
6
BOLT, FLANGE
95817-06025-00
Unavailable
7
SENSOR, CAM POSITION
5VY-85896-02-00
$143.99
8
O-RING
4D9-81168-00-00
$6.99
9
BOLT,SOCKET HEAD
91314-06020-00
$1.49
10
SENSOR, PRESSURE
5PS-82380-00-00
$288.99
11
BOLT, FLANGE
95022-06012-00
$3.29
12
OIL PRESSURE SWITCH
8FP-82504-01-00
$71.99
13
WIRE, SUB-LEAD
8FP-82318-00-00
$15.99
14
LEAD WIRE ASSY
8FP-81515-02-00
Unavailable
15
RECTIFIER & REGULATOR ASSY
5JW-81960-00-00
$373.99
16
BOLT, FLANGE DEEP RECESS
95D95-06025-00
Unavailable
17
WIRE HARNESS ASSY
8FP-82590-10-00
Unavailable
18
FUSE
5JJ-82151-20-00
Unavailable
19
. FUSE (10A)
67F-82151-40-00
Unavailable
20
DIODE ASSY
4WA-81980-00-00
Unavailable
21
SLOW BLOW FUSE
JR9-82151-00-00
Unavailable
22
. FUSE (3A)
67F-82151-30-00
Unavailable
23
FISE (4A-BL)
5JJ-82151-40-00
Unavailable
24
CLAMP(4FM)
90464-15195-00
Unavailable
25
CLAMP
90464-13077-00
Unavailable
26
MAIN SWITCH ASSY
8FJ-82510-00-00
Unavailable
27
SENSOR, SPEED
8GK-83755-12-00
Unavailable
28
NUT, NYLON
95717-08300-00
Unavailable
29
HOUSING, FRONT AXLE
8EK-47551-00-00
Unavailable
30
RELAY ASSY
5DM-81950-01-00
Unavailable
31
RELAY ASSY (8FP-01)
8FP-81950-01-00
Unavailable
32
BUZZER
8CW-83383-00-00
Unavailable
33
SCREW, WITH WASHER
90159-05035-00
Unavailable
34
NUT, FLANGE
95702-05500-00
Unavailable
