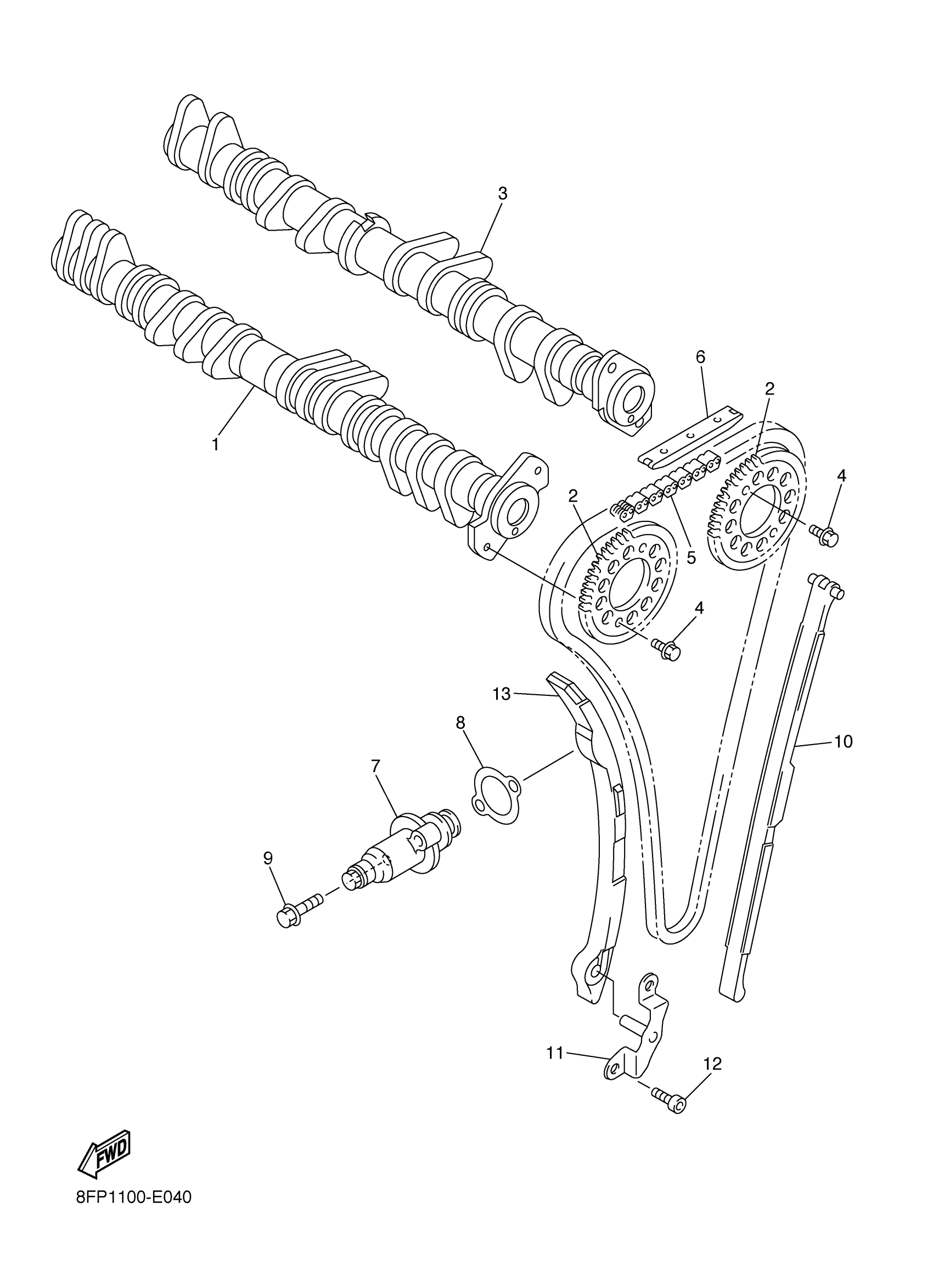

Yamaha RX10RYR (APEX_RTX) 8FR9 2009 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT 1

8FP-12171-00-00

Unavailable

2

SPROCKET, CAM CHAIN

8FP-12176-00-00

$77.85

3

CAMSHAFT 2

8FP-12181-00-00

$291.58

4

BOLT, FLANGE

90105-07004-00

$4.76

5

CHAIN

94591-61130-00

$33.28

6

GUIDE, STOPPER 2

5BE-12241-01-00

$24.35

7

TENSIONER ASSY, CAM CHAIN

8FP-12210-00-00

Unavailable

8

GASKET, TENSIONER CASE

4FM-12213-00-00

$7.45

9

BOLT, FLANGE

95022-06025-00

$1.49

10

DAMPER, CHAIN 1

4XV-12251-01-00

$46.84

11

PLATE, GUIDE STOPPER 1

8FA-12233-00-00

Unavailable

12

BOLT,SOCKET

91317-06012-00

$5.87

13

DAMPER, CHAIN 2

8FA-12252-00-00

Unavailable
