- RX10RW (APEX ER) 8FR5 2007
TRACK SUSPENSION 4

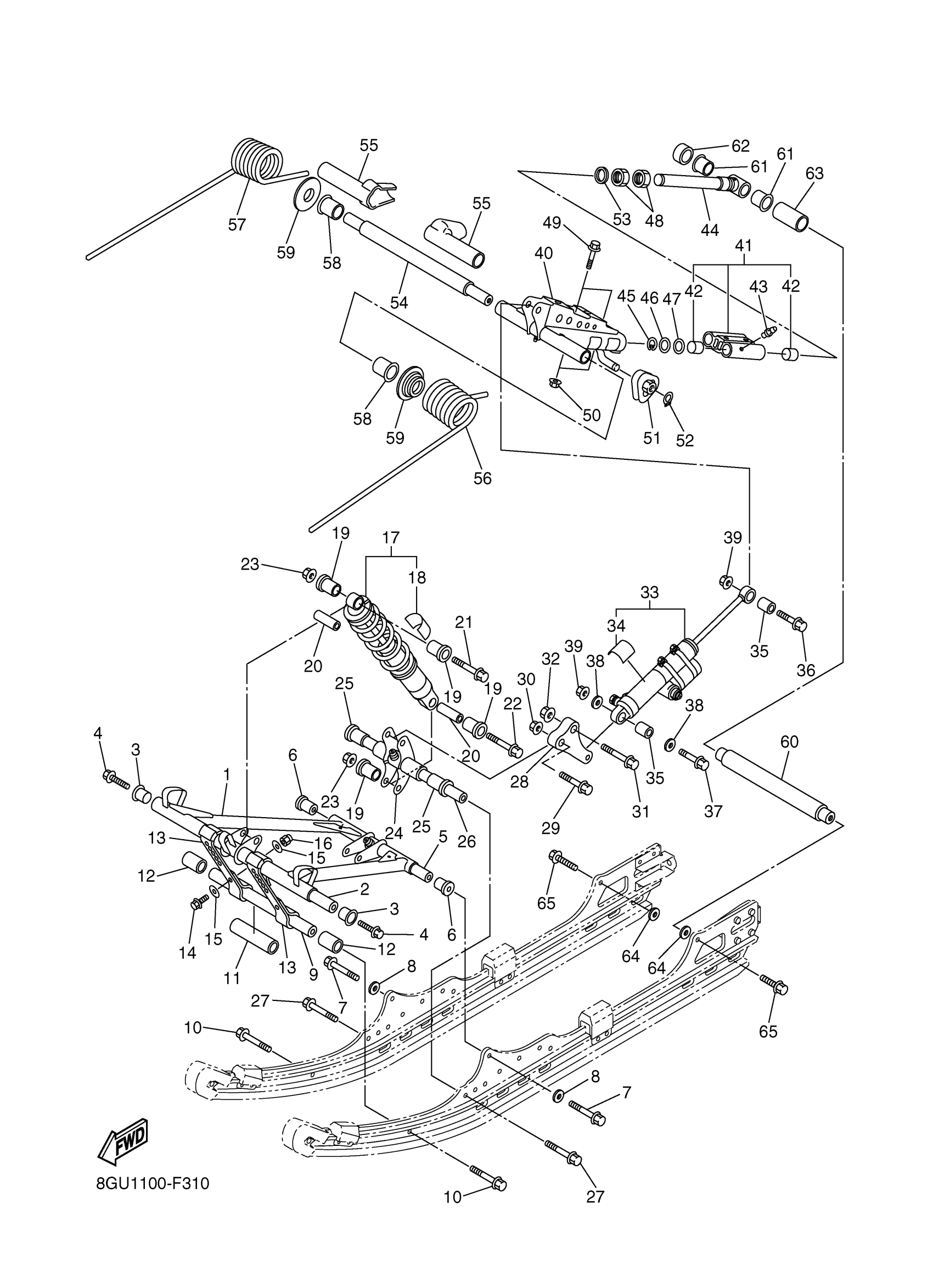

Yamaha RX10RW (APEX ER) 8FR5 2007 TRACK SUSPENSION 4 Diagram
#
1
ARM, PIVOT 1
8GT-47331-02-00
Unavailable
2
SHAFT 1
8GT-47465-00-00
Unavailable
3
BUSH
90386-25002-00
$34.99
4
BOLT (8V0)
90109-10771-00
$5.60
5
SHAFT 4
8ES-47486-00-00
$40.99
6
COLLAR
90387-10022-00
$18.99
7
BOLT, FLANGE
90105-10092-00
$4.82
8
WASHER, PLATE(8BV)
90201-100S7-00
$11.49
9
SHAFT 3
8ES-47485-00-00
$55.99
10
BOLT, FLANGE
90105-10092-00
$4.82
11
COLLAR
90387-19002-00
$7.49
12
COLLAR
90387-19001-00
$8.49
13
STOPPER 1
8GT-47495-00-00
$63.99
14
BOLT, HEXAGON
97017-06025-00
$4.24
15
WASHER, PLATE
90201-06747-00
$8.49
16
NUT, NYLON
95707-06300-00
Unavailable
17
SHOCK ABSORBER 2
8GT-47481-00-00
Unavailable
18
LABEL, WARNING
4AA-22259-60-00
Unavailable
19
BUSH, SOLID(8CM)
90381-14101-00
Unavailable
20
COLLAR (8U7)
90387-105G5-00
Unavailable
21
BOLT, FLANGE(4GB)
95817-10045-00
Unavailable
22
BOLT(88R)
90101-10738-00
Unavailable
23
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
24
BRACKET, ARM PIVOT
8GT-47349-01-00
Unavailable
25
BUSH
90386-20001-00
Unavailable
26
SHAFT 5
8ES-47487-00-00
Unavailable
27
BOLT, FLANGE
90105-10092-00
$4.82
28
BRACKET
8GT-4741B-00-00
Unavailable
29
BOLT, FLANGE(87Y)
95817-10055-00
Unavailable
30
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
31
BOLT, WASHER BASED
90105-12226-00
Unavailable
32
NUT, U FLANGE
95607-12200-00
Unavailable
33
SHOCK ABSORBER
8GT-47480-00-00
Unavailable
34
LABEL, WARNING
4AA-22259-60-00
Unavailable
35
COLLAR
90387-10023-00
Unavailable
36
BOLT, FLANGE
95817-10040-00
Unavailable
37
BOLT, FLANGE
90105-10122-00
Unavailable
38
WASHER, PLATE(3BM)
90201-105R9-00
Unavailable
39
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
40
ARM, PIVOT 2
8ES-47332-01-00
Unavailable
41
STOPPER, CONT. 1
8ES-4745D-00-00
Unavailable
42
BUSH, SOLID
90380-24001-00
Unavailable
43
NIPPLE, GREASE
93700-06M03-00
Unavailable
44
ROD, CONTROL 1
8ES-4745A-00-00
Unavailable
45
CIRCLIP
99009-24400-00
Unavailable
46
WASHER, PLATE
90201-24015-00
Unavailable
47
WASHER, PLATE
90202-25001-00
Unavailable
48
STOPPER, ADJUSTING NUT
8ES-48142-00-00
Unavailable
49
BOLT, FLANGE(87Y)
95817-10055-00
Unavailable
50
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
51
HOOK 2
8ES-47447-00-00
Unavailable
52
CIRCLIP(13H)
99009-14400-00
Unavailable
53
WASHER, PLATE
90202-25002-00
Unavailable
54
SHAFT 2
8ES-47475-01-00
Unavailable
55
PROTECTOR
8ES-47445-00-00
Unavailable
56
SPRING, REAR 1
8GF-47473-00-00
Unavailable
57
SPRING, REAR 2
8GF-47474-00-00
Unavailable
58
BUSH, SOLID(8CJ)
90381-28108-00
Unavailable
59
PLATE, GUIDE
8ES-47467-00-00
Unavailable
60
SHAFT, PIVOT
8ES-47337-00-00
Unavailable
61
BUSH
90386-25001-00
Unavailable
62
COLLAR
90387-26002-00
Unavailable
63
COLLAR
90387-26003-00
Unavailable
64
WASHER, PLATE
90201-10028-00
Unavailable
65
BOLT, FLANGE
95817-10030-00
Unavailable
