- RX10RW (APEX ER) 8FR5 2007
TRACK SUSPENSION 1

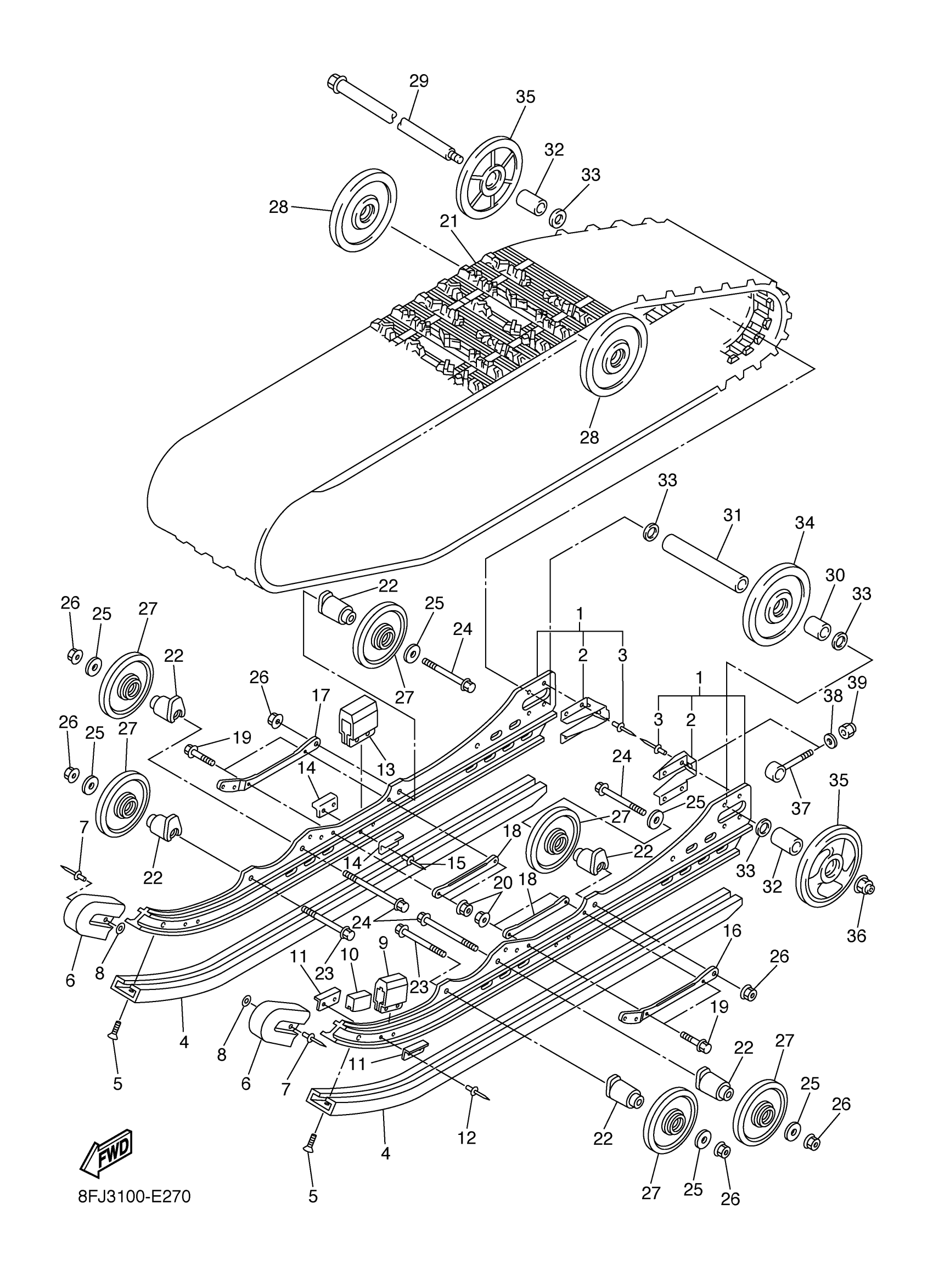

Yamaha RX10RW (APEX ER) 8FR5 2007 TRACK SUSPENSION 1 Diagram
#
1
FRAME, SLIDING
8FU-W4741-10-00
Unavailable
2
BRACKET
8DM-4741B-00-00
$45.99
3
RIVET
8V0-47468-00-00
$10.49
4
SLIDE RUNNER BLK 136''
SMA-8FT92-00-BK
Unavailable
5
SCREW, CROSSRECESS (8G6)
90151-06005-00
$9.49
6
RUNNER, SLIDING 2
8ED-47422-00-00
$46.99
7
RIVET BLIND
90267-48194-00
$3.28
8
WASHER, PLATE(8CM)
90201-047R8-00
$3.02
9
DAMPER 2
8AC-47457-00-00
$18.49
10
SPACER
8FR-47341-00-00
$13.99
11
PLATE, DAMPER
8AX-47458-00-00
$10.99
12
RIVET, BLIND
90267-48199-00
$3.76
13
DAMPER 2
8FP-47457-00-00
Unavailable
14
PLATE, DAMPER
8AX-47458-00-00
$10.99
15
RIVET, BLIND
90267-48199-00
$3.76
16
FRAME, SLIDING C
8FP-4741C-00-00
Unavailable
17
FRAME, SLIDING D
8FP-4741D-00-00
Unavailable
18
FRAME, SLIDING E
8FP-4741E-00-00
Unavailable
19
BOLT, FLANGE
95817-06030-00
Unavailable
20
NUT,SELF-LOCKING
95607-06200-00
Unavailable
21
TRACK ASSY
8FA-47110-10-00
Unavailable
22
BRACKET 7
8ES-47419-20-00
Unavailable
23
BOLT, WASHER BASED(4HM)
90105-10737-00
Unavailable
24
BOLT, WASHER BASED(3FA)
90105-10727-00
Unavailable
25
WASHER, PLATE(42X)
90201-105H3-00
Unavailable
26
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
27
SUSPENSION WHEEL ASSY
8ES-47310-41-00
Unavailable
28
GUIDE WHEEL ASSY
8CR-47550-00-00
Unavailable
29
REAR AXLE COMP.
8L8-47520-10-00
Unavailable
30
COLLAR
90387-20015-00
Unavailable
31
COLLAR
90387-20016-00
Unavailable
32
COLLAR
90387-20019-00
Unavailable
33
WASHER, PLATE(89W)
90201-205R6-00
Unavailable
34
GUIDE WHEEL ASSY
8CR-47550-10-00
Unavailable
35
WEIGHT
8EK-47550-11-00
Unavailable
36
NUT, SELF-LOCKING (8BF)
95607-14200-00
Unavailable
37
COLLAR 3
8DM-47479-00-00
Unavailable
38
WASHER(6TA)
92907-10600-00
Unavailable
39
NUT, NYLON
95707-10300-00
Unavailable
