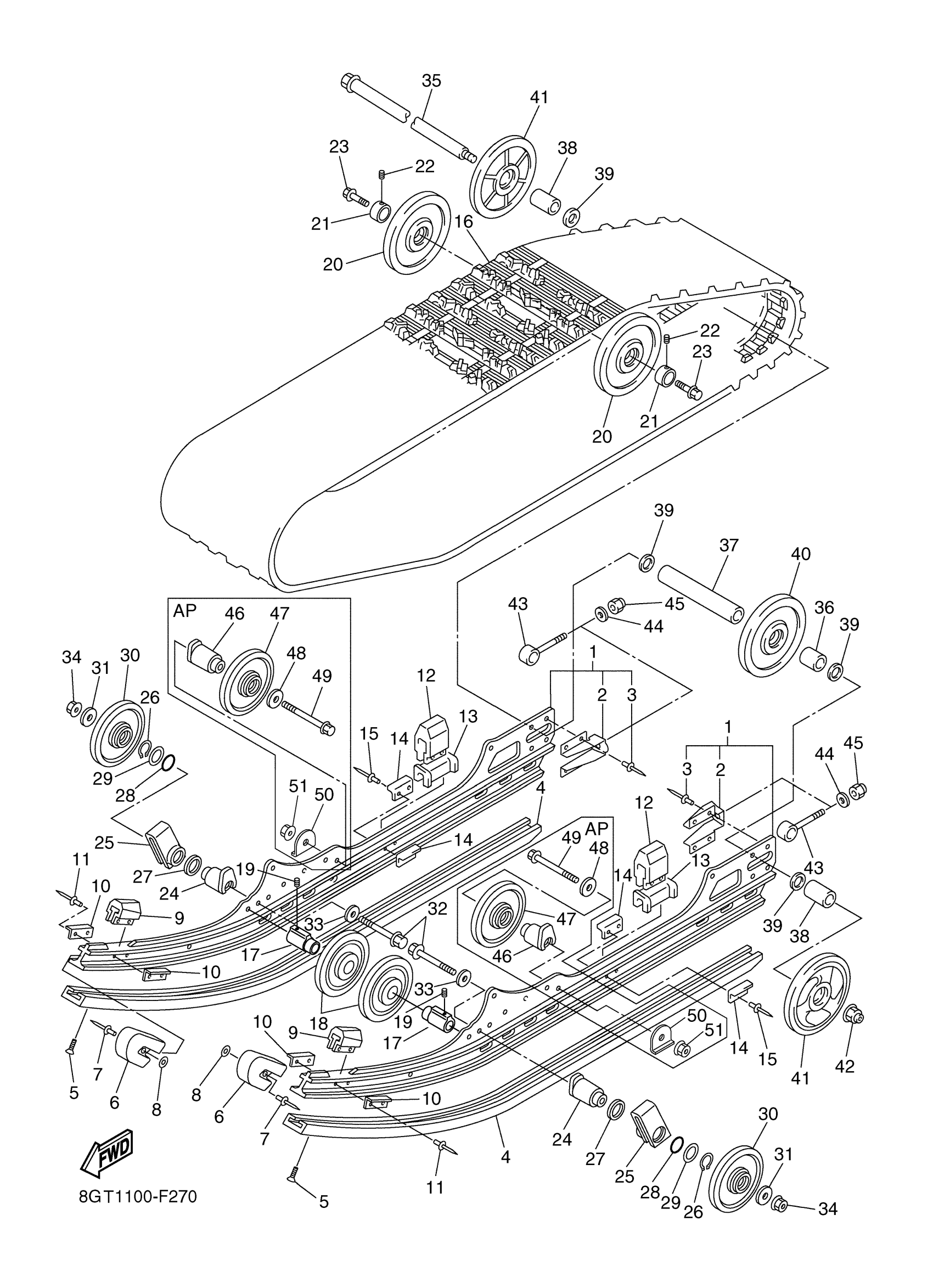

Yamaha RX10RTW (APEX RTX) 8GT1 2007 TRACK SUSPENSION 1 Diagram

#

Description
Price

1

FRAME, SLIDING

8ES-W4741-00-00

Unavailable

2

BRACKET

8DM-4741B-00-00

$45.99

3

RIVET

8V0-47468-00-00

$10.49

4

RUNNER, SLIDING 1

8ES-47421-00-00

$48.99

5

SCREW, CROSSRECESS (8G6)

90151-06005-00

$9.49

6

RUNNER, SLIDING 2

8ED-47422-00-00

$46.99

7

RIVET BLIND

90267-48194-00

$3.28

8

WASHER, PLATE(8CM)

90201-047R8-00

$3.02

9

DAMPER 1

8ES-47456-00-00

$6.99

10

PLATE, DAMPER

8K2-47458-01-00

$4.77

11

RIVET, BLIND

90267-48199-00

$3.76

12

DAMPER 2

8CM-47457-00-00

$16.49

13

SPACER

8CM-47341-00-00

$16.49

14

PLATE, DAMPER

8AX-47458-00-00

$10.99

15

RIVET, BLIND

90267-48199-00

$3.76

16

TRACK ASSY

8FA-47110-10-00

Unavailable

17

COLLAR

8ES-47319-01-00

Unavailable

18

SUSPENSION WHEEL ASSY

8ES-47310-41-00

Unavailable

19

BOLT, SET (8K2)

90113-06039-00

Unavailable

20

GUIDE WHEEL ASSY

8CR-47550-00-00

Unavailable

21

COLLAR 1

8ES-47365-00-00

Unavailable

22

BOLT, SET (8K2)

90113-06039-00

Unavailable

23

BOLT (8V0)

90109-10771-00

Unavailable

24

BRACKET 7

8ES-47419-10-00

Unavailable

25

HOOK 1

8ES-47446-00-00

Unavailable

26

CIRCLIP(6U2)

93410-35M10-00

Unavailable

27

O-RING (16G)

93210-35537-00

Unavailable

28

O-RING (21A)

93210-34633-00

Unavailable

29

WASHER, PLATE

90201-35013-00

Unavailable

30

SUSPENSION WHEEL ASSY

8ES-47310-41-00

Unavailable

31

WASHER, PLATE(42X)

90201-105H3-00

Unavailable

32

BOLT, FLANGE

95817-10080-00

Unavailable

33

WASHER, PLATE (17K)

90201-106F2-00

Unavailable

34

NUT, SELF-LOCKING(JN5)

95607-10200-00

Unavailable

35

REAR AXLE COMP.

8L8-47520-10-00

Unavailable

36

COLLAR

90387-20015-00

Unavailable

37

COLLAR

90387-20016-00

Unavailable

38

COLLAR

90387-20019-00

Unavailable

39

WASHER, PLATE(89W)

90201-205R6-00

Unavailable

40

GUIDE WHEEL ASSY

8CR-47550-10-00

Unavailable

41

GUIDE WHEEL ASSY

8EK-47550-30-00

Unavailable

42

NUT, SELF-LOCKING (8BF)

95607-14200-00

Unavailable

43

COLLAR 3

8DM-47479-00-00

Unavailable

44

WASHER(6TA)

92907-10600-00

Unavailable

45

NUT, NYLON

95707-10300-00

Unavailable

46

BRACKET 7

8ES-47419-00-00

Unavailable

47

SUSPENSION WHEEL ASSY

8ES-47310-41-00

Unavailable

48

WASHER, PLATE(42X)

90201-105H3-00

Unavailable

49

BOLT, FLANGE

95817-10080-00

Unavailable

50

WASHER, CLAW

90214-10003-00

Unavailable

51

NUT, SELF-LOCKING(JN5)

95607-10200-00

Unavailable
