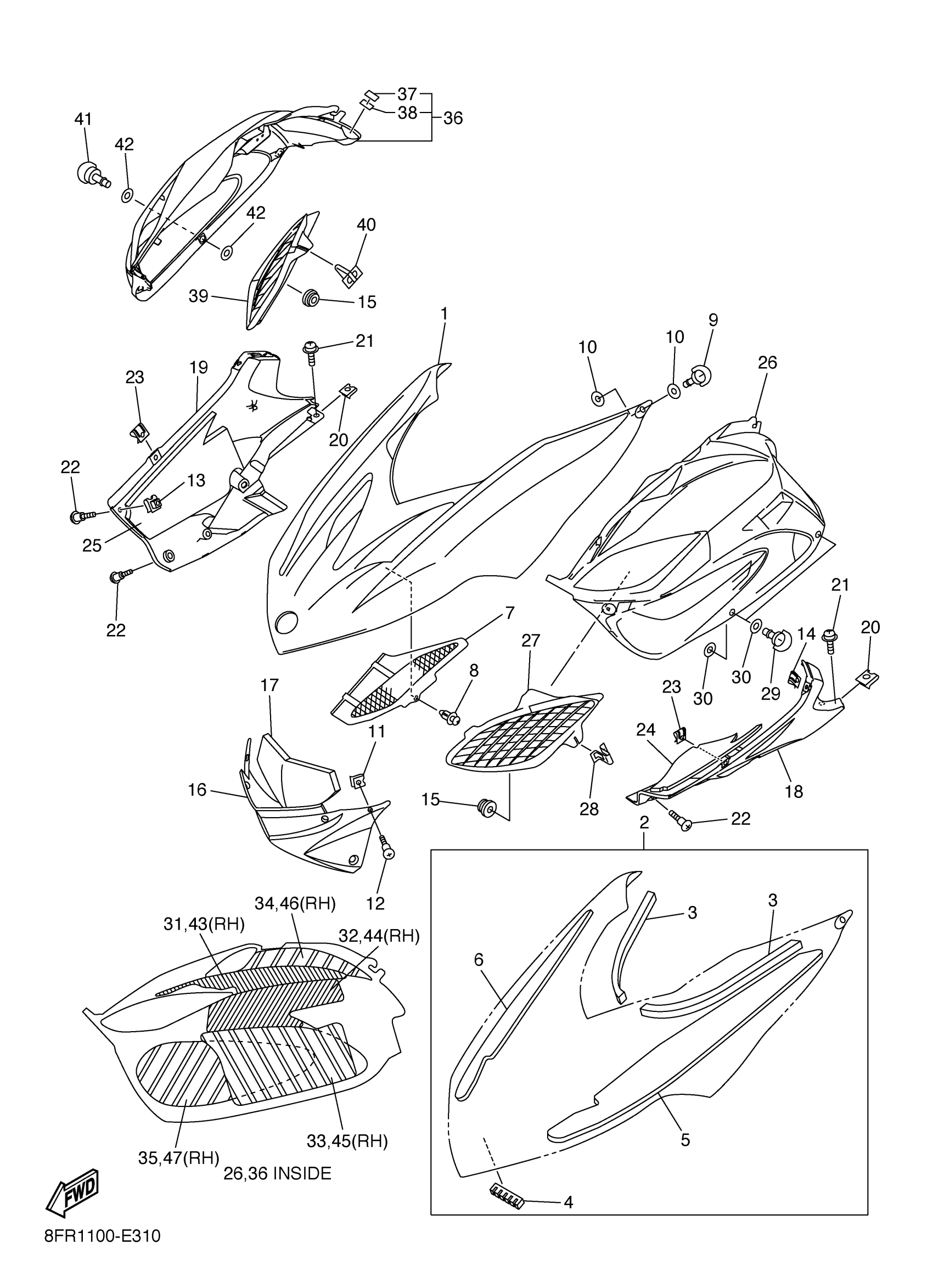

Yamaha RX10RTRXB (APEX RTX) 8GU3 2008 SHROUD Diagram
#
1
SHROUD
8FP-77111-01-33
$339.99
2
LINING SET
8FP-W7726-00-00
$21.99
3
TRIM 1
8FP-77165-00-00
$4.24
4
GUIDE 1
8FP-77123-00-00
$1.43
5
DAMPER, NOISE 11
8FP-77271-00-00
$5.60
6
DAMPER, NOISE 11
8FP-77271-10-00
$5.60
7
LOUVER 3
8FP-77133-00-00
Unavailable
8
RIVET
90269-06081-00
$7.49
9
HEAD
3FV-28386-00-00
$40.99
10
WASHER, SPECIAL 1
2TK-21757-00-00
$3.38
11
NUT, SPRING(4ES)
90183-06069-00
Unavailable
12
SCREW, BINDING
90154-06009-00
$4.61
13
NUT, SPRING
90183-06100-00
$10.49
14
PLATE, SPRING
4XV-2177L-01-00
$6.99
15
GROMMET
90480-13019-00
$5.60
16
PANEL, SUB FRAME 1
8FA-21912-00-00
Unavailable
17
DAMPER 1
8FP-77198-00-00
Unavailable
18
HOOD 1
8FP-21982-00-00
Unavailable
19
HOOD 2
8FP-21983-00-00
Unavailable
20
NUT, SPRING(4ES)
90183-06069-00
Unavailable
21
SCREW, WITH WASHER
90159-06011-00
Unavailable
22
SCREW, BINDING
90154-06009-00
$4.61
23
PLATE, SPRING
4XV-2177L-01-00
$6.99
24
DAMPER, NOISE 18
8FP-77278-00-00
Unavailable
25
DAMPER, NOISE 19
8FP-77279-00-00
Unavailable
26
HOOD 3
8FP-2197H-00-00
Unavailable
27
LOUVER 5
8FP-77109-00-00
Unavailable
28
CLIP
90468-06001-00
Unavailable
29
HEAD
3FV-28386-00-00
$40.99
30
WASHER, SPECIAL 1
2TK-21757-00-00
$3.38
31
DAMPER, NOISE 12
8FP-77272-00-00
Unavailable
32
DAMPER, NOISE 13
8FP-77273-00-00
Unavailable
33
DAMPER, NOISE 14
8FP-77274-00-00
Unavailable
34
DAMPER, SHROUD
8FP-77196-00-00
Unavailable
35
DAMPER
8FP-78316-00-00
Unavailable
36
HOOD ASSY 4
8FR-2198A-03-00
Unavailable
37
TAPE 2
8FR-7717F-00-00
Unavailable
38
PAD 1
8FR-77151-00-00
Unavailable
39
LOUVER 6
8FP-77108-00-00
Unavailable
40
CLIP
90468-06001-00
Unavailable
41
HEAD
3FV-28386-00-00
$40.99
42
WASHER, SPECIAL 1
2TK-21757-00-00
$3.38
43
DAMPER, NOISE 15
8FP-77275-00-00
Unavailable
44
DAMPER, NOISE 16
8FP-77276-01-00
Unavailable
45
DAMPER, NOISE 17
8FP-77277-01-00
Unavailable
46
DAMPER, SHROUD
8FP-77196-10-00
Unavailable
47
DAMPER
8FP-78316-10-00
Unavailable
