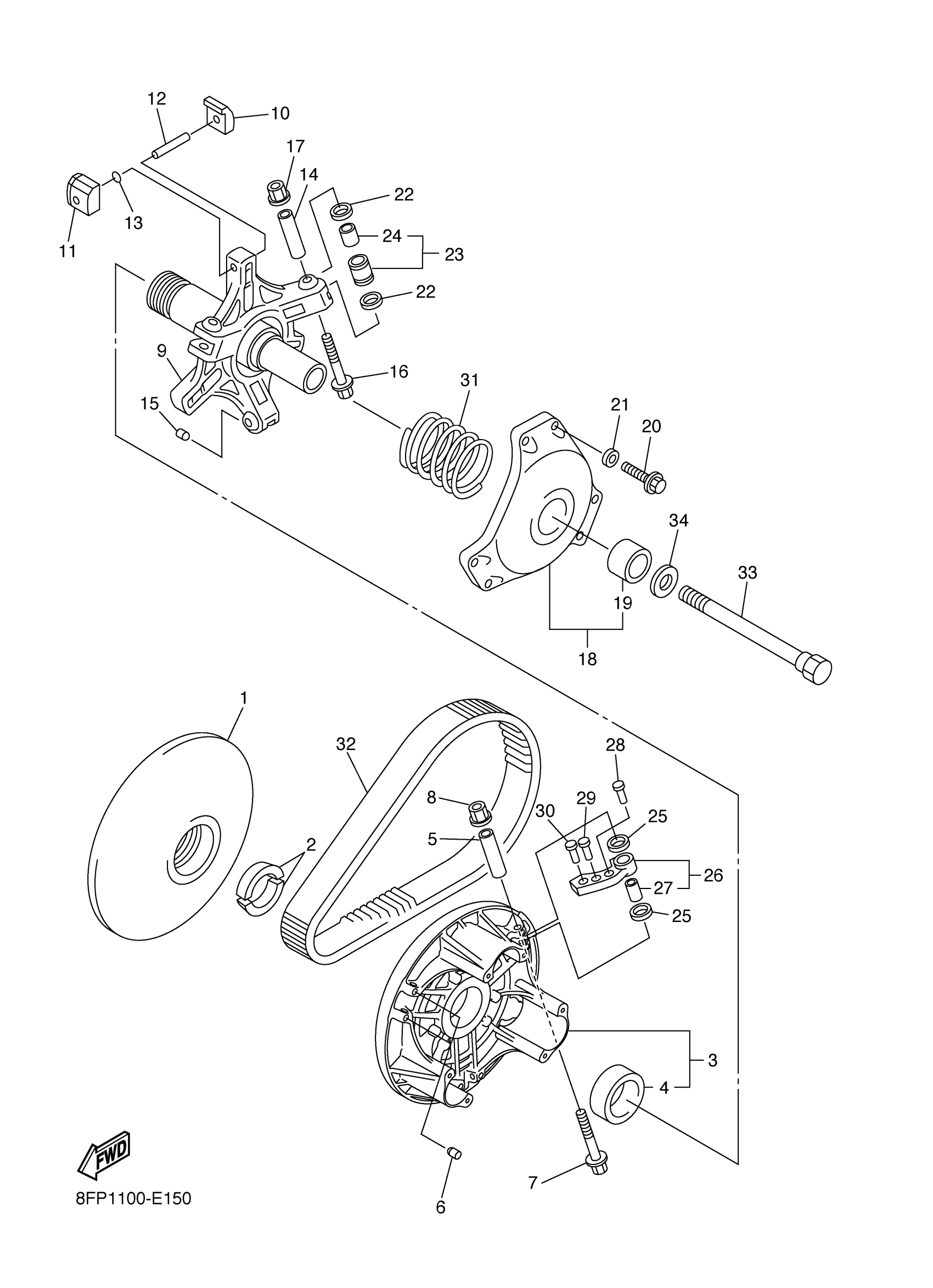

Yamaha RX10RTRXB (APEX RTX) 8GU3 2008 PRIMARY SHEAVE Diagram

#

Description
Price

1

SHEAVE, PRIMARY FIXED

8FA-17611-01-00

$206.99

2

STOPPER

8V0-17639-00-00

$14.99

3

PRIMARY SLIDING SHEAVE COMP.

8FP-17620-00-00

$437.99

4

BUSH, BIMETAL FORMED(8AS)

90384-41242-00

$60.99

5

COLLAR

90387-0514T-00

$16.99

6

BOLT, SET

90113-05041-00

$8.49

7

BOLT, WASHER BASED(88R)

90105-05644-00

$2.39

8

NUT, S/L FLANGE

95607-05200-00

$9.49

9

SPIDER COMPLETE

8FA-17640-02-00

Unavailable

10

SLIDER

8BW-17653-00-00

$16.49

11

SLIDER

8ES-17653-00-00

$25.99

12

PIN, SPRING (7F7)

91609-50032-00

$4.14

13

DAMPER, SLIDER

8ES-17655-00-00

$2.39

14

COLLAR

90387-0514U-00

$20.99

15

BOLT, SET

90113-05041-00

$8.49

16

BOLT, WASHER BASED(88R)

90105-05644-00

$2.39

17

NUT, S/L FLANGE

95607-05200-00

$9.49

18

PRIMARY SHEAVE CAP COMP.

8DF-17630-00-00

Unavailable

19

BUSH, SOLID(8CP)

90380-28237-00

Unavailable

20

BOLT, HEXAGON

97017-06030-00

Unavailable

21

WASHER(6TA)

92907-06600-00

Unavailable

22

WASHER, PLATE(8BV)

90202-09227-00

Unavailable

23

ROLLER, COMP

8FG-17624-00-00

Unavailable

24

BUSH

90386-09001-00

Unavailable

25

WASHER, PLATE(88R)

90202-08204-00

Unavailable

26

WEIGHT COMP

8FP-17605-00-00

Unavailable

27

BUSH

90386-08002-00

Unavailable

28

RIVET, COUNTERSUNK (8AB1)

90261-06033-00

Unavailable

29

RIVET, COUNTERSUNK (8AB1)

90261-06033-00

Unavailable

30

RIVET, COUNTERSUNK (8AB1)

90261-06033-00

Unavailable

31

SPRING, COMPRESSION

90501-582L1-00

Unavailable

32

V-BELT

8DN-17641-01-00

Unavailable

33

BOLT (L=156.5MM)

8V0-17647-10-00

Unavailable

34

WASHER(JN5)

92907-16100-00

Unavailable
