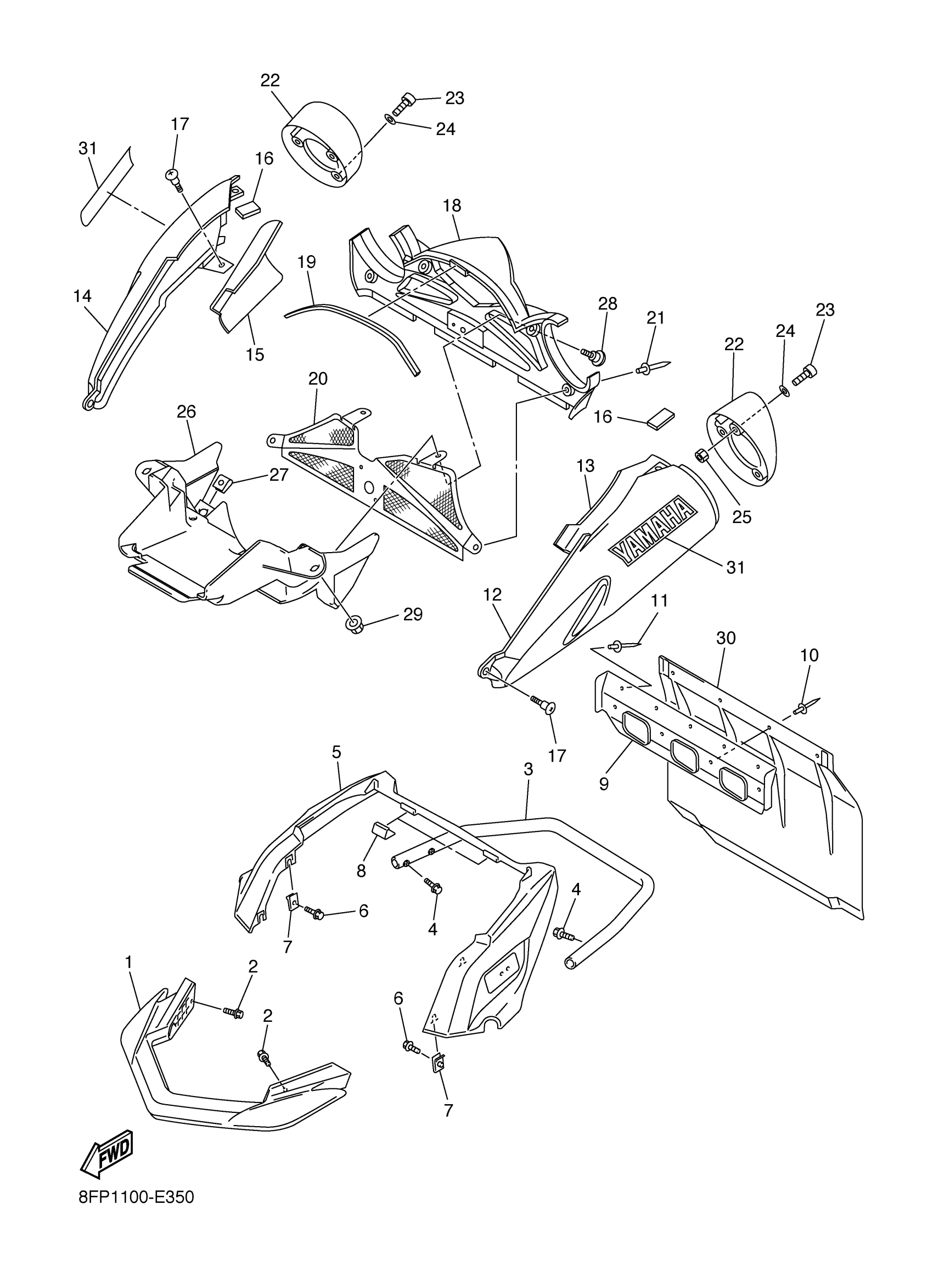

Yamaha RX10RTRL (APEX RTX ER (W/REVERSE)) 8FR3 2006 BUMPER Diagram
#
1
BUMPER, FRONT 1
8FA-77511-01-00
$250.99
2
BOLT, FLANGE(JN5)
95817-08016-00
$5.49
3
BUMPER, REAR 1
8FP-77541-01-00
Unavailable
4
BOLT, FLANGE(8AB)
95817-08020-00
$9.49
5
BUMPER, REAR 2
8FA-77542-00-00
Unavailable
6
BOLT, FLANGE
95817-06016-00
$2.75
7
NUT, SPRING(4ES)
90183-06069-00
Unavailable
8
TAPE 4
8FA-7717H-00-00
$1.25
9
STOPPER, FLAP
8FU-77596-00-00
Unavailable
10
RIVET, BLIND
90267-47200-00
$2.75
11
RIVET, BLIND(3JB)
90267-48095-00
$9.49
12
PROTECTOR 1
8FP-77551-01-P0
Unavailable
12
PROTECTOR 1
8FP-77551-01-P1
$116.99
13
LINING, SHROUD 1
8FP-77261-00-00
Unavailable
14
PROTECTOR 2
8FP-77552-01-P0
Unavailable
14
PROTECTOR 2
8FP-77552-01-P1
Unavailable
15
LINING, SHROUD 2
8FP-77262-00-00
Unavailable
16
LINING, SHROUD 3
8FP-77263-00-00
Unavailable
17
SCREW, BINDING
90154-06009-00
Unavailable
18
COVER, TAILLIGHT
8FP-84516-01-00
Unavailable
19
TRIM 8
8FP-77234-00-00
Unavailable
20
LOUVER 1
8FP-77441-00-00
Unavailable
21
RIVET, BLIND(8CH)
90267-47187-00
Unavailable
22
CAP
8FP-77517-00-00
Unavailable
23
BOLT,SOCKET HEAD
91314-06020-00
Unavailable
24
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
25
NUT, HEXAGON
95380-06600-00
Unavailable
26
BRACKET, TAILLIGHT
99999-03831-00
Unavailable
27
NUT, SPRING(4ES)
90183-06069-00
Unavailable
28
SCREW, BINDING
90154-06009-00
Unavailable
29
NUT,SELF-LOCKING
95607-06200-00
Unavailable
30
FLAP
8GT-K7595-00-00
Unavailable
31
EMBLEM, YAMAHA
99244-00140-00
Unavailable
