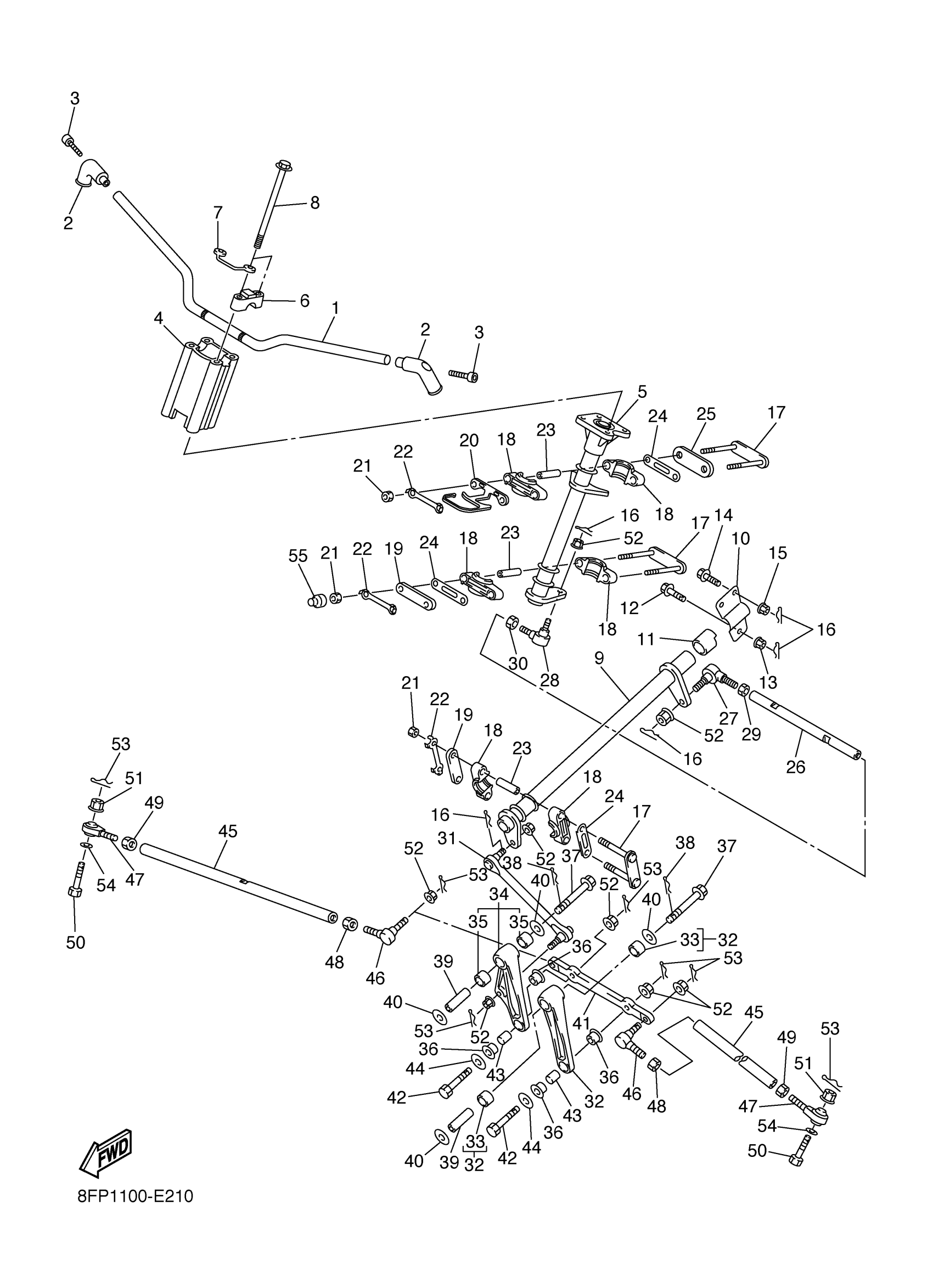

Yamaha RX10RTL (APEX RTX) 8FP1 2006 STEERING Diagram
#
1
HANDLEBAR
8FP-26111-10-00
Unavailable
2
END, GRIP
8FP-26246-00-00
Unavailable
3
BOLT
91318-06040-00
Unavailable
4
JOINT
8FP-2381B-00-00
Unavailable
5
COLUMN, STEERING 2
8FP-23813-00-00
Unavailable
6
HOLDER, HANDLE UPPER
3SP-23441-00-00
$27.99
7
HOLDER
8FP-23857-00-00
Unavailable
8
BOLT, FLANGE
90105-08116-00
Unavailable
9
COLUMN, STEERING
8FA-23811-00-00
Unavailable
10
COVER, STEERING
8FA-23818-02-00
$8.99
11
BEARING, STEERING UPPER
8FA-23873-01-00
$6.99
12
BOLT, WASHER BASED(4KD)
90105-10728-00
$30.99
13
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
14
BOLT, WASHER BASED(JA1)
90105-08552-00
$2.97
15
NUT, SELF-LOCKING
90185-08169-00
$8.49
16
CLIP 136253750000
90468-12006-00
Unavailable
17
HOLDER, BEARING
8FA-23872-00-00
Unavailable
18
PLANE BEARING, STEERING
8FA-23812-00-00
Unavailable
19
HOLDER 2
8FA-23867-00-00
Unavailable
20
HOLDER, BEARING
8FP-23872-00-00
Unavailable
21
NUT(6TA)
95337-08600-00
Unavailable
22
WASHER, LOCK 1
1UY-23894-01-00
Unavailable
23
COLLAR
90387-09006-00
Unavailable
24
WASHER, PLAIN
8FA-23843-00-00
Unavailable
25
WASHER, PLAIN
8FP-23843-00-00
Unavailable
26
ROD, STEERING
8FA-23828-00-00
Unavailable
27
JOINT, UNIVERSAL 3
8CR-23847-00-00
Unavailable
28
JOINT, UNIVERSAL 2
8CR-23845-10-00
Unavailable
29
NUT (3WP1)
95317-10700-00
Unavailable
30
NUT, HEXAGON (8A5)
90170-10186-00
Unavailable
31
ROD, STEERING RELAY
8FA-23821-00-00
Unavailable
32
ARM PIVOT ASSY
8FG-2389K-00-00
Unavailable
33
BUSH, FORMED
90383-17001-00
Unavailable
34
ARM PIVOT ASSY. , 2
8FA-2389M-00-00
Unavailable
35
BEARING
93317-41785-00
Unavailable
36
BUSH, SOLID
90381-14001-00
Unavailable
37
BOLT, FLANGE
90105-12017-00
Unavailable
38
CLIP, RING
8FA-2384N-00-00
Unavailable
39
COLLAR
8FA-2412G-00-00
Unavailable
40
WASHER, PLATE
90201-121U3-00
Unavailable
41
ARM, IDLER
8FU-23826-00-00
Unavailable
42
BOLT, PIN HOLE (8M6)
90102-10044-00
Unavailable
43
COLLAR
90387-10070-00
Unavailable
44
WASHER PLATE (3L6)
90201-10742-00
Unavailable
45
ROD, TIE
8ES-23831-00-00
Unavailable
46
JOINT, UNIVERSAL 2
8CR-23845-10-00
Unavailable
47
JOINT, UNIVERSAL 3
8FA-23847-00-00
Unavailable
48
NUT (3WP1)
95317-10700-00
Unavailable
49
NUT, HEXAGON (8A5)
90170-10186-00
Unavailable
50
BOLT, PIN HOLE (8M6)
90102-10044-00
Unavailable
51
NUT, NYLON
95707-10300-00
Unavailable
52
NUT, FLANGE(8AB)
95707-10500-00
Unavailable
53
PIN, COTTER
91490-20025-00
Unavailable
54
WASHER PLATE (3L6)
90201-08759-00
Unavailable
55
CAP 2
35R-25335-00-00
Unavailable
