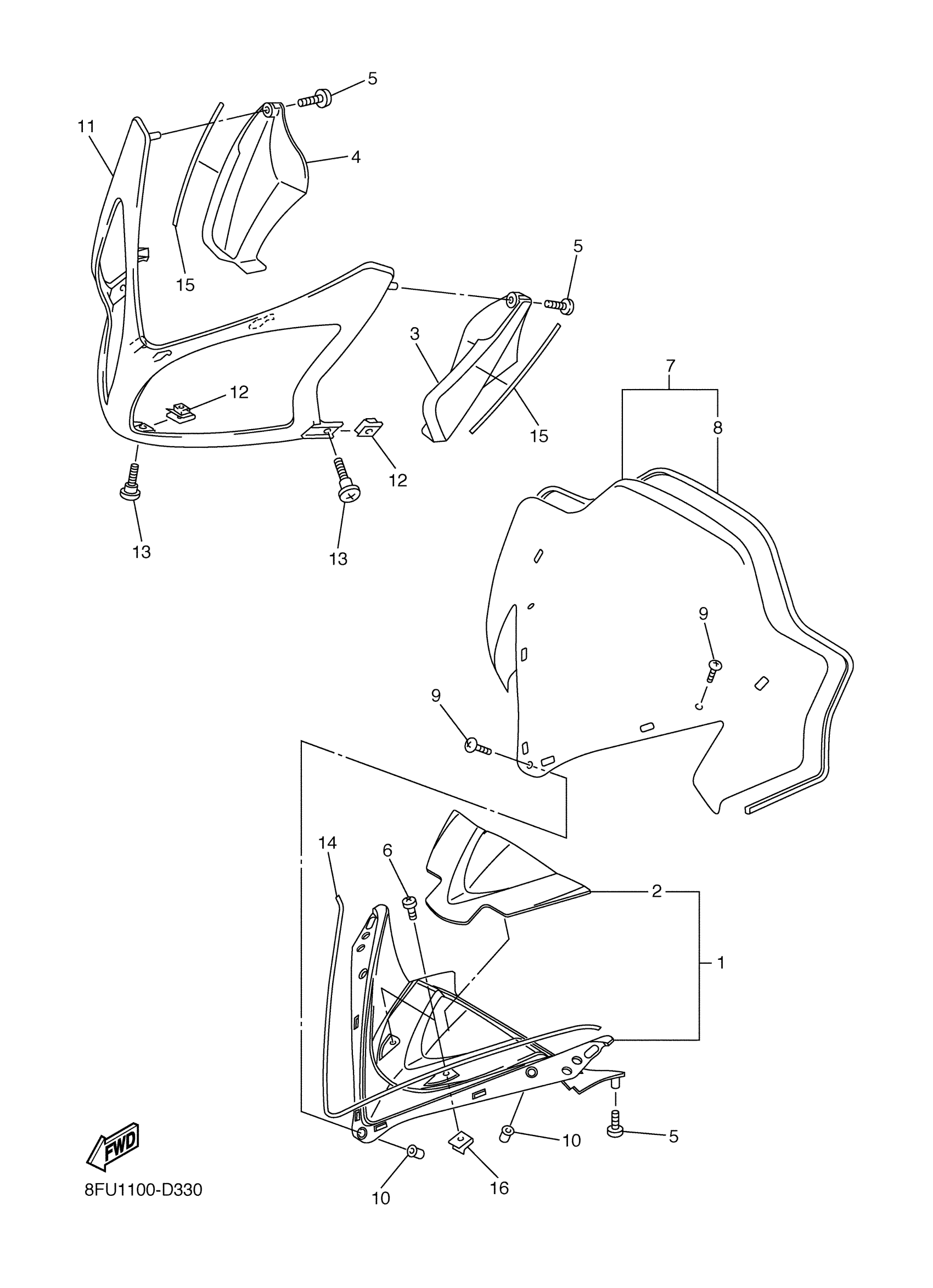

Yamaha RX10RSK (RX-1 ER LIMITED EDITION) 8FY11 2005 WINDSHIELD Diagram

#

Description
Price

1

COVER, HEADLIGHT

8ES-W7725-00-00

$352.99

1

COVER, HEADLIGHT

8FA-77251-01-00

$241.99

1

COVER, HEADLIGHT

8FA-77251-01-00

$241.99

2

DAMPER 1

8ES-77198-00-00

Unavailable

3

PLATE 1

8FA-77185-00-00

$57.99

4

PLATE 2

8FA-77186-00-00

$57.99

5

SCREW, TAPPING(4MV)

97707-50016-00

$2.19

6

SCREW, BINDING

98907-06014-00

$7.99

7

WINDSHIELD, CLR W/BLK

SMA-8FA96-30-BK

Unavailable

7

WINDSHIELD COMP.

8FV-K7210-00-00

Unavailable

7

WINDSHIELD COMP. LOW SMK

SMA-8FA96-10-SK

Unavailable

8

. TRIM, UPPER

8FJ-K7213-00-00

Unavailable

8

. TRIM, UPPER

8FY-K7213-00-00

Unavailable

9

SCREW, ROUND HEAD(1UX)

90150-05024-00

$5.60

10

NUT(1KT)

90179-05523-00

$8.49

11

FAIRING

8FA-77231-A1-33

Unavailable

11

FAIRING

8FA-77231-A1-33

Unavailable

11

FAIRING

8FA-77231-A0-P2

Unavailable

12

NUT, SPRING(4ES)

90183-06069-00

Unavailable

13

SCREW(2XF)

90149-06263-00

Unavailable

14

TRIM, LOWER

8FA-77214-00-00

Unavailable

15

TRIM 3

8FA-77215-00-00

Unavailable

16

NUT, SPRING(4ES)

90183-06069-00

Unavailable
