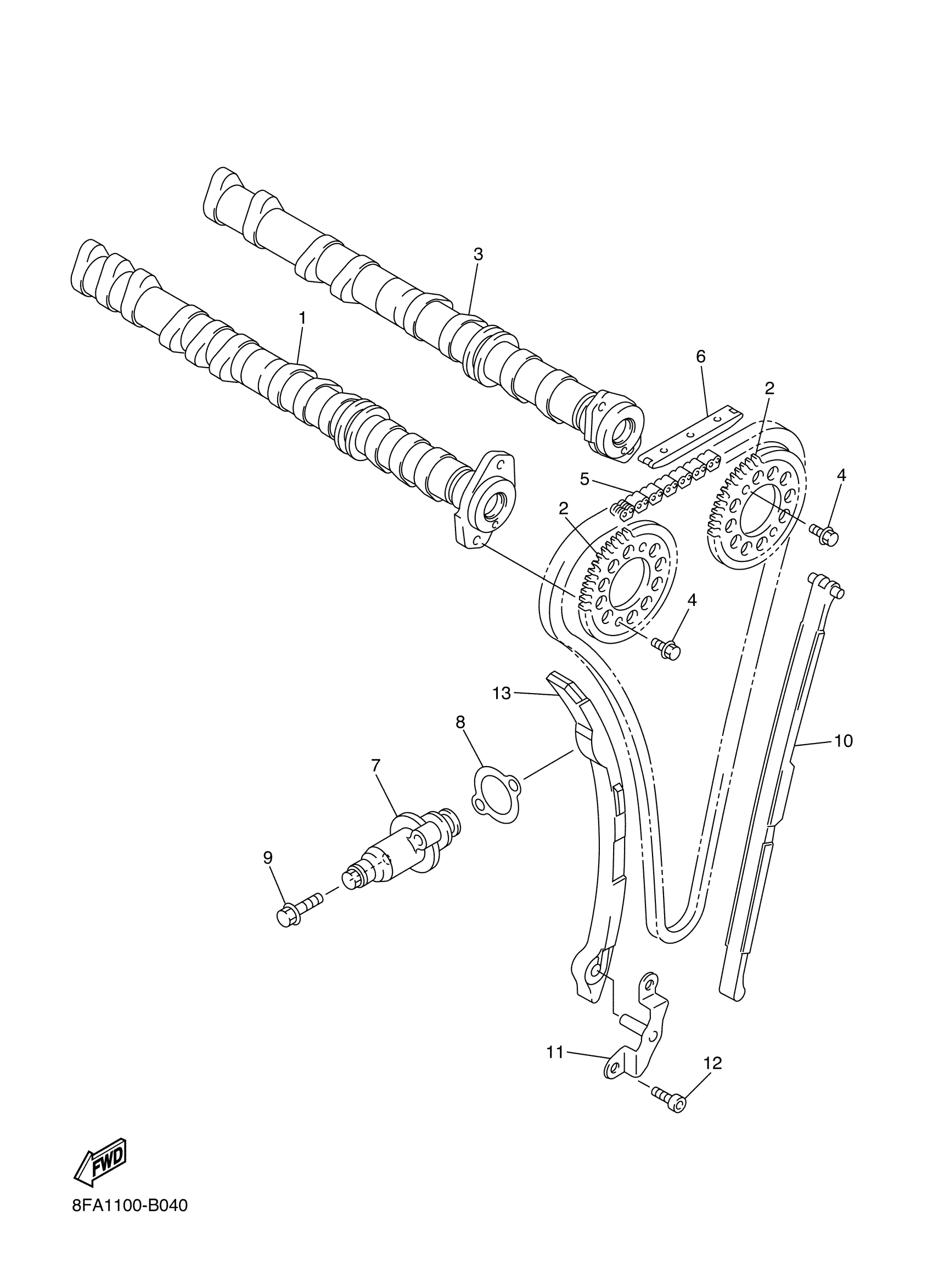

Yamaha RX10RSK (RX-1 ER LIMITED EDITION) 8FY11 2005 CAMSHAFT CHAIN Diagram

CAMSHAFT 1

5JJ-12171-00-00

Unavailable

SPROCKET, CAM CHAIN

4XV-12176-00-00

Unavailable

CAMSHAFT 2

5JJ-12181-00-00

Unavailable

BOLT, FLANGE

90105-07004-00

$5.60

CHAIN

94591-49130-00

$42.99

GUIDE, STOPPER 2

5BE-12241-01-00

$29.99

TENSIONER ASSY, CAM CHAIN

8FA-12210-00-00

Unavailable

GASKET, TENSIONER CASE

4FM-12213-00-00

$8.99

BOLT, SMALL FLANGE

95027-06025-00

$4.16

DAMPER, CHAIN 1

4XV-12251-01-00

$60.99

PLATE, GUIDE STOPPER 1

8FA-12233-00-00

Unavailable

BOLT,SOCKET

91317-06012-00

$8.49

DAMPER, CHAIN 2

8FA-12252-00-00

Unavailable
