- RX10RSJ (RX-1 ER LIMITED EDITION) 8EW3 2004
PRIMARY SHEAVE

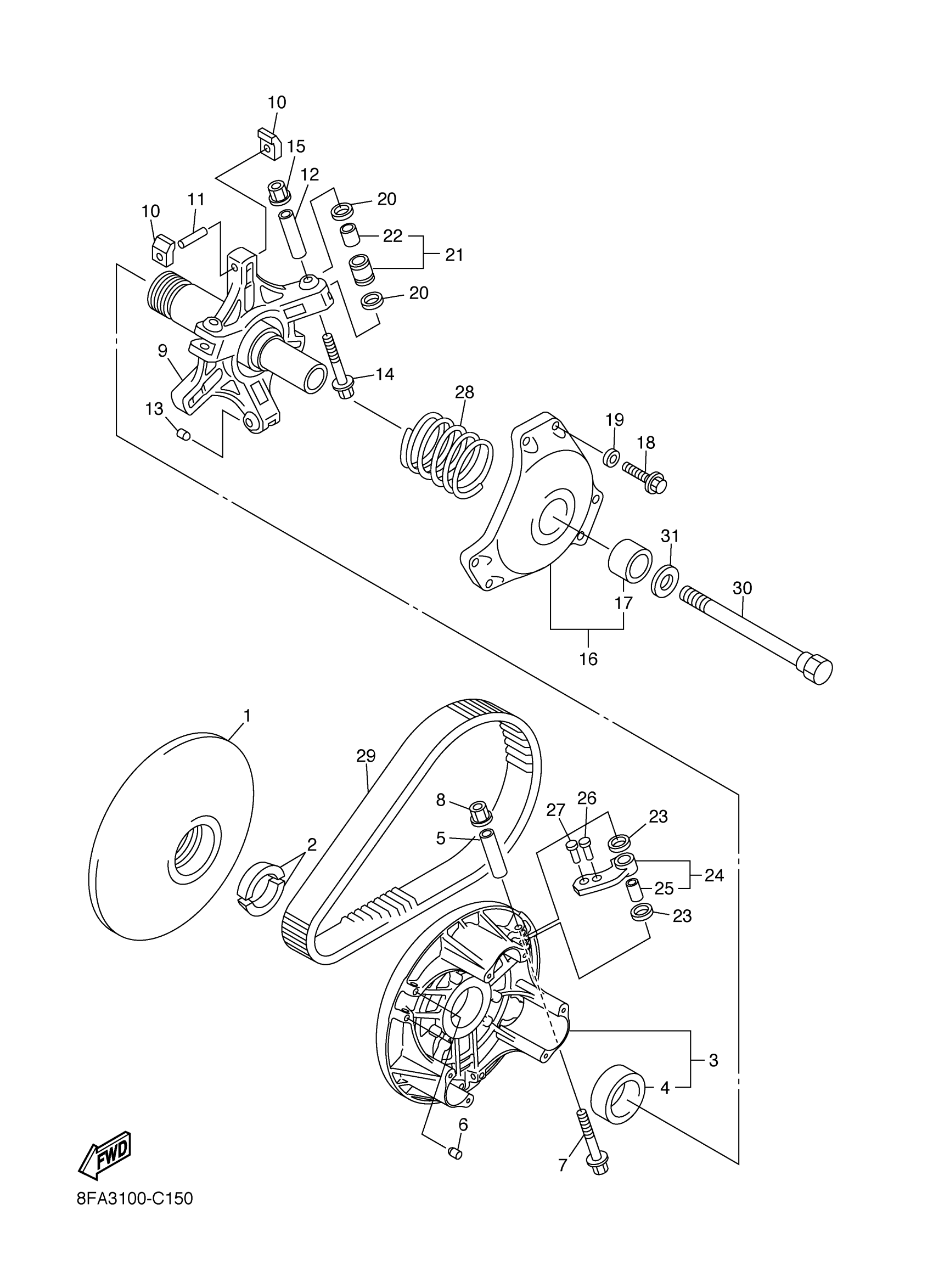

Yamaha RX10RSJ (RX-1 ER LIMITED EDITION) 8EW3 2004 PRIMARY SHEAVE Diagram
#
1
SHEAVE, PRIMARY FIXED
8FA-17611-01-00
$206.99
2
STOPPER
8V0-17639-00-00
$14.99
3
PRIMARY SLIDING SHEAVE COMP.
8FA-17620-00-00
Unavailable
4
BUSH, BIMETAL FORMED(8AS)
90384-41242-00
$60.99
5
COLLAR
90387-0514T-00
$16.99
6
BOLT, SET
90113-05041-00
$8.49
7
BOLT, WASHER BASED(88R)
90105-05644-00
$2.39
8
NUT, S/L FLANGE
95607-05200-00
$9.49
9
SPIDER COMPLETE
8FA-17640-02-00
Unavailable
10
SLIDER
8BW-17653-00-00
$16.49
11
PIN, SPRING (7F7)
91609-50032-00
$4.14
12
COLLAR
90387-0514U-00
$20.99
13
BOLT, SET
90113-05041-00
$8.49
14
BOLT, WASHER BASED(88R)
90105-05644-00
$2.39
15
NUT, S/L FLANGE
95607-05200-00
$9.49
16
PRIMARY SHEAVE CAP COMP.
8DF-17630-00-00
Unavailable
17
BUSH, SOLID(8CP)
90380-28237-00
Unavailable
18
BOLT, HEXAGON
97017-06030-00
Unavailable
19
WASHER(6TA)
92907-06600-00
Unavailable
20
WASHER, PLATE(8BV)
90202-09227-00
Unavailable
21
ROLLER, COMP
8FG-17624-20-00
Unavailable
22
BUSH
90386-09001-00
Unavailable
23
WASHER, PLATE(88R)
90202-08204-00
Unavailable
24
WEIGHT COMP
8FA-17605-10-00
Unavailable
25
BUSH
90386-08002-00
Unavailable
26
RIVET, COUNTERSUNK (8AB1)
90261-06033-00
Unavailable
27
RIVET
90269-06006-00
Unavailable
28
SPRING, COMPRESSION
90501-582L1-00
Unavailable
29
V-BELT
8DN-17641-01-00
Unavailable
30
BOLT (L=156.5MM)
8V0-17647-10-00
Unavailable
31
WASHER(JN5)
92907-16100-00
Unavailable
