Description

Price

1

C.D.I. UNIT ASSY

8FG-85540-00-00

Unavailable

2

BRACKET, UNIT

8FA-85991-00-00

$11.49

3

BOLT, FLANGE

95817-06010-00

$4.73

4

BOLT, FLANGE

95817-06020-00

$3.81

5

IGNITION COIL ASSY

8FA-82310-01-00

$178.99

6

RECTIFIER & REGULATOR ASSY

5JW-81960-00-00

$373.99

7

BOLT, FLANGE

95817-06025-00

Unavailable

8

WIRE HARNESS ASSY

8FG-82590-00-00

Unavailable

9

FUSE

5JJ-82151-20-00

$7.99

10

. FUSE (10A)

67F-82151-40-00

Unavailable

11

PLATE, COVER

8FA-8255V-00-00

Unavailable

12

CLAMP(4FM)

90464-15195-00

$4.41

13

CLAMP(4FM)

90464-15195-00

$4.41

14

CLAMP

90464-13077-00

$8.49

15

MAIN SWITCH ASSY

8FA-82510-01-00

$81.99

16

CAP, KEY

526-82579-00-00

Unavailable

17

SENSOR, SPEED

8FP-83755-01-00

Unavailable

18

NUT, NYLON

95717-08300-00

Unavailable

19

HOUSING, FRONT AXLE

8EK-47551-00-00

Unavailable

20

RELAY ASSY

5DM-81950-01-00

Unavailable

21

RELAY ASSY (8DM-00)

8DM-81950-00-00

Unavailable

22

BUZZER

8CW-83383-00-00

Unavailable

23

BOLT(3JK)

97027-05020-00

Unavailable

24

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

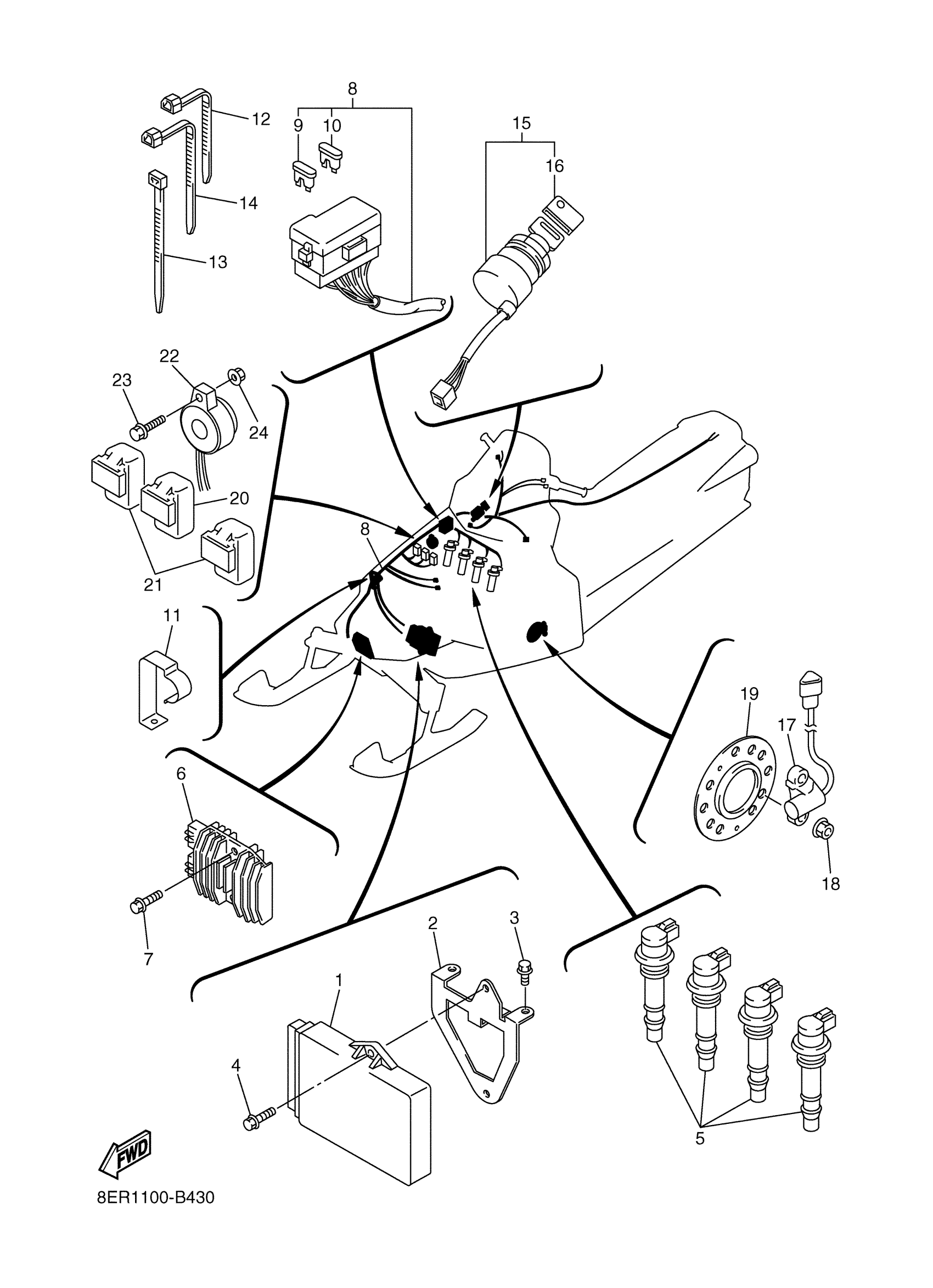

Yamaha RX10RSJ (RX-1 ER LIMITED EDITION) 8EW3 2004 ELECTRICAL 1 Diagram

C.D.I. UNIT ASSY

BRACKET, UNIT

BOLT, FLANGE

BOLT, FLANGE

IGNITION COIL ASSY

RECTIFIER & REGULATOR ASSY

BOLT, FLANGE

WIRE HARNESS ASSY

FUSE

. FUSE (10A)

PLATE, COVER

CLAMP(4FM)

CLAMP(4FM)

CLAMP

MAIN SWITCH ASSY

CAP, KEY

SENSOR, SPEED

NUT, NYLON

HOUSING, FRONT AXLE

RELAY ASSY

RELAY ASSY (8DM-00)

BUZZER

BOLT(3JK)

NUT, FLANGE(3GM)
