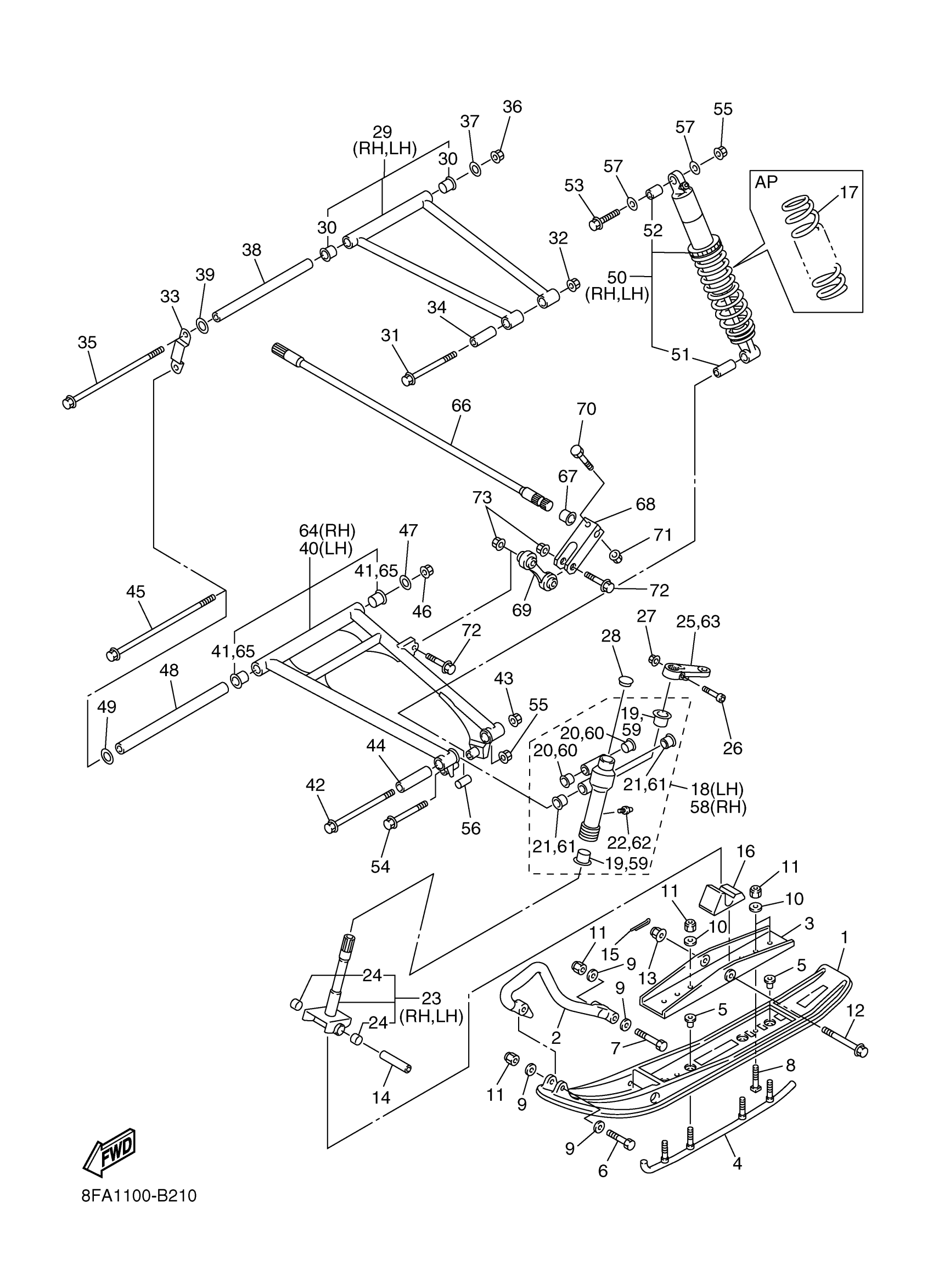

Yamaha RX10RSH (RX-1 ER LE) 8EW1 2003 SKI Diagram
#
1
SKI 1
8EN-23711-00-BK
Unavailable
2
BLACK 8DM HANDLE PLASTIC
8DM-23712-00-BK
Unavailable
2
BLUE 8DM HANDLE PLASTIC
8DM-23712-00-BU
Unavailable
2
RED 8DM HANDLE PLASTIC
8DM-23712-00-RD
Unavailable
3
SADDLE 1
8DM-23766-00-00
Unavailable
4
RUNNER
8EN-23731-00-XX
Unavailable
5
BUSH, SKI 1
8EK-F3751-00-00
Unavailable
6
BOLT, HEXAGON
97017-08055-00
$9.49
7
BOLT, HEXAGON
97027-08100-00
$5.60
8
BOLT, SQUARE
90108-08002-00
$12.49
9
WASHER, PLATE (3L7)
90201-08784-00
$3.23
10
WASHER, PLATE(3XP)
90201-086P8-00
$4.77
11
NUT, NYLON
95717-08300-00
$2.70
12
BOLT, WASHER BASED(8AB)
90105-10712-00
$17.99
13
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
14
COLLAR
90387-1012H-00
Unavailable
15
PIN, COTTER
91490-20025-00
Unavailable
16
STOPPER 1
8CR-23743-10-00
Unavailable
17
SPRING ASSY 1 (K=2.1)
8FA-23760-00-00
Unavailable
17
SPRING ASSY 1 (K=1.9)
8FA-23760-10-00
Unavailable
17
SPRING ASSY 1 (K=1.7)
8FA-23760-20-00
Unavailable
18
STEERING KNUCKLE ASSY (LEFT)
8FA-23501-01-00
Unavailable
19
BUSH, SOLID
90381-25115-00
Unavailable
20
BUSH, SOLID(3GG)
90381-15088-00
Unavailable
21
BUSH, SOLID
90381-18N51-00
Unavailable
22
NIPPLE, GREASE
93700-06M03-00
Unavailable
23
COLUMN, SKI ASSY
8FG-23803-00-00
Unavailable
24
BUSH, BIMETAL FORMED(8CJ)
90384-16251-00
Unavailable
25
ARM, OUTSIDE 1
8FA-23851-00-00
Unavailable
26
BOLT, SOCKET
91317-08045-00
Unavailable
27
NUT, SELF-LOCKING
90185-08169-00
Unavailable
28
CAP, CASE
3YK-22472-40-00
Unavailable
29
FRONT UPPER ARM COMP. (LEFT)
8FA-23540-00-00
Unavailable
30
BUSH, SOLID(3GG)
90381-15088-00
Unavailable
31
BOLT, FLANGE
90105-10N51-00
Unavailable
32
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
33
WASHER 1
8FA-23737-00-00
Unavailable
34
COLLAR
90387-10099-00
Unavailable
35
BOLT, FLANGE
90105-10N53-00
Unavailable
36
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
37
WASHER, PLATE (17K)
90201-106F2-00
Unavailable
38
COLLAR
90387-10N52-00
Unavailable
39
WASHER
90209-15N50-00
Unavailable
40
FRONT LOWER ARM COMP. (LEFT)
8FG-23570-00-00
Unavailable
41
BUSH, SOLID
90381-16N51-00
Unavailable
42
BOLT, FLANGE
90105-12N54-00
Unavailable
43
NUT, U FLANGE
95607-12200-00
Unavailable
44
COLLAR
90387-12N54-00
Unavailable
45
BOLT, FLANGE
90105-10N52-00
Unavailable
46
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
47
WASHER, PLATE (17K)
90201-106F2-00
Unavailable
48
COLLAR
90387-10N53-00
Unavailable
49
WASHER
90209-15N50-00
Unavailable
50
ABSORBER ASSY 1
8FA-2376A-00-00
Unavailable
51
. BUSH, FORMED
90383-12N50-00
Unavailable
52
DAMPER, BUSH B
8FA-2331R-00-00
Unavailable
53
BOLT, WASHER BASED (4K0)
90105-10169-00
Unavailable
54
BOLT, WASHER BASED(59V)
90105-10392-00
Unavailable
55
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
56
COLLAR
90387-10N57-00
Unavailable
57
WASHER, PLATE (17K)
90201-106F2-00
Unavailable
58
STEERING KNUCKLE ASSY (RIGHT)
8FA-23502-01-00
Unavailable
59
BUSH, SOLID
90381-25115-00
Unavailable
60
BUSH, SOLID(3GG)
90381-15088-00
Unavailable
61
BUSH, SOLID
90381-18N51-00
Unavailable
62
NIPPLE, GREASE
93700-06M03-00
Unavailable
63
ARM, OUTSIDE 2
8FA-23852-00-00
Unavailable
64
FRONT LOWER ARM COMP. (RIGHT)
8FG-23580-00-00
Unavailable
65
BUSH, SOLID
90381-16N51-00
Unavailable
66
BAR, STABILIZER FRONT
8FA-2386E-00-00
Unavailable
67
BUSH, STABILIZER FRONT
8FA-2386G-00-00
Unavailable
68
ARM, STABILIZER 1
8FA-2386L-00-00
Unavailable
69
JOINT, STABILIZER 1
8FA-2385L-00-00
Unavailable
70
BOLT, HEXAGON (538)
90101-06278-00
Unavailable
71
NUT, U FLANGE
95604-06200-00
Unavailable
72
BOLT, FLANGE(4FM)
95814-08030-00
Unavailable
73
NUT, U FLANGE(4KG)
95604-08200-00
Unavailable
