CRANKSHAFT PISTON

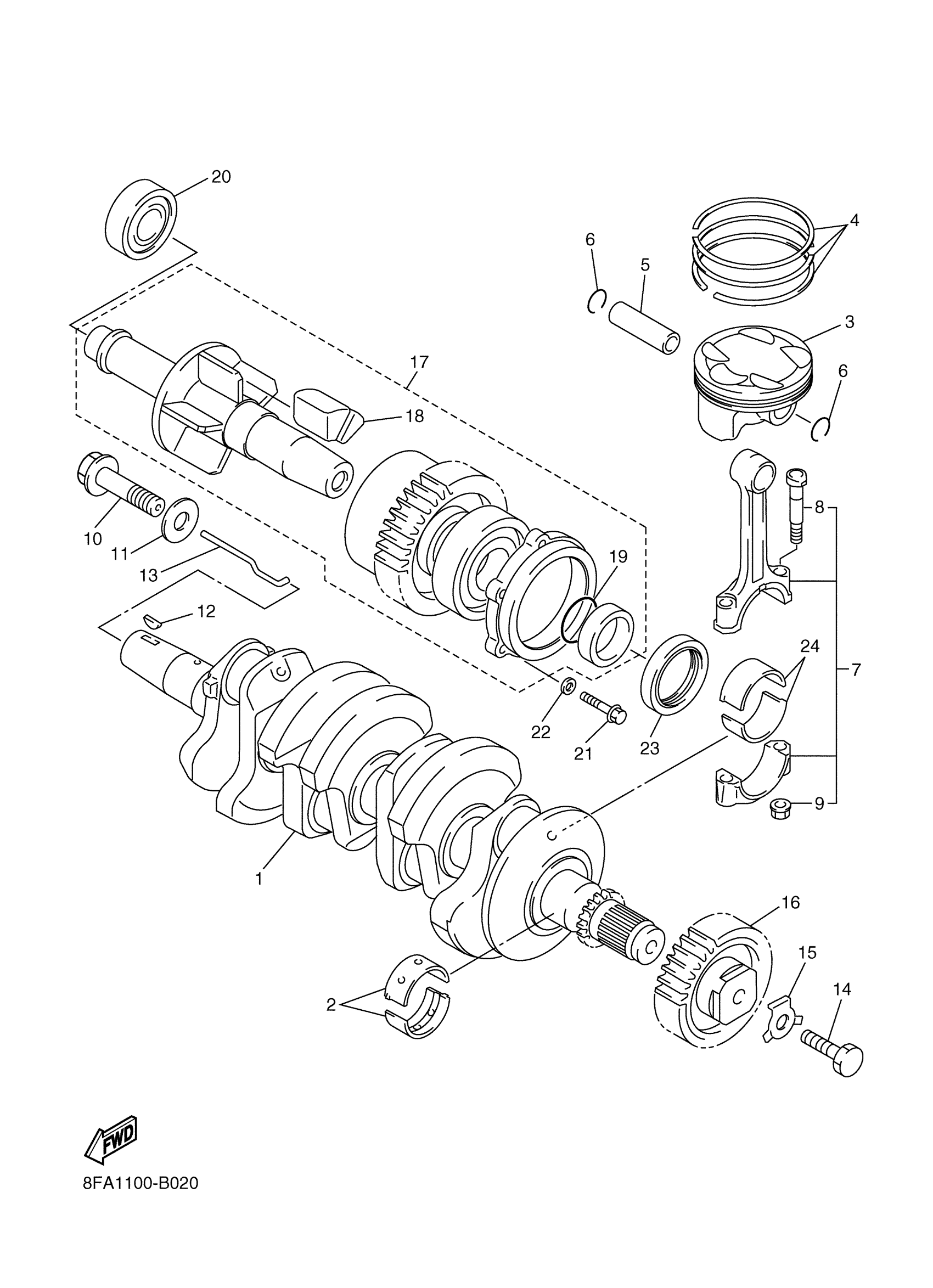

Yamaha RX10RSH (RX-1 ER LE) 8EW1 2003 CRANKSHAFT PISTON Diagram
#
1
CRANKSHAFT
8FA-11411-00-00
Unavailable
2
PLANE BEARING, CRANKSHAFT 1
3GM-11416-00-00
$30.99
2
PLANE BEARING, CRANKSHAFT 1
3GM-11416-10-00
$30.99
2
PLANE BEARING, CRANKSHAFT 1
3GM-11416-20-00
$30.99
2
PLANE BEARING, CRANKSHAFT 1
3GM-11416-A0-00
$28.99
2
PLANE BEARING, CRANKSHAFT 1
3GM-11416-B0-00
$35.99
3
PISTON (STD)
4XV-11631-10-00
$133.99
4
PISTON RING SET (STD)
5LV-11603-00-00
$76.99
5
PIN, PISTON
4XV-11633-00-00
$28.99
6
CLIP (1J7)
90468-12069-00
$9.49
7
CONNECTING ROD ASSY
5PW-11650-00-00
Unavailable
8
BOLT, CONNECTING ROD
5JW-11654-00-00
$5.49
9
NUT (11H)
90179-08327-00
$9.49
10
BOLT, WASHER BASED
90105-12005-00
$29.99
11
WASHER (838)
90201-12191-00
$7.49
12
KEY, WOODRUFF (26H)
90280-05029-00
Unavailable
13
SHAFT 1
5JW-11455-00-00
Unavailable
14
BOLT
90101-10009-00
Unavailable
15
WASHER, LOCK
90215-10001-00
Unavailable
16
GEAR, PRIMARY DRIVE
8FA-16111-01-00
Unavailable
17
SHAFT ASSY
8FA-11406-00-00
Unavailable
18
ABSORBER 1
8FP-16155-00-00
Unavailable
19
O-RING(36Y)
93210-30660-00
Unavailable
20
BEARING
93306-27209-00
Unavailable
21
BOLT, FLANGE
95817-06025-00
Unavailable
22
GASKET (4V2)
90430-06166-00
Unavailable
23
OIL SEAL
93102-40009-00
Unavailable
24
PLANE BEARING, CONNECTING ROD
3GM-11656-00-00
Unavailable
24
PLANE BEARING, CONNECTING ROD
3GM-11656-10-00
Unavailable
24
PLANE BEARING, CONNECTING ROD
3GM-11656-A0-00
Unavailable
24
PLANE BEARING, CONNECTING ROD
3GM-11656-B0-00
Unavailable
