RADIATOR HOSE

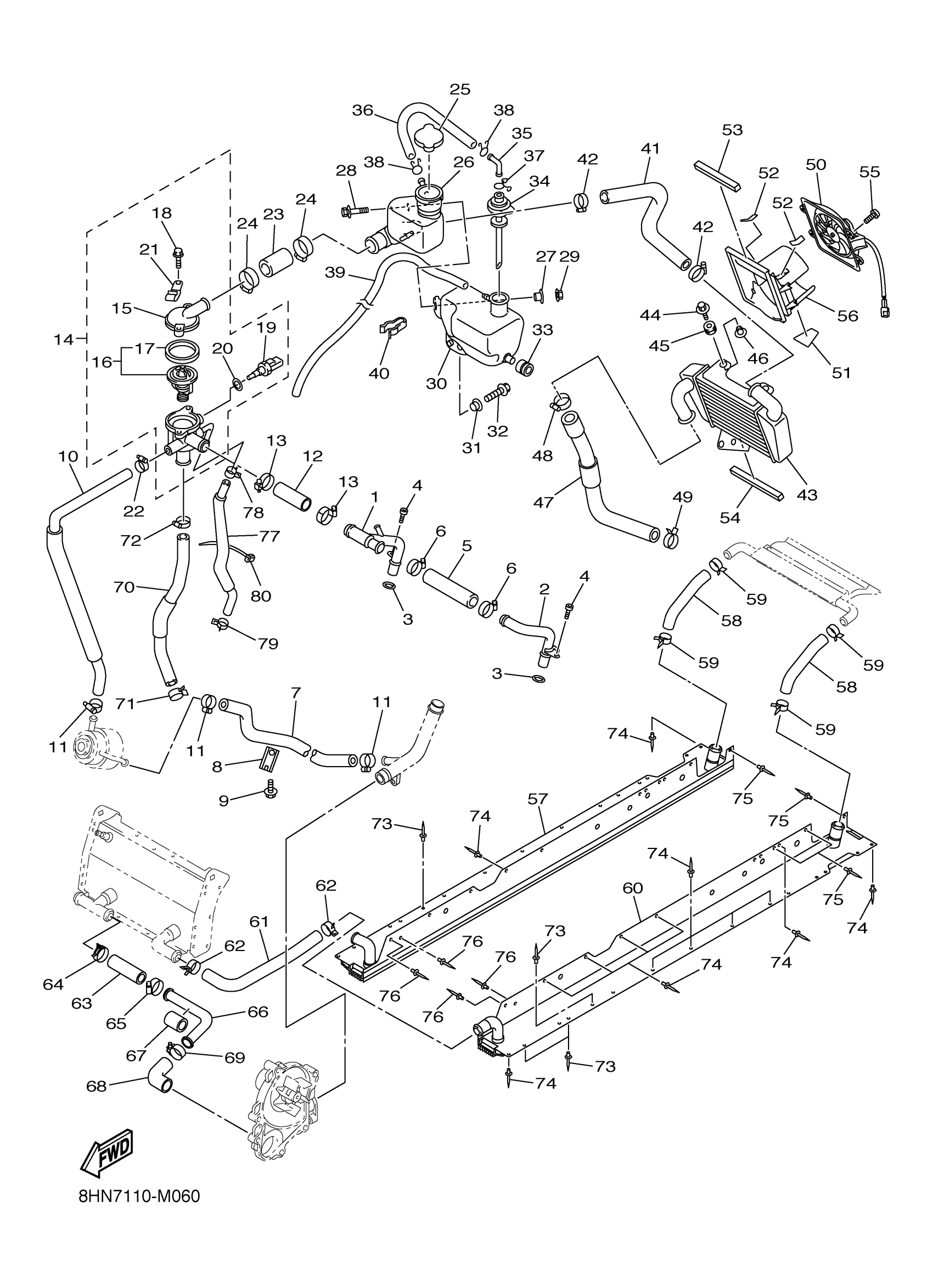

Yamaha RX10PXTFB (APEX XTX) 8HNB 2015 RADIATOR HOSE Diagram
#
1
PIPE 2
8HG-12482-00-00
Unavailable
2
PIPE 3
8HG-12483-00-00
Unavailable
3
O-RING (716)
93210-18417-00
$7.49
4
BOLT (33M)
91312-06014-00
$5.60
5
HOSE 1
8FA-1243A-00-00
Unavailable
6
HOSE CLAMP ASSY
90450-28001-00
$14.99
7
HOSE 5
8FA-12588-00-00
Unavailable
8
CLAMP 1
8FA-12491-00-00
Unavailable
9
BOLT, FLANGE
95022-06012-00
$3.29
10
HOSE 6
8FA-12589-01-00
Unavailable
11
HOSE CLAMP ASSY
90450-18M09-00
Unavailable
12
HOSE 2
8FP-1243E-00-00
Unavailable
13
HOSE CLAMP ASSY
90450-35001-00
$5.60
14
JOINT ASSY
8FP-12580-20-00
Unavailable
15
COVER, THERMOSTAT
8FP-12413-00-00
Unavailable
16
THERMOSTAT ASSY
8FP-12410-00-00
Unavailable
17
SEAL, THERMOSTAT
8FP-12412-00-00
Unavailable
18
BOLT, FLANGE
95022-06020-00
Unavailable
19
THERMOSENSOR ASSY
5YP-85790-00-00
Unavailable
20
WASHER, PLATE
90201-12790-00
Unavailable
21
. CLAMP
90465-06M28-00
Unavailable
22
HOSE CLAMP ASSY
90450-18M09-00
Unavailable
23
HOSE,3
8FP-1243F-00-00
Unavailable
24
HOSE CLAMP ASSY
90450-35001-00
$5.60
25
CAP, RADIATOR
4FL-12462-00-00
Unavailable
26
TANK, RESERVE
8HG-1249B-00-00
Unavailable
27
COLLAR (3L6)
90387-06737-00
Unavailable
28
BOLT,WITH WASHER
99999-04000-00
Unavailable
29
NUT, U FLANGE
95604-06200-00
Unavailable
30
TANK, RECOVERY
8HG-21871-00-00
Unavailable
31
COLLAR (8G8)
90387-06648-00
Unavailable
32
BOLT, FLANGE
95817-06016-00
Unavailable
33
GROMMET (1E2)
90480-14182-00
Unavailable
34
CAP
8HG-21875-00-00
Unavailable
35
ELBOW
26H-21828-00-00
Unavailable
36
HOSE (L180)
90445-094K7-00
Unavailable
37
CLIP(72X)
90467-11M08-00
Unavailable
38
CLIP 101235600
90467-08003-00
Unavailable
39
HOSE (L600)
90445-083J5-00
Unavailable
40
CLAMP(53Y)
90464-15065-00
Unavailable
41
HOSE, 4
8FP-1244G-00-00
Unavailable
42
HOSE CLAMP ASSY
90450-35001-00
$5.60
43
RADIATOR ASSY
8FR-12461-00-00
Unavailable
44
BOLT, WITH WASHER
90119-06181-00
Unavailable
45
GROMMET (4N0)
90480-10289-00
Unavailable
46
COLLAR (6G1)
90387-06M52-00
Unavailable
47
HOSE 5
8FP-1244H-02-00
Unavailable
48
HOSE CLAMP ASSY
90450-35001-00
$5.60
49
CLIP (8M6)
90467-28046-00
Unavailable
50
BLOWER ASSY
8FP-12405-01-00
Unavailable
51
COVER 1
8HG-1246A-00-00
Unavailable
52
COVER 2
8HG-1246E-00-00
Unavailable
53
DAMPER, PLATE
90520-10013-00
Unavailable
54
DAMPER, PLATE
90520-15006-00
Unavailable
55
SCREW, BINDING
98907-05016-00
Unavailable
56
COVER, RADIATOR
8JA-12467-01-00
Unavailable
57
HEAT EXCHANGER
8JA-1240F-00-00
Unavailable
58
PIPE 6
8HG-12476-00-00
Unavailable
59
CLIP (8M6)
90467-28046-00
Unavailable
60
HEAT EXCHANGER
8JA-1240E-00-00
Unavailable
61
PIPE 7
8FA-12477-00-00
Unavailable
62
CLIP (8M6)
90467-28046-00
Unavailable
63
PIPE 8
8FP-1248A-00-00
Unavailable
64
CLIP (8M6)
90467-28046-00
Unavailable
65
HOSE CLAMP ASSY
90450-35001-00
$5.60
66
PIPE, WATER
8FP-12564-01-00
Unavailable
67
HOSE 2
8HG-1243E-00-00
Unavailable
68
JOINT
8FA-12479-02-00
Unavailable
69
HOSE CLAMP ASSY
90450-32002-00
Unavailable
70
PIPE 9
8FA-1248E-01-00
Unavailable
71
CLIP (8M6)
90467-28046-00
Unavailable
72
HOSE CLAMP ASSY
90450-35001-00
$5.60
73
RIVET, BLIND
90267-48177-00
Unavailable
74
RIVET, BLIND
90267-48023-00
Unavailable
75
RIVET, BLIND (22W)
90267-48083-00
Unavailable
76
RIVET, BLIND
90267-48015-00
Unavailable
77
HOSE 4
8FA-12579-00-00
Unavailable
78
CLIP(3BM)
90467-10135-00
Unavailable
79
CLIP (7K7)
90467-11044-00
Unavailable
80
CLAMP(4FM)
90464-15195-00
Unavailable
