- RX10PXTDW (APEX XTX) 8HN70 2013
ALTERNATE TRACK SUSPENSION

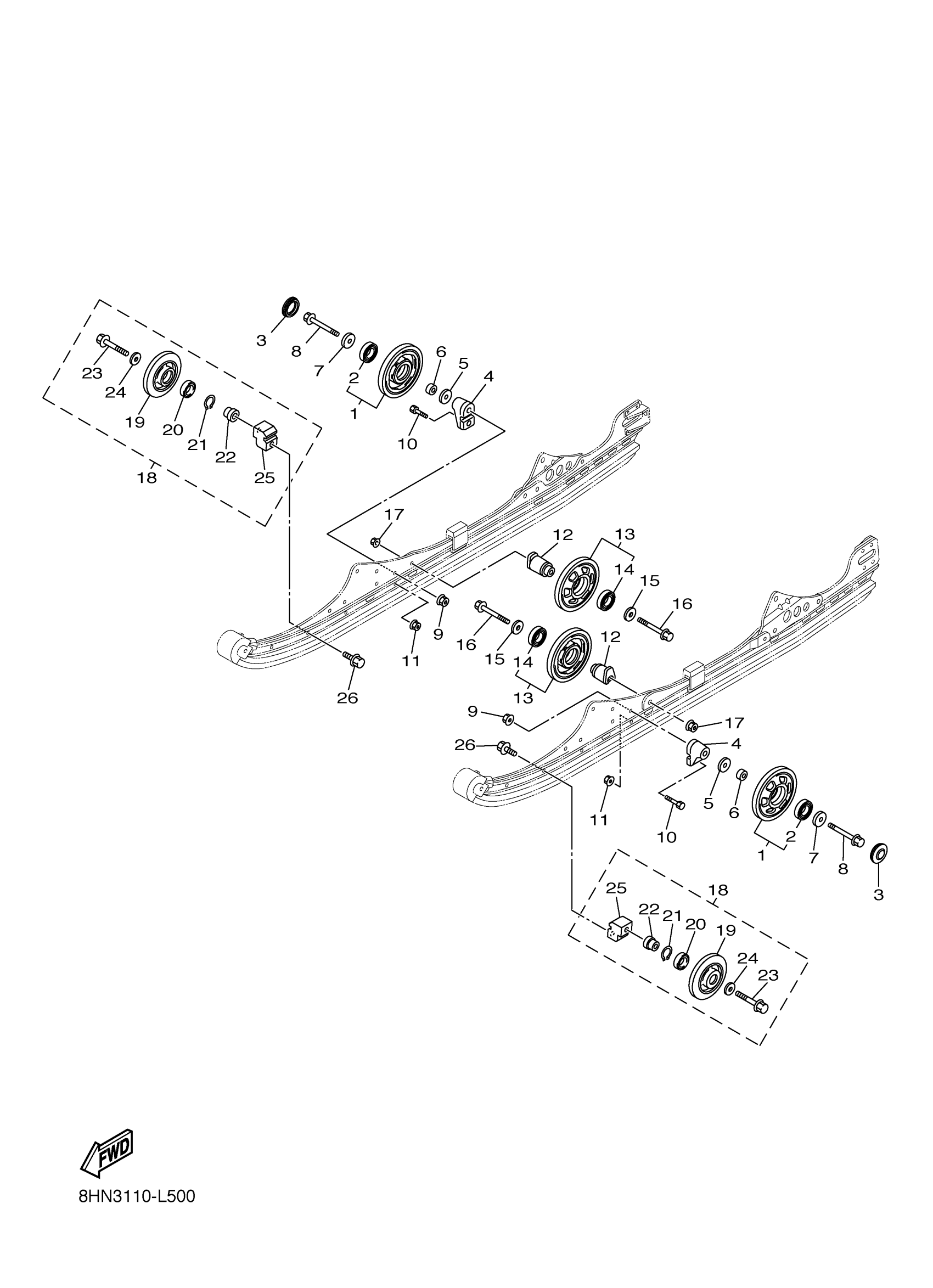

Yamaha RX10PXTDW (APEX XTX) 8HN70 2013 ALTERNATE TRACK SUSPENSION Diagram
#
Description
Price
1
WHEEL BLK 130MM
SMA-8FP38-01-BK
Unavailable
2
BRG,R-B 6005 47MM 85G KY
93306-00507-00
$42.99
3
CAP, WHEEL
8HF-47317-00-00
$15.99
4
BRACKET 7
8CM-47419-10-00
$39.99
5
WASHER, PLATE (2Y4)
90201-10714-00
$7.49
6
COLLAR
90387-10031-00
$21.99
7
WASHER, PLATE
90201-101U2-00
$7.49
8
BOLT, FLANGE
90105-10241-00
$8.49
9
NUT, S/L FLANGE
95602-10200-00
$4.82
10
BOLT
90101-08063-00
$7.49
11
NUT, SELF-LOCKING
95602-08200-00
$3.20
12
BRACKET 7
8ES-47419-00-00
$27.99
13
WHEEL BLK 130MM
SMA-8FP38-01-BK
Unavailable
14
BRG,R-B 6005 47MM 85G KY
93306-00507-00
$42.99
15
WASHER, PLATE
90201-101U2-00
$7.49
16
BOLT, FLANGE
90105-10150-00
Unavailable
17
NUT, S/L FLANGE
95602-10200-00
$4.82
18
SUSPENSION WHEEL COMP.
8GP-47320-10-00
Unavailable
19
SUSPENSION WHEEL COMP.
8AC-47320-00-00
Unavailable
20
BEARING(8AB)
93306-00444-00
Unavailable
21
CIRCLIP(5U8)
99009-42500-00
Unavailable
22
COLLAR
8GP-47319-00-00
Unavailable
23
BOLT, FLANGE (8V9)
95812-10045-00
Unavailable
24
WASHER, PLATE
90201-10052-00
Unavailable
25
BRACKET 7
8GP-47419-10-00
Unavailable
26
BOLT, FLANGE
95817-10030-00
Unavailable
