- RX10PXTAR (APEX XTX) 8HN10 2011
TRACK SUSPENSION 1

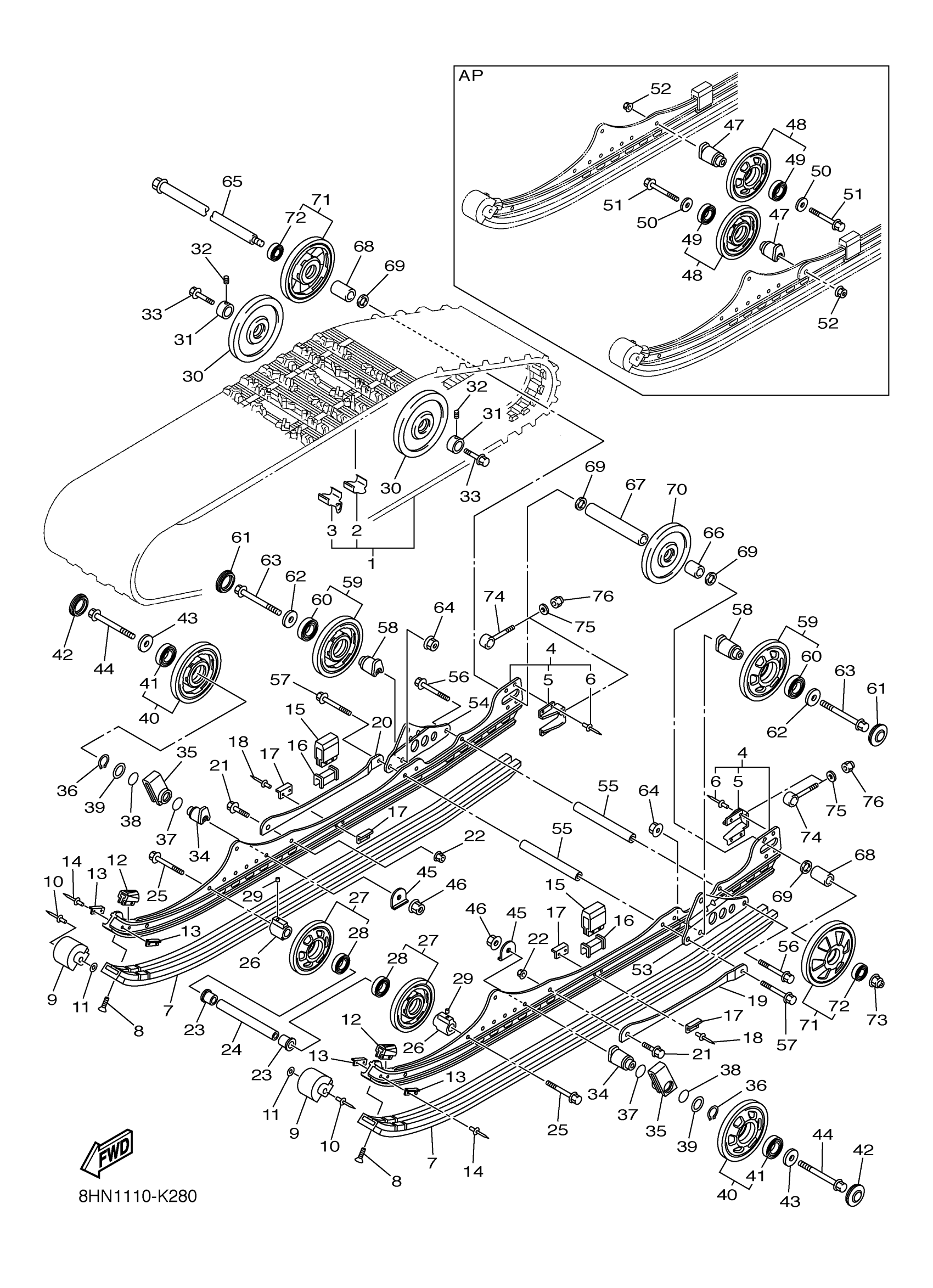

Yamaha RX10PXTAR (APEX XTX) 8HN10 2011 TRACK SUSPENSION 1 Diagram
#
1
TRACK ASSY
8ET-47110-30-00
Unavailable
2
PLATE, REINFORCEMENT
8HR-47113-09-00
$17.99
3
METAL, SLIDE
8HR-47115-09-00
$16.99
4
FRAME, SLIDING
8HL-W4741-00-00
Unavailable
5
BRACKET
8DM-4741B-00-00
$45.99
6
RIVET
8V0-47468-00-00
$10.49
7
FX NYTRO 162" HP WIDE HYFAX
SMA-8HR92-00-BK
Unavailable
8
SCREW, CROSSRECESS (8G6)
90151-06005-00
$9.49
9
RUNNER, SLIDING 2
8GL-47422-00-00
$30.99
10
RIVET BLIND
90267-48194-00
$3.28
11
WASHER, PLATE(8CM)
90201-047R8-00
$3.02
12
DAMPER 1
8ES-47456-00-00
$6.99
13
PLATE, DAMPER
8K2-47458-01-00
$4.77
14
RIVET, BLIND
90267-48199-00
$3.76
15
DAMPER 2
8CM-47457-00-00
$16.49
16
SPACER
8HL-47341-00-00
Unavailable
17
PLATE, DAMPER
8AX-47458-00-00
Unavailable
18
RIVET, BLIND
90267-48199-00
$3.76
19
FRAME, SLIDING C
8HL-4741C-00-00
Unavailable
20
FRAME, SLIDING D
8HL-4741D-00-00
Unavailable
21
. BOLT, FLANGE
95812-10025-00
Unavailable
22
NUT, S/L FLANGE
95602-10200-00
Unavailable
23
BUSH
90386-20001-00
Unavailable
24
SHAFT 5
8GN-47487-00-00
Unavailable
25
BOLT, FLANGE
90105-10209-00
Unavailable
26
COLLAR
8ES-47319-01-00
Unavailable
27
WHEEL BLK 130MM
SMA-8FP38-01-BK
Unavailable
28
BRG,R-B 6005 47MM 85G KY
93306-00507-00
Unavailable
29
BOLT, SET (8K2)
90113-06039-00
Unavailable
30
GUIDE WHEEL ASSY
8CR-47550-00-00
Unavailable
31
COLLAR 1
8ES-47365-00-00
Unavailable
32
BOLT, SET (8K2)
90113-06039-00
Unavailable
33
BOLT (8V0)
90109-10771-00
Unavailable
34
BRACKET 7
8ES-47419-10-00
Unavailable
35
HOOK 1
8ES-47446-00-00
Unavailable
36
CIRCLIP(6U2)
93410-35M10-00
Unavailable
37
O-RING (16G)
93210-35537-00
Unavailable
38
O-RING (21A)
93210-34633-00
Unavailable
39
WASHER, PLATE
90201-35013-00
Unavailable
40
WHEEL BLK 130MM
SMA-8FP38-01-BK
Unavailable
41
BRG,R-B 6005 47MM 85G KY
93306-00507-00
Unavailable
42
CAP, WHEEL
8HF-47317-00-00
Unavailable
43
WASHER, PLATE
90201-101U2-00
Unavailable
44
BOLT, FLANGE
90105-10233-00
Unavailable
45
WASHER, CLAW
90214-10003-00
Unavailable
46
NUT, S/L FLANGE
95602-10200-00
Unavailable
47
BRACKET 7
8ES-47419-00-00
Unavailable
48
WHEEL BLK 130MM
SMA-8FP38-01-BK
Unavailable
49
BRG,R-B 6005 47MM 85G KY
93306-00507-00
Unavailable
50
WASHER, PLATE
90201-101U2-00
Unavailable
51
BOLT, FLANGE
90105-10150-00
Unavailable
52
NUT, S/L FLANGE
95602-10200-00
Unavailable
53
BRACKET 5
8HL-47463-00-00
Unavailable
54
BRACKET 6
8HL-47464-00-00
Unavailable
55
SHAFT 3
8HL-47485-00-00
Unavailable
56
BOLT, FLANGE
90105-08150-00
Unavailable
57
BOLT, FLANGE
90105-08229-00
Unavailable
58
BRACKET 7
8ES-47419-00-00
Unavailable
59
WHEEL BLK 130MM
SMA-8FP38-01-BK
Unavailable
60
BRG,R-B 6005 47MM 85G KY
93306-00507-00
Unavailable
61
CAP, WHEEL
8HF-47317-00-00
Unavailable
62
WASHER, PLATE
90201-101U2-00
Unavailable
63
BOLT, FLANGE
90105-10233-00
Unavailable
64
NUT, S/L FLANGE
95602-10200-00
Unavailable
65
REAR AXLE COMP.
8L8-47520-10-00
Unavailable
66
COLLAR
90387-20015-00
Unavailable
67
COLLAR
90387-20016-00
Unavailable
68
COLLAR
90387-20019-00
Unavailable
69
WASHER, PLATE(89W)
90201-205R6-00
Unavailable
70
GUIDE WHEEL ASSY
8CR-47550-10-00
Unavailable
71
REAR WHEEL BLK 178MM
SMA-8FP38-02-BK
Unavailable
72
BEARING(8AB)
93306-00444-00
Unavailable
73
NUT, U FLANGE
95602-14200-00
Unavailable
74
COLLAR 3
8DM-47479-00-00
Unavailable
75
WASHER, PLATE
92990-10600-00
Unavailable
76
NUT, NYLON
95707-10300-00
Unavailable
