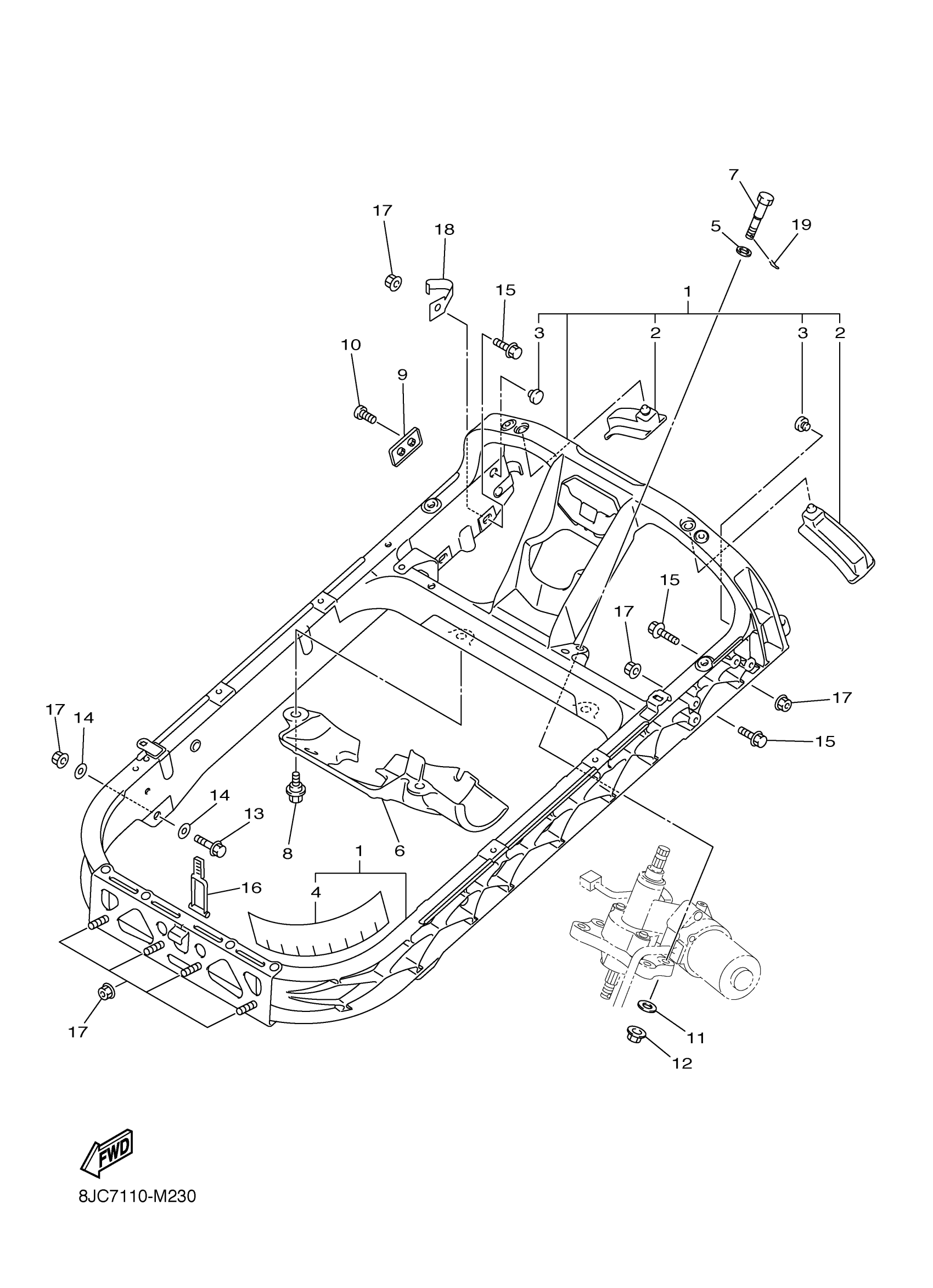

Find the part on the Steering Gate diagram for your 2015 Yamaha Apex Se (RX10PSFB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2015 Yamaha Apex Se (RX10PSFB) Steering Gate Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STEERING GATE COMP.

8HG-23870-02-00

—
Out of stock

2

STOPPER

8HG-23376-00-00

1
Out of stock

3

STOPPER

8FA-24768-00-00

—
Out of stock

4

SPACER

8HV-23858-00-00

1
Out of stock

5

WASHER, PLATE

90201-10032-00

1
Out of stock

6

COVER, MOTOR

8HG-238B6-01-00

1
Out of stock

7

BOLT, WITH HOLE

90102-08007-00

—
Out of stock

8

BOLT(3KJ)

90109-063F1-00

1
Out of stock

9

BRACKET

JT1-83614-00-00

1
Out of stock

10

SCREW, BIND (705)

98980-06016-00

1
Out of stock

11

WASHER, PLATE(49E)

90201-087H6-00

1
Out of stock

12

NUT,FLANGE(J10)

95702-08500-00

1
Out of stock

13

BOLT, FLANGE

90105-08236-00

1
Out of stock

14

WASHER (853)

90201-08326-00

1
Out of stock

15

BOLT, FLANGE(6TA)

95817-08030-00

1
Out of stock

16

LATCH

8FA-2389E-00-00

—
Out of stock

17

NUT, SELF-LOCKING

95602-08200-00

—
Out of stock

18

CLAMP

90462-10022-00

—
Out of stock

19

CLIP 136253750000

90468-12006-00

—
Out of stock
