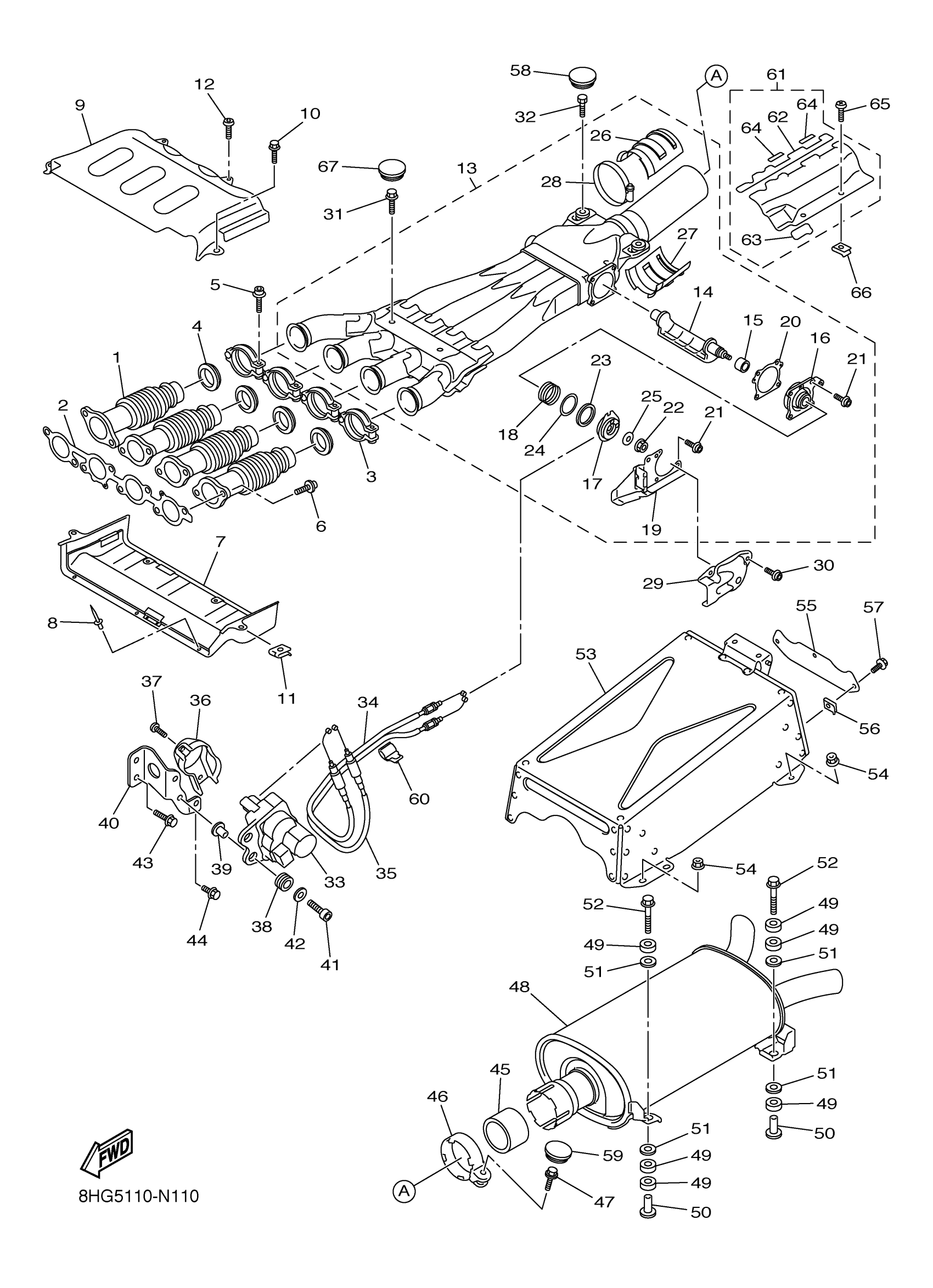

Yamaha RX10PSFB (APEX SE) 8JCB 2015 EXHAUST Diagram
#
1
JOINT, EXHAUST 1
8HG-14615-00-00
$224.99
2
GASKET, EXHAUST PIPE
8HG-14613-00-00
$25.99
3
BAND, MUFFLER
8HG-14715-00-00
$70.99
4
GASKET, EXHAUST PIPE
8HG-14623-00-00
$32.99
5
BOLT
90109-06031-00
Unavailable
6
BOLT, FLANGE
95022-08020-00
$8.49
7
COVER, EXHAUST
8FU-14627-10-00
Unavailable
8
RIVET, BLIND
90267-47195-00
$3.88
9
EXHAUST COVER ASS'Y
8FP-14637-00-00
Unavailable
10
BOLT, FLANGE
95812-06008-00
$7.49
11
NUT, SPRING
90183-060A0-00
Unavailable
12
BOLT, BUTTON HEAD
92012-06016-00
$8.49
13
EXHAUST PIPE ASSY 1
8HG-14610-01-00
Unavailable
14
ARM, SHAFT (VALVE)
8HG-14821-00-00
Unavailable
15
COLLAR
5VY-14638-00-00
Unavailable
16
HOUSING
8HG-14811-00-00
Unavailable
17
PULLEY
8HG-14865-00-00
Unavailable
18
SPRING
5VY-14856-00-00
Unavailable
19
BRACKET
8HG-14867-00-00
Unavailable
20
GASKET 3
5VY-14643-00-00
Unavailable
21
BOLT, HEXAGON SOCKET HEAD
90110-06110-00
Unavailable
22
NUT
90179-06063-00
Unavailable
23
COLLAR 2
5VY-14648-00-00
Unavailable
24
VALVE, PLATE
5VY-14674-00-00
Unavailable
25
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
26
PLATE, PROTECTOR 3
8HG-1465U-00-00
Unavailable
27
PLATE, PROTECTOR 4
8HG-1465V-00-00
Unavailable
28
HOSE CLAMP ASSY
90450-60007-00
Unavailable
29
PROTECTOR, EXHAUST
8HG-14826-00-00
Unavailable
30
BOLT, HEXAGON SOCKET HEAD
90110-06110-00
Unavailable
31
BOLT, WITH WASHER
90119-08148-00
Unavailable
32
BOLT, HEXAGON
97017-08030-00
Unavailable
33
SERVO MOTOR ASSY
5VY-85820-11-00
Unavailable
34
CABLE, PULLEY 1
8HG-1133E-01-00
Unavailable
35
CABLE, PULLEY 2
8HG-1133F-01-00
Unavailable
36
COVER, SERVO MOTOR
5VY-85829-01-00
Unavailable
37
SCREW, PANHEAD TAPPING (682)
97780-50514-00
Unavailable
38
GROMMET
90480-14005-00
Unavailable
39
COLLAR
90387-06158-00
Unavailable
40
BRACKET 7
8HG-2116J-00-00
Unavailable
41
BOLT,SOCKET
91317-06025-00
Unavailable
42
WASHER, PLATE
90201-06M31-00
Unavailable
43
BOLT, FLANGE
95817-06016-00
Unavailable
44
BOLT, WITH WASHER
90119-06212-00
Unavailable
45
GASKET, SILENCER
5VY-14755-00-00
Unavailable
46
BAND, SILENCER
8HG-14788-00-00
Unavailable
47
BOLT, FLANGE
95817-08035-00
Unavailable
48
SILENCER ASSY
8HG-14750-01-00
Unavailable
49
DAMPER, MUFFLER
8FA-14737-00-00
Unavailable
50
COLLAR
90387-08087-00
Unavailable
51
WASHER, PLATE
90201-14023-00
Unavailable
52
BOLT, WITH WASHER
90119-08096-00
Unavailable
53
PROTECTOR ASSY
8HG-14708-00-00
Unavailable
54
NUT, SELF-LOCKING
95602-08200-00
Unavailable
55
PLATE 8
8HG-1478N-00-00
Unavailable
56
NUT, SPRING(4ES)
90183-06069-00
Unavailable
57
BOLT, FLANGE
95812-06010-00
Unavailable
58
PLUG
90338-20007-00
Unavailable
59
PLUG(MG5)
90338-28239-00
Unavailable
60
WIRE LOCKING
8HG-14686-00-00
Unavailable
61
COVER, EXHAUST
8HG-14627-00-00
Unavailable
62
DAMPER
8HG-14844-00-00
Unavailable
63
DAMPER 1
8HG-14425-00-00
Unavailable
64
DAMPER 2
8HG-14426-00-00
Unavailable
65
SCREW, BIND(J45)
98980-06012-00
Unavailable
66
NUT, SPRING
90183-060A2-00
Unavailable
67
PLUG
90338-30004-00
Unavailable
