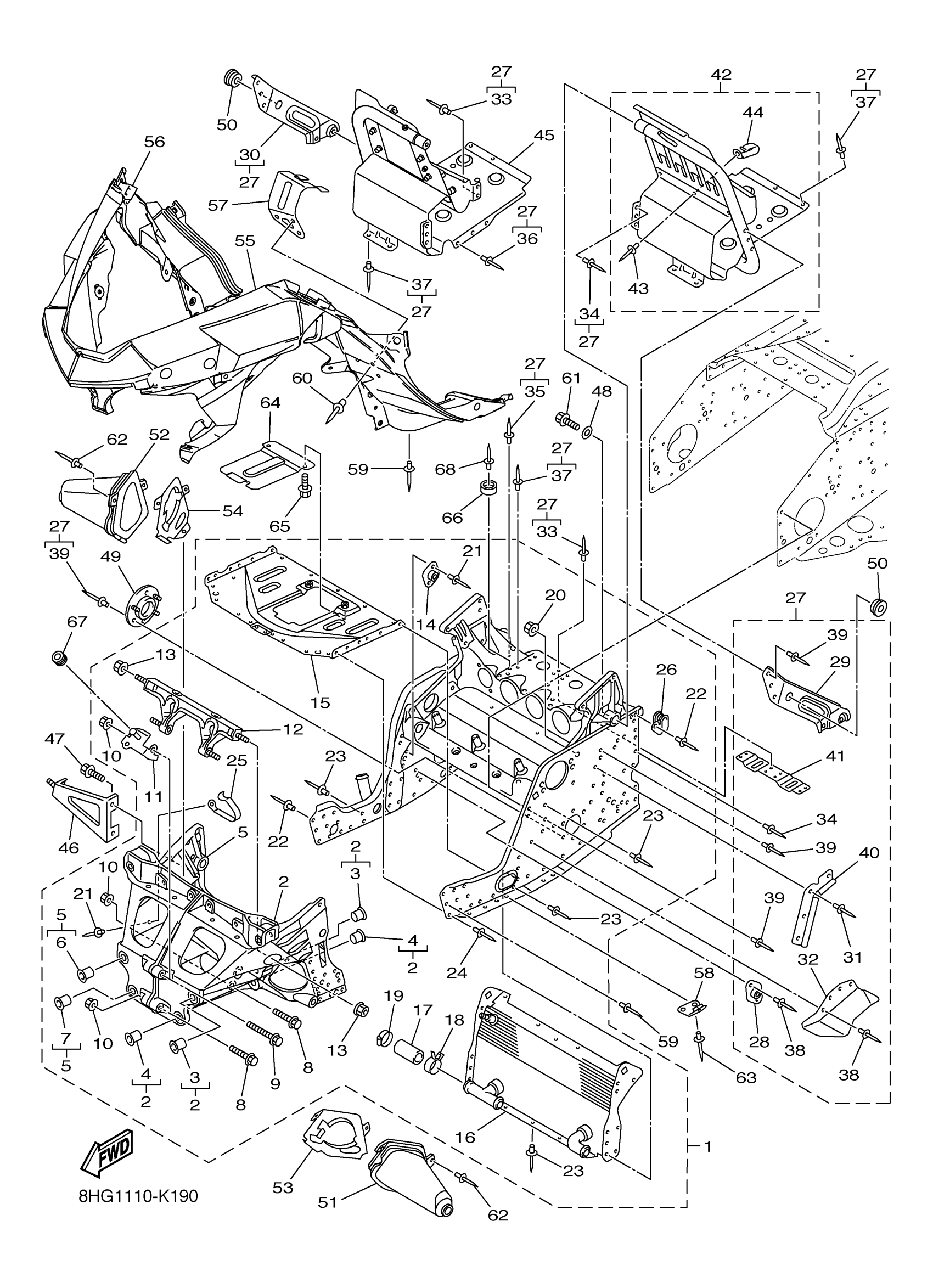

Yamaha RX10PSER (APEX SE) 8JC90 2014 FRAME 1 Diagram
#
1
FRONT FRAME COMP.
8HG-21940-02-00
Unavailable
2
BULKHEAD
8FA-W2197-13-00
$721.99
3
BUSH, SOLID
90381-15001-00
$5.60
4
BUSH, SOLID
90381-16004-00
$16.99
5
BULKHEAD 2
8FA-W2198-20-00
Unavailable
6
BUSH, SOLID
90381-15001-00
$5.60
7
BUSH, SOLID
90381-16004-00
$16.99
8
BOLT, FLANGE
95817-08060-00
$3.76
9
BOLT, WASHER BASED
90105-084A1-00
$10.49
10
NUT, SELF-LOCKING
90185-08169-00
$8.49
11
BRACKET 2
8HG-2836E-00-00
Unavailable
12
BRACKET, STEERING 1
8FG-21947-00-00
$180.99
13
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
14
BRACKET, CHAIN HOUSING
8CR-21939-01-00
$5.49
15
PROTECTOR
8FR-2193A-01-00
Unavailable
16
HEAT EXCHANGER ASSY
8FR-12440-00-00
Unavailable
17
HOSE 7
8FA-12551-00-00
Unavailable
18
CLIP (8M6)
90467-28046-00
Unavailable
19
HOSE CLAMP ASSY
90450-35001-00
Unavailable
20
NUT, SELF-LOCKING
90185-08169-00
$8.49
21
RIVET, BLIND
90267-47195-00
Unavailable
22
RIVET, BLIND
90267-48016-00
Unavailable
23
RIVET, BLIND
90267-48177-00
Unavailable
24
RIVET, BLIND
90267-48015-00
Unavailable
25
CLAMP
90462-08083-00
Unavailable
26
CLAMP
90462-10054-00
Unavailable
27
FRAME CONNECTION KIT
8HG-W2195-00-00
Unavailable
28
BRACKET, CHAIN HOUSING
8CR-21939-01-00
$5.49
29
BRACKET, 5
8JA-2196M-00-00
Unavailable
30
BRACKET, 6
8JA-2197M-00-00
Unavailable
31
RIVET, BLIND
90267-48018-00
Unavailable
32
COVER 2
8FP-2198G-01-00
Unavailable
33
RIVET, BLIND
90267-48016-00
Unavailable
34
RIVET, BLIND
90267-48016-00
Unavailable
35
RIVET, BLIND(8CR)
90267-47186-00
Unavailable
36
RIVET, BLIND (22W)
90267-48083-00
Unavailable
37
RIVET, BLIND
90267-48023-00
Unavailable
38
RIVET, BLIND
90267-47195-00
Unavailable
39
RIVET, BLIND
90267-48177-00
Unavailable
40
CLAMP, WIREHARNESS
8FA-21999-00-00
Unavailable
41
PROTECTOR, MUFFLER
8HG-2194H-00-00
Unavailable
42
FOOTREST COMP. 1
8HG-21960-00-00
Unavailable
43
RIVET, BLIND
90267-48177-00
Unavailable
44
CLAMP(51Y)
90465-08277-00
Unavailable
45
FOOTREST COMP. 2
8HG-21970-00-00
Unavailable
46
BRACKET, OIL TANK 1
8HG-2193E-00-00
Unavailable
47
BOLT, FLANGE
95822-08014-00
Unavailable
48
WASHER (853)
90201-08326-00
Unavailable
49
HOUSING, REINF SUB-ASSY(L.H)
8EK-21920-01-00
Unavailable
50
GROMMET(4FU)
90480-13567-00
Unavailable
51
COVER 1
8FU-2198F-01-00
Unavailable
52
COVER 3
8FU-2198J-01-00
Unavailable
53
PLATE, STRG BRACKET 1
8FU-2195E-01-00
Unavailable
54
PLATE, STRG BRACKET 2
8FU-2195F-01-00
Unavailable
55
FRAME UNDER 1
8FP-2196A-02-00
Unavailable
56
FRAME, UNDER 2
8FP-2196E-02-00
Unavailable
57
BRACKET, GUARD FITTING
8FP-21972-00-00
Unavailable
58
BRACKET 3
8FA-2196F-00-00
Unavailable
59
RIVET, BLIND
90267-48018-00
Unavailable
60
RIVET, BLIND
90267-47200-00
Unavailable
61
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
62
RIVET, BLIND
90267-47195-00
Unavailable
63
RIVET, BLIND
90267-48177-00
Unavailable
64
PROTECTOR, FRAME FR
8FR-2197E-00-00
Unavailable
65
BOLT, BUTTON HEAD
92012-06012-00
Unavailable
66
STOPPER
8HG-24768-00-00
Unavailable
67
DAMPER, SIDE COVER (437)
90480-12053-00
Unavailable
68
RIVET, BLIND (8L0)
90267-48059-00
Unavailable
