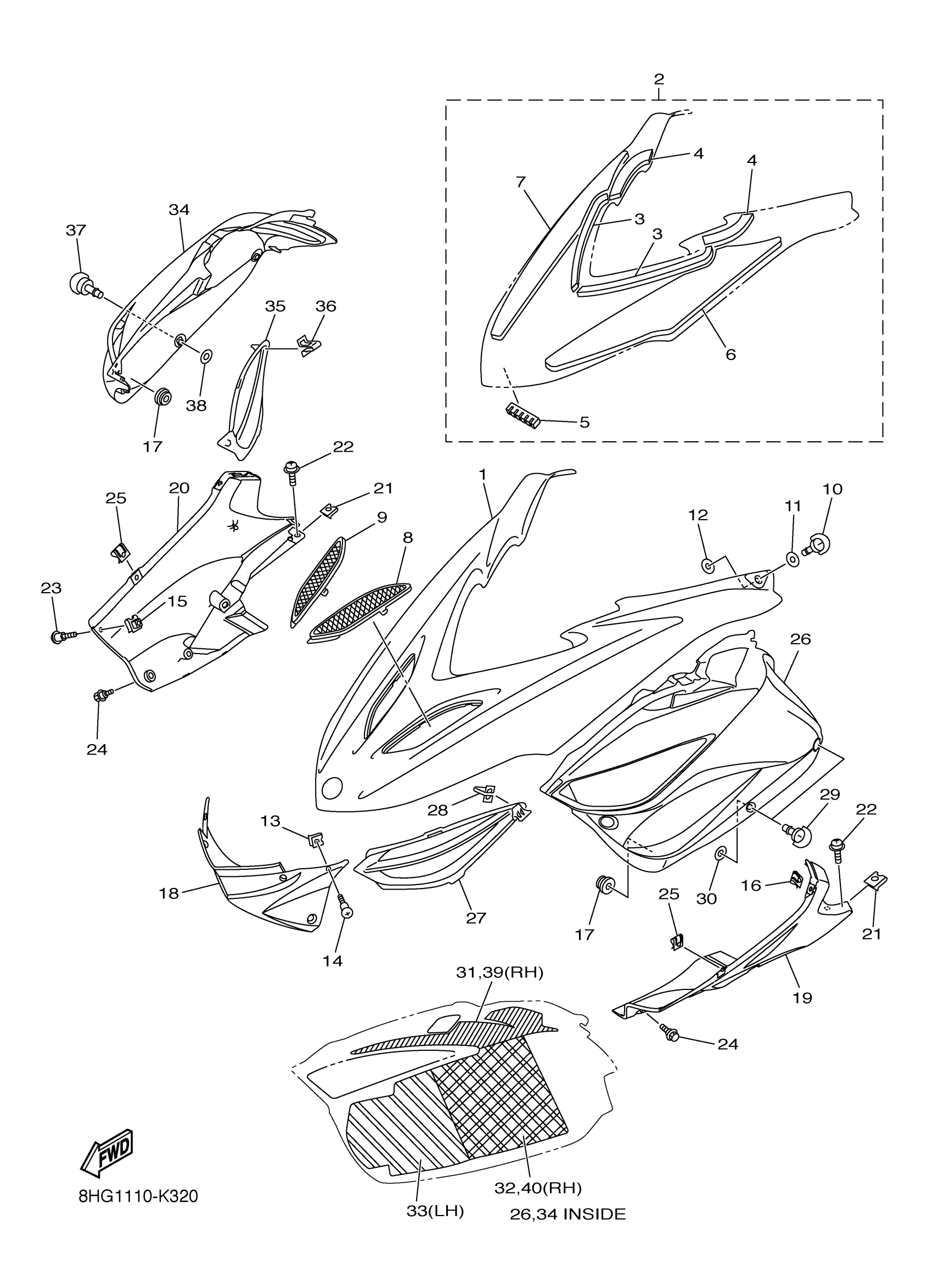

Yamaha RX10PSDW (APEX SE) 8JC70 2013 SHROUD Diagram

#

Description
Price

1

SHROUD

8HG-77111-00-P2

Unavailable

2

LINING SET

8HG-W7726-00-00

$21.44

3

TRIM 1

8HG-77165-00-00

Unavailable

4

TRIM 2

8HG-77166-00-00

Unavailable

5

GUIDE 1

8FP-77123-00-00

$1.65

6

DAMPER, NOISE 11

8HG-77271-00-00

Unavailable

7

DAMPER, NOISE 11

8HG-77271-10-00

Unavailable

8

LOUVER 3

8HG-77133-00-00

Unavailable

9

LOUVER 4

8HG-77134-00-00

Unavailable

10

HEAD

3FV-28386-00-00

$33.27

11

WASHER, SPECIAL 1

2TK-21757-00-00

$1.64

12

WASHER, SPECIAL 1

5TJ-21757-00-00

$5.99

13

NUT, SPRING(4ES)

90183-06069-00

$5.69

14

SCREW, BINDING

90154-06009-00

$2.80

15

NUT, SPRING

90183-06100-00

$7.35

16

PLATE, SPRING

4XV-2177L-01-00

Unavailable

17

GROMMET

90480-13019-00

Unavailable

18

PANEL, SUB FRAME 1

8FA-21912-00-00

Unavailable

19

HOOD 1

8FP-21982-00-00

Unavailable

20

HOOD 2

8FP-21983-00-00

Unavailable

21

NUT, SPRING(4ES)

90183-06069-00

$5.69

22

SCREW, WITH WASHER

90159-06011-00

Unavailable

23

SCREW, BINDING

90154-06009-00

$2.80

24

BOLT

90109-06220-00

Unavailable

25

PLATE, SPRING

4XV-2177L-01-00

Unavailable

26

HOOD 3

8HG-2197H-00-00

Unavailable

27

LOUVER 5

8HG-77109-00-00

Unavailable

28

CLIP

90468-06001-00

Unavailable

29

HEAD

3FV-28386-00-00

$33.27

30

WASHER, SPECIAL 1

5TJ-21757-00-00

$5.99

31

DAMPER, NOISE 12

8HG-77272-00-00

Unavailable

32

DAMPER, NOISE 13

8HG-77273-00-00

Unavailable

33

DAMPER, NOISE 14

8HG-77274-00-00

Unavailable

34

HOOD 4

8HG-2198H-00-00

Unavailable

35

LOUVER 6

8HG-77108-00-00

Unavailable

36

CLIP

90468-06001-00

Unavailable

37

HEAD

3FV-28386-00-00

$33.27

38

WASHER, SPECIAL 1

5TJ-21757-00-00

$5.99

39

DAMPER, NOISE 15

8HG-77275-00-00

Unavailable

40

DAMPER, NOISE 16

8HG-77276-00-00

Unavailable
