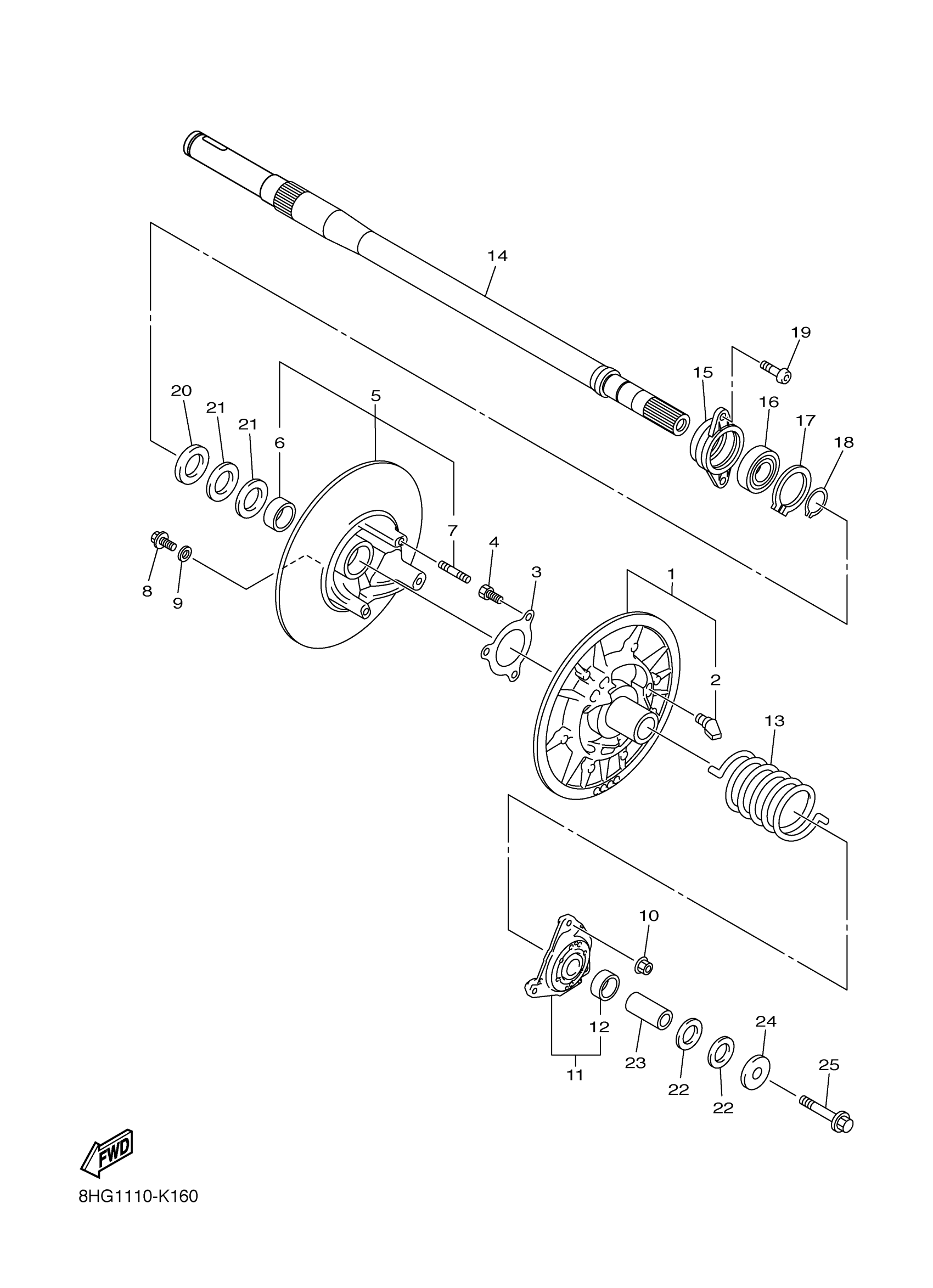

Yamaha RX10PSDW (APEX SE) 8JC70 2013 SECONDARY SHEAVE Diagram

#

Description
Price

1

SECONDARY FIXED SHEAVE COMP.

8ER-17660-30-00

Unavailable

2

SHOE, RAMP

8ER-17688-00-00

$32.99

3

STOPPER, HOLDER

8BV-17656-00-00

$22.99

4

SCREW, BINDING

98907-06016-00

$9.49

5

SECONDARY SLIDING SHEAVE

8BU-17670-30-00

$239.99

6

BUSH, BIMETAL FORMED(8BN)

90384-38243-00

$63.99

7

BOLT, STUD 3

95617-08630-00

$4.99

8

BOLT, WASHER BASED(8BN)

90105-06734-00

$3.50

9

WASHER, PLATE (371)

90201-06431-00

$5.60

9

WASHER, PLATE (22K)

90201-061H1-00

$4.72

10

NUT(8BN)

90179-08655-00

$10.49

11

SEAT SPRING SET

8FA-17604-00-00

$212.99

12

BUSH, BIMETAL FORMED(8BN)

90384-38243-00

$63.99

13

SPRING, TORSION

90508-60012-00

$49.99

14

SHAFT, SECONDARY

8FR-17681-01-00

Unavailable

15

HOUSING, BEARING

8FN-47631-00-00

Unavailable

16

BEARING

93306-30579-00

Unavailable

17

CIRCLIP(MF1)

99009-62500-00

Unavailable

18

CIRCLIP(JF7)

99009-25400-00

Unavailable

19

SCREW

90149-08034-00

Unavailable

20

WASHER, PLATE (888)

90201-25526-00

Unavailable

21

WASHER, PLATE (888)

90201-25527-00

Unavailable

22

WASHER, PLATE (T=0.5)

90201-222F0-00

Unavailable

22

WASHER, PLATE (8L8)

90201-225A4-00

Unavailable

23

COLLAR

90387-14019-00

Unavailable

24

WASHER, PLATE

90201-14022-00

Unavailable

25

BOLT, WASHER BASED(8CJ)

90105-14766-00

Unavailable
