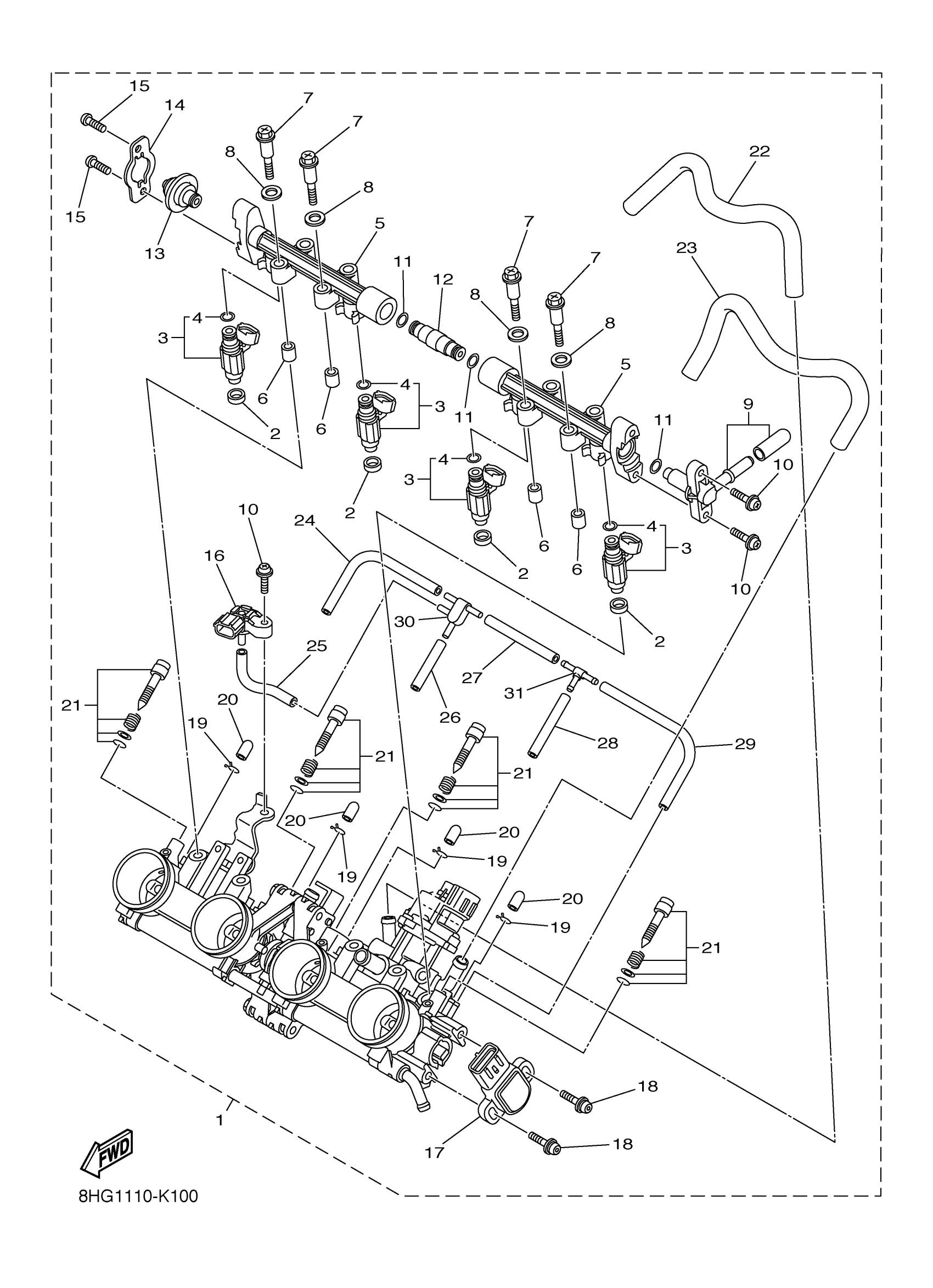

Yamaha RX10PFB (APEX) 8HG6 2015 INTAKE 2 Diagram
#
1
THROTTLE BODY ASSY
8HG-13750-00-00
Unavailable
2
GASKET, MANIFOLD
8FP-13556-00-00
$13.99
3
INJECTOR
8FP-13761-10-00
Unavailable
4
O-RING
8FP-14147-00-00
$23.99
5
PIPE
8HG-13938-00-00
Unavailable
6
COLLAR
8HG-14534-00-00
$31.99
7
BOLT 1
8HG-13573-00-00
Unavailable
8
WASHER
8GL-13571-00-00
$3.50
9
NIPPLE
8HG-14251-00-00
Unavailable
10
SCREW
2C0-14216-00-00
$3.28
11
O-RING
8HG-14561-00-00
$15.99
12
PIPE
8HG-13582-00-00
Unavailable
13
DAMPER
5VK-13982-00-00
Unavailable
14
PLATE
8HG-14243-00-00
Unavailable
15
GASKET, EXHAUST
98507-05008-00
$3.55
16
SENSOR, PRESSURE
5S7-82380-00-00
Unavailable
17
THROTTLE SENSOR AS
8GL-85885-01-00
Unavailable
18
SCREW
8CC-14216-10-00
Unavailable
19
CLIP, PIPE
8A7-14139-00-00
Unavailable
20
CAP
895-14169-00-00
Unavailable
21
PILOT SCREW SET
2C0-14105-00-00
Unavailable
22
HOSE 3
8HG-13547-00-00
Unavailable
23
HOSE, AIR 4
8HG-13548-00-00
Unavailable
24
HOSE, AIR
8HG-13543-00-00
Unavailable
25
HOSE, AIR 2
8GL-13892-00-00
Unavailable
26
PIPE
8FP-14349-30-00
Unavailable
27
PIPE
5JW-14349-10-00
Unavailable
28
PIPE
8FP-14349-20-00
Unavailable
29
HOSE 2
8HG-13546-00-00
Unavailable
30
CONNECTOR
5PW-1410F-00-00
Unavailable
31
. PIPE, JOINT 1
68V-24376-00-00
Unavailable
