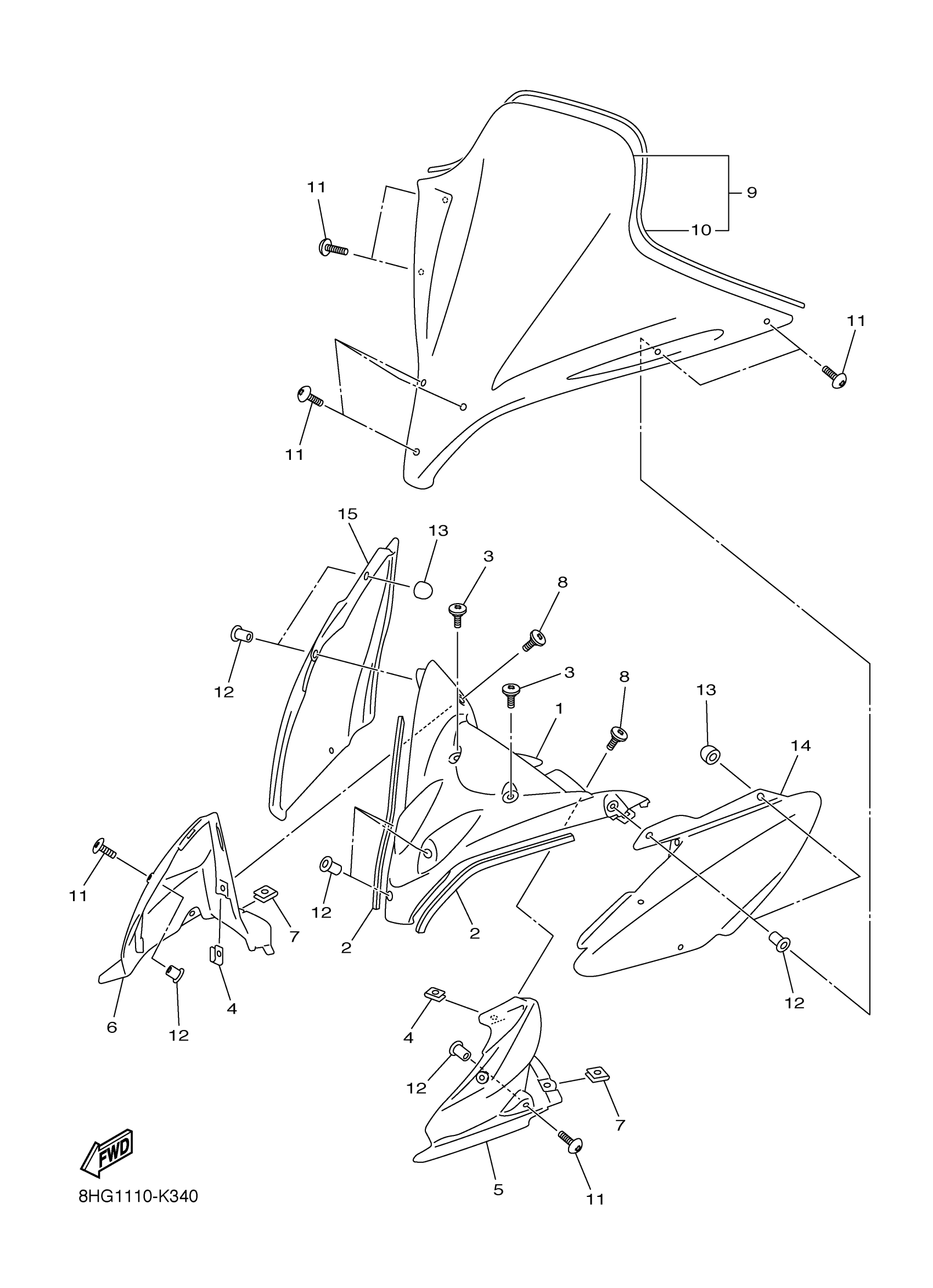

Yamaha RX10PER (APEX) 8HG50 2014 WINDSHIELD Diagram

#

Description
Price

1

COVER, HEADLIGHT

8HG-77251-00-00

$86.99

2

DAMPER

8HG-77238-00-00

Unavailable

3

SCREW, BINDING

90154-06009-00

$4.61

4

NUT, SPRING

90183-06100-00

$10.49

5

PLATE 1

8HG-77185-00-00

$88.99

6

PLATE 2

8HG-77186-00-00

$88.99

7

PLATE, SPRING

5PW-2177L-01-00

$6.99

8

SCREW, BINDING

90154-06009-00

$4.61

9

WINDSHIELD COMP.

8HG-K7210-00-00

Unavailable

10

TRIM,UPPER

8FM-K7213-00-00

Unavailable

11

SCREW, ROUND HEAD(1UX)

90150-05024-00

$5.60

12

NUT (8J2)

90179-05271-00

$7.49

13

CAP, END

8HG-78139-00-00

$7.49

14

FAIRING 2

8HG-K723A-00-00

Unavailable

15

FAIRING 3

8HG-K723B-00-00

Unavailable
