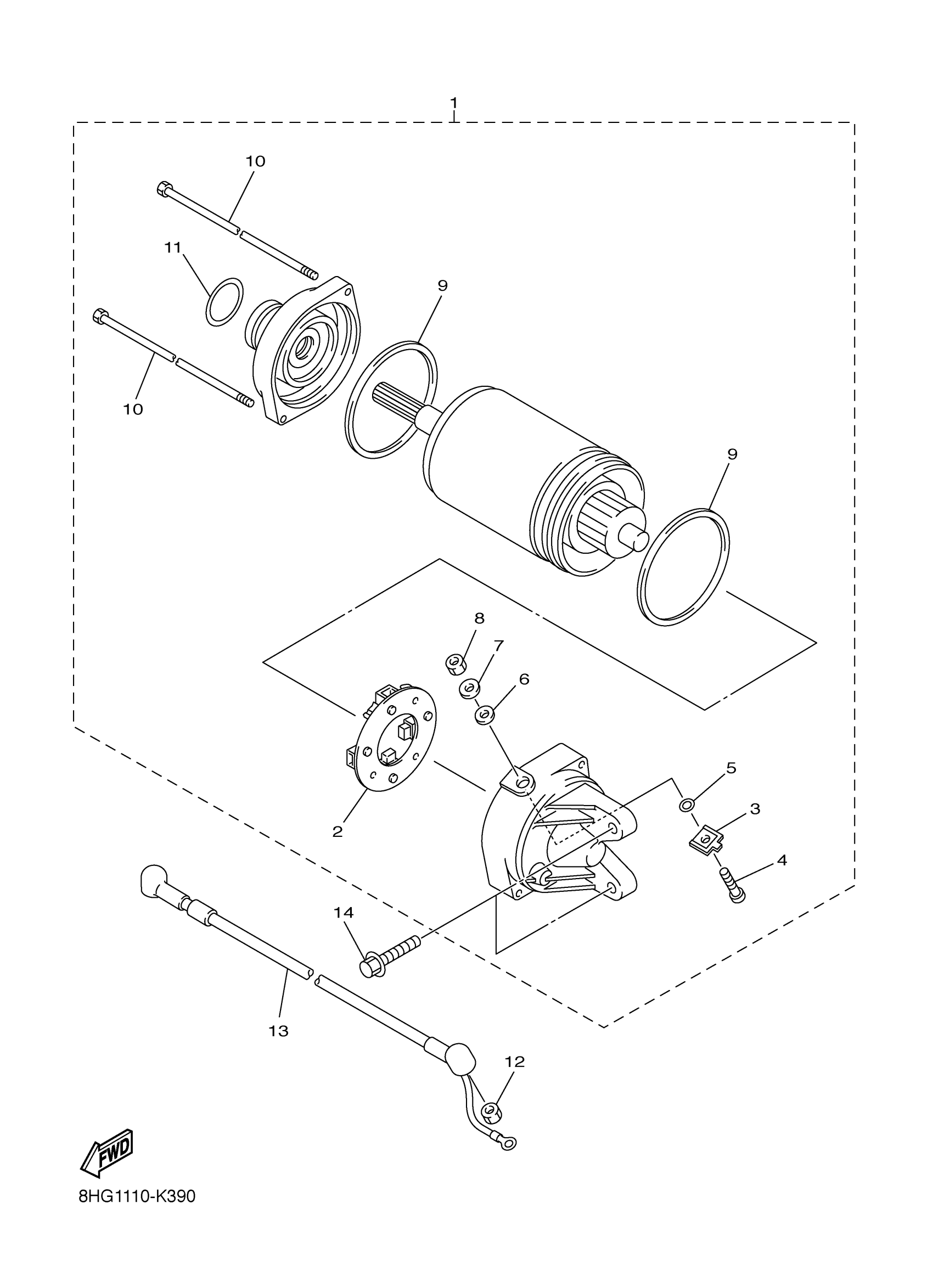

Yamaha RX10PER (APEX) 8HG50 2014 STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY

8HG-81890-00-00

$837.99

2

BRUSH SET

2S3-81801-00-00

$82.99

3

BUSH, TERMINAL

2S3-8182G-00-00

Unavailable

4

BOLT 2

2S3-81828-00-00

Unavailable

5

O-RING (26H)

93210-06632-00

$8.49

6

WASHER, PLAIN

8FA-8181L-00-00

Unavailable

7

WASHER

1D7-81835-00-00

$2.29

8

NUT(650)

95380-06700-00

$8.49

9

GASKET

5PX-81861-00-00

Unavailable

10

SCREW

8FA-81846-01-00

$7.49

11

O-RING (437)

93210-24235-00

$7.49

12

NUT(650)

95380-06700-00

$8.49

13

CORD COMP.

8FA-8183G-00-00

Unavailable

14

BOLT, FLANGE

95812-08030-00

$3.81
